40x-1000x Trinocular Medical Pathology Epi-Fluorescence Microscope

Quantity:
Contact Now
L3001
minimum order:
1 piece
Country of Origin:
Ningbo China
  • Warranty:other
  • Customized support:ODM, 10, OEM
  • Place of Origin:Zhejiang, China
  • Brand Name:microscope
  • Model Number:L3001
  • Theory:Fluorescence Microscope
  • Drawtube:Trinocular
  • Total Magnification:40X-1000X
  • Optical system:Optical System
  • Eyepiece:Wide field WF10X
  • Viewing:Trinocular Inclined
  • Objective:4X.10X.40X.100X
  • Stage:Double layer mechanical
  • Abbe Condenser:N.A.1.25
  • Light Source:6V 20W halogen lamp
  • Nosepiece:Quadruple
  • Fluorescence filter:B,G,UV,V












Product Description



40x-1000x Trinocular Medical Pathology Epi-Fluorescence Microscope



Description



L3001 is an advanced and professional Plan EPI-fluorescent microscope. It has a standard magnification range of 40X-1000X. It comes with a trinocular head, a pair of wide field eyepieces, four Plan Objectives, a double layer mechanical stage, coaxial coarse and fine focusing system, ABBE condenser, and illumination with halogen lamp, Epi-fluorescent illumination system and transmitted Illumination. This microscope is an ideal microscope for the applications in biology, medicine, immunology, oncology, genetics, histology, pathology, and materials science.



Features



• Four magnification settings, 40X, 100X, 400X, 1000X



• Equipped with B,U,UV,V four excitation filters



• Professional plan microscope



• Upright photo port for photographic/video capability



Specification













































































Eyepiece

Wide field WF10X (Φ20mm)

Objective

plan achromatic Objectives PL 4X/0.10

plan achromatic Objectives PL 10X/0.25

plan achromatic Objectives PL 40X/0.65(Spring)

plan achromatic Objectives PL 100X/1.25(Spring, oil)

Eyepiece Tube

Trinocular (Inclination of 30°)

System

Coaxial coarse/fine system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

Nosepiece

Quadruple(Backward ball bearing inner locating

Stage

Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)

Abbe Condenser

N.A.1.25 Rack & pinion adjustable

Filter

Frosted filter

Blue filter

Collector

For halogen lamp

Light Source

6V 20W halogen lamp, adjustable brightness

Reflected Fluorescence System

lamp house 100W/DC

Power supply unit:AV:110V or 220V

Fluorescence filter system B excitation wavelength:420~485nm

Fluorescence filter system G excitation wavelength:460~550nm

Fluorescence filter system UV excitation wavelength:330~400nm

Fluorescence filter system V excitation wavelength:395~415nm



Optional accessory









































































































Name

Sort/Technique parameter

Eyepiece

WF16X (FN11mm)

Dividing 10X(FN20mm),0.1mm/Div

Objectives

plan achromatic 20X/0.40

Eyepiece tube

Binocular(Inclination of 30?)

Nosepiece

Quintuple(Backward ball bearing inner locating)

Filter

Green filter

Yellow filter

Phase contrast unit

Centering telescope

phase contrast plan achromatic 10X/0.25 PHP

phase contrast plan achromatic 20X/0.40 PHP

phase contrast plan achromatic 40X/0.65 PHP(Spring)

phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

(PH-I) Turnplate phase contrast condenser

(PH-II) Turnplate phase contrast condenser

Flashboard phase contrast condenser

Pull board phase contrast condenser

CCD adapter

0.4X

0.5X

1X

0.5X with dividing 0.1mm/Div

Camera

With USB & video output

With USB output

With video output

Digital camera adapter

Digital adapter

Optional Camera

USB CMOS Cameras,please click here

USB CCD Cameras ,please click here

Photograph unit

2.5X/4X Change over photograph attachment with 10X viewing eyepiece

4X Focusing photograph attachment

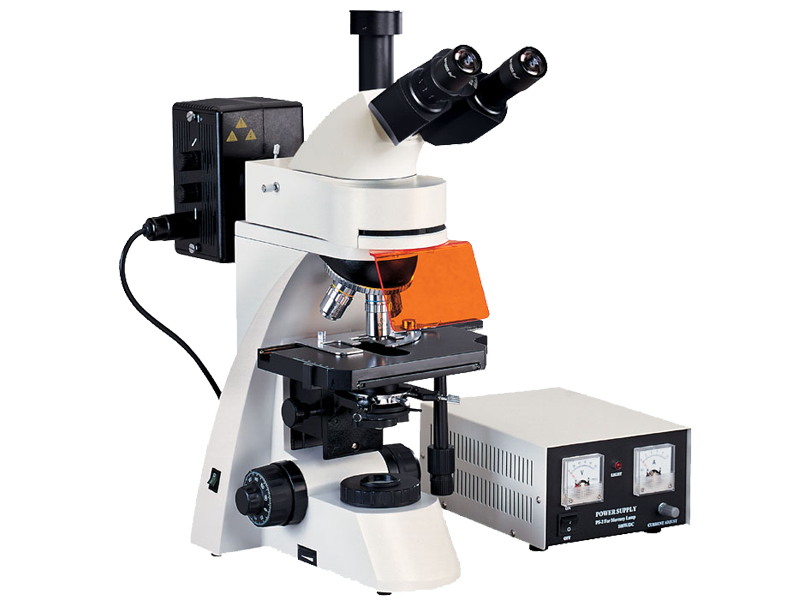

Product Show
