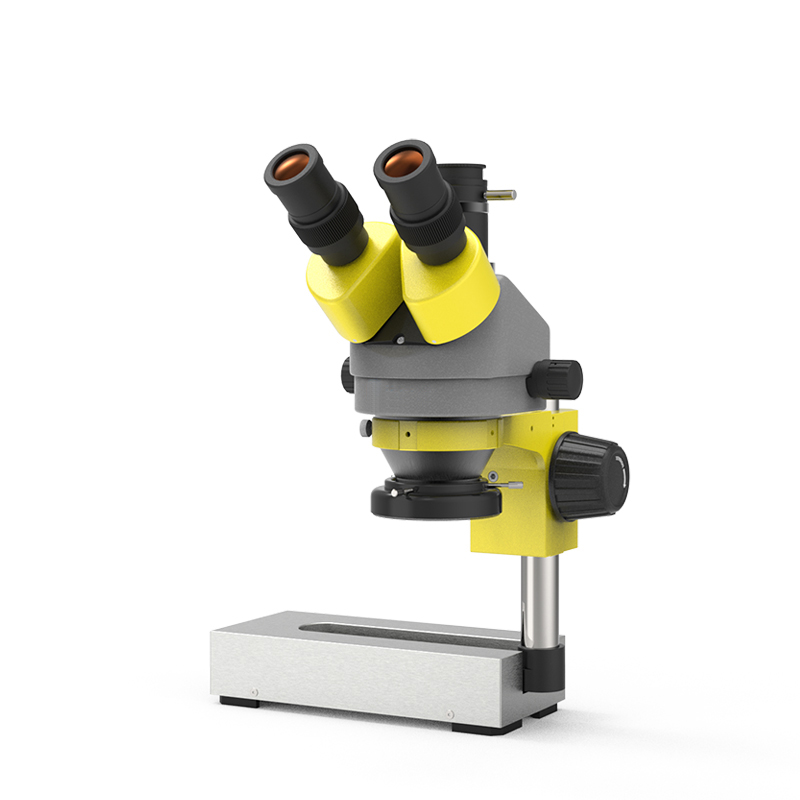

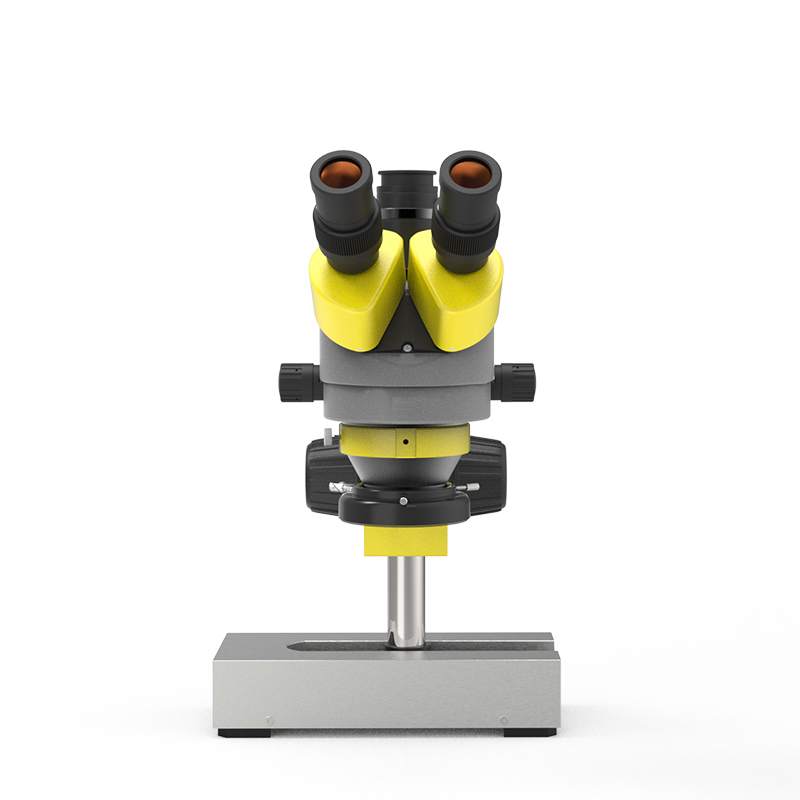

VS0745T-K20EH Magnification 3.5X-225X Stereoscopic Trinocular Microscope stereo microscope Industrial microscope

    Quantity:
    Contact Now
    VS0745T-K20EH
    minimum order:
    1 piece
    Country of Origin:
    Ningbo or Shanghai
    • Warranty:1 year
    • Customized support:OEM, ODM, OBM
    • Place of Origin:Zhejiang, China
    • Brand Name:Vanco
    • Model Number:VS0745T-K20EH
    • Theory:Stereo Microscope
    • Drawtube:Trinocular
    • Magnification:3.5X-225X
    • Eyepiece:WF10X/20mm
    • Objective:0.7X-4.5X
    • Application:Industrial Inspection
    • Viewing head:Trinocular Head
    • Product name:VS0745T-K20EH
    Product Information


    Eyepiece
    Standard
    Auxiliary Lens 0.5X
    Auxiliary Lens 1.5X
    Auxiliary Lens 2X
    W.D. 100mm
    W.D. 165mm
    W.D. 45mm
    W.D. 30mm
    Mag.
    F.O.V
    Mag.
    F.O.V
    Mag.
    F.O.V
    Mag.
    F.O.V
    10X/20mm
    7.0X
    28.6mm
    3.5X
    57.1mm
    10.5X
    19mm
    14.0X
    14.3mm
    45.0X
    4.4mm
    22.5X
    8.9mm
    67.5X
    3mm
    90.0X
    2.2mm
    15X/15mm
    10.5X
    21.1mm
    5.25X
    42.8mm
    15.75X
    14.3mm
    21.0X
    10.7mm
    67.5X
    3.3mm
    33.75X
    6.7mm
    101.25X
    2.2mm
    135.0X
    1.7mm
    20X/10mm
    14.0X
    14.3mm
    7.0X
    28.6mm
    21.0X
    9.5mm
    28.0X
    7.1mm
    90.0X
    2.2mm
    45.0X
    4.4mm
    135.0X
    1.5mm
    180.0X
    1.1mm
    25X/9mm
    17.5X
    12.9mm
    8.85X
    25.4mm
    26.2X
    8.6mm
    35.0X
    6.4mm
    112.5X
    2.0mm
    56.3X
    4.0mm
    168.8X
    1.3mm
    225.0X
    1.0mm
    30X/8mm
    21.0X
    11.4mm
    10.5X
    22.9mm
    31.5X
    7.6mm
    42.0X
    5.7mm
    135.0X
    1.8mm
    67.5X
    3.6mm
    202.5X
    1.2mm
    270.0X
    0.9mm
    Magnification
    7X-45X, 3.5X-270X with optional eyepieces and objectives
    Eyepiece
    WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses

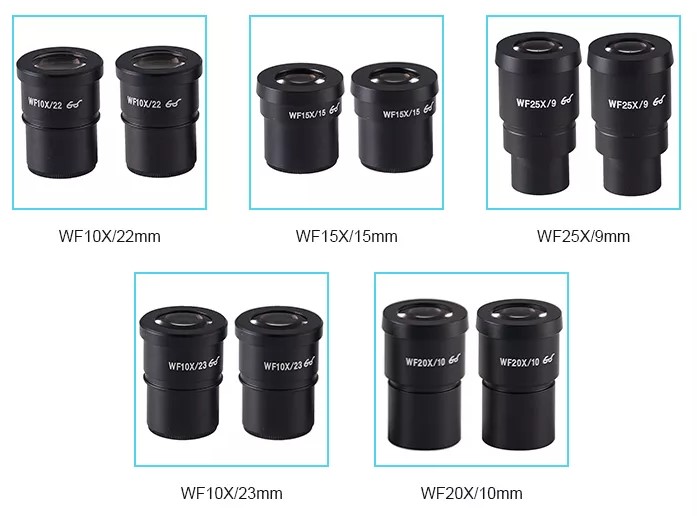

    Optional Eyepiece
    WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
    Main Body
    Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired
    Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
    Objective
    0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1

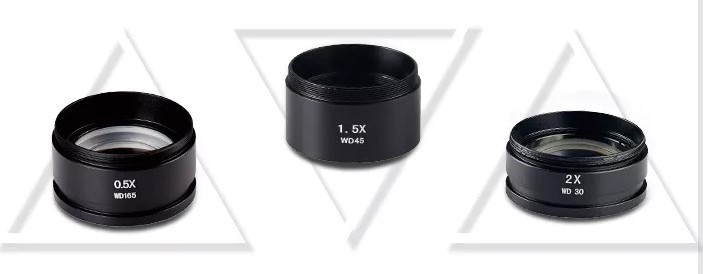

    Aux Lens
    0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
    Focusing Mount
    A1 focusing mount with vertical working distance 50mm

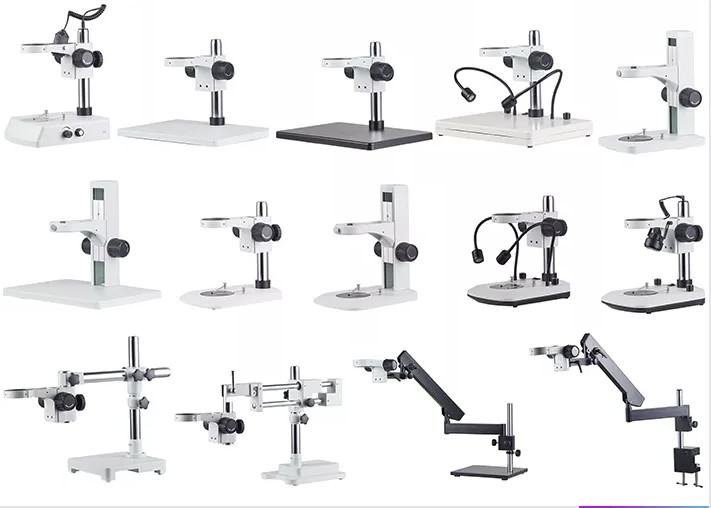

    Stand

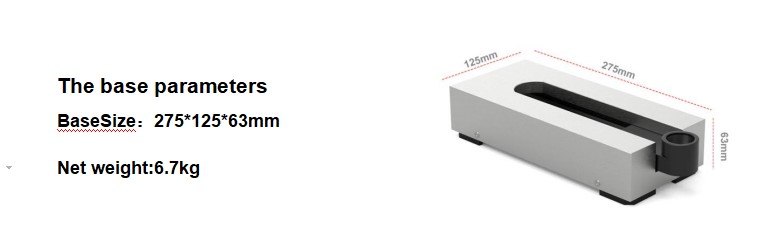

    20EH stand
    Illumination
    Fluorescent lamp, LED ring light
