Trinocular Biological Microscope
Max Magnification:100X
Specification:
Optical system | Infinity color corrected optical system |
Viewing head | 30°gemel binocular,360°rotatable,adjustable eye-point height can adapt to operators of different heights. |
.30°gemel trinocular tube,360°rotatable,spectroscopic ratio R:T=50:50or 80:20,adjustable eye-point height can adapt to operators of different heights. | |
30°gemel trinocular tube,built-in gemel digital viewing head,360°rotatable,adjustable eye-point height can adapt to operators of different heights.built-in 6.3M,12M,20M digital modules for choice,USB 3.0 output. | |
30°inclined,buit-in gemel digital head,360°rotatable,adjustable eye-point height can adapt to operators of different heights.Built-in 16M and 20M digital camera for optional,WIFI or RJ45 network port output.Supportremote full resolution photo,support Hot spot/Client mode switch,support multi-viewer. | |
Eyepiece | Wide field plan eyepiece PL10X/20mm,with reticle, diopter adjustable. |
Wide field plan eyepiece PL10/22mm,with reticle or grid plate,diopter adjustable. | |
Objective | infinity plan achromatic objective [2X、4X、10X、20X、40X、80X、100X |
Infinity plan achromatic phase contrast objective(10X、20X、40X、100X | |
Infinity semi-apochromatic fluorescence objective(4X、10X、20X、40X、100X) | |
Nosepiece | Quintuple nosepiece |
Quintuple nosepiece (Brightness memory) | |
Stage | Double layers mechanical ceramic paint stage,precision:0.1mm [X-axis rackless.Clips for double sliders,moving range 78mm×51mm. |
Condenser | N.A.1.25Koehler illuminator condenser(with socket for phase contrast and dark field accessories)with aperture diaphragm. |
single-band LED fluorescent reflection illumination system | B4TB-LED fluorescent module for TB.with intensity adjust knob.BF/FL switching knob,central wavelength 455mm. |
B1 band pass filter LED fluorescent module,with intensity adjust knob,BF/FL switching knob,central wavelength 470mm. | |
B2long pass filter LED fluorescent module,with intensity adjust knob,BF/FL switching knob,central wavelength470nm. | |
G1 band pass filter LED fluorescent module,intensity adjust knob,BF/FL switching knob,central wavelength 560nm. | |
UV4 long pass filter LED fluorescent module with intensity adjust knob, BF/FL switching knob,central wavelength 385nm. | |
illumination system | 100V-240V External transformer,3W LED with continuous intensity control.Type-c interface allows portable battery as a power source.USB port supports the microscope to charge a phone or tablet.With ECO function.The body cansupply power to fluorescent illuminator and Wi-Fi camera module. |
100V-240V External transformer,3W or 5W LED with continuous intensity control.Type-c interface allows portable battery as a power source.USB port supports the microscope to charge a phone or tablet.With ECO energy savingfunction,LCD display,objective brightness memory and color temperature adjustment function,the adjustment range:3000K-7000K.The body can supply power to fluorescent illuminator and Wi-Fi camera module. | |
Camera accessories | 0.35X,0.5X、0.65X、1×camera adapter,focusing adjustable. |
Other accessories | Frosted glass accessories.Dark-fieldaccessories, phase contrast accessories, color filter, telescope(φ30),high precision type/general type micrometer with 0.01mm scale value, |

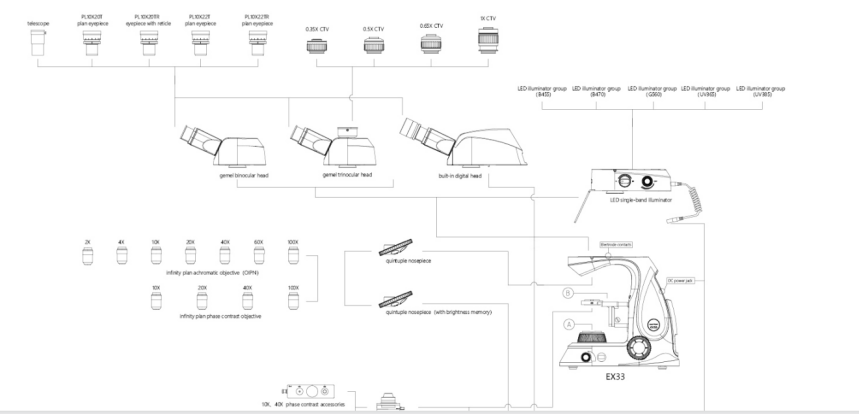

Diagram:

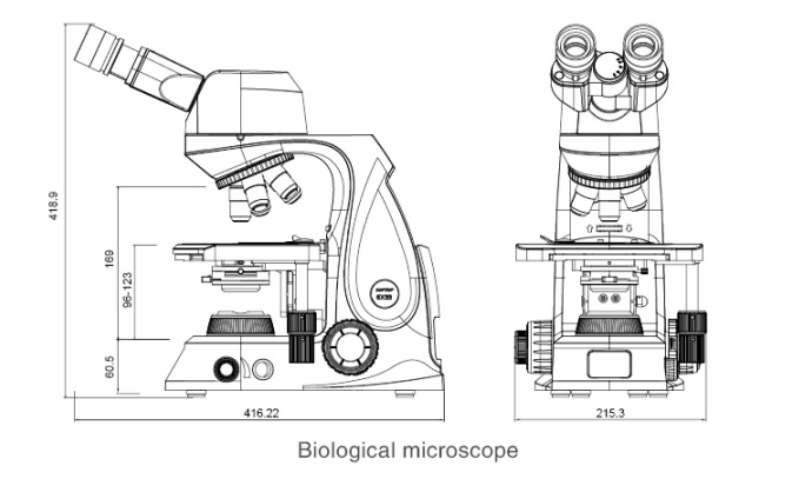

Dimension:
| Model | VB2018 |
| Optical System | Finite Color Corrected Optical System |
| Viewing Head | 30°inclined binocular viewing head; interpupillary distance: 50mm~75mm; single diopter adjustable |
| Eyepiece | High eye point wide filed WF10x/18mm, or plan eyepiece PL10X/18mm(with pointer for option) |
| Objective | Achromatic objective 4X/10X/40X/100X |
| Plan achromatic objective 4X/10X/20X/40X/100X | |
| Nosepiece | Quadruple nosepiece |
| Quintuple nosepiece | |
| Frame | Integrated design, coaxial focus system with upper limited and tension adjustment, coarse range: 28mm; fine precision: 0.002mm; provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device |
| Stage | 140mm*132mm double layers stage, moving range: 76mm*50mm, precision: 0.1mm |
| Condenser | N.A.1.25 ABBE Condenser and Iris Diaphragm |
| Illumination | Wide voltage 100V~240V, intensity adjustable by power switch, 3W LED, bulb center preset |
