Trinocular Biological Microscope
Max Magnification: 60X
Specification:
Optical System | Infnity color corrected optical system |
Head | 45°inclined trinocular head,360°rotatable; interpupillary distance 50- 75mm;spliting ratio=5:5 |
Eyepiece | High eyepoint wide field plan eyepiece PL10X/22mmdiopter adjustable, reticle available |
High eyepoint wide field plan eyepiece PL15X/16mm,diopter adjustable | |
Objective | Long working distance plan achromatic objectives 4X/10X/20X/40X/60X |
Long working distance positive phase contrast objectives 4X/10X/20X/40X | |
Long working distance plan fluorescent objectives 4X/10×/20X/40X/60X | |
Long working distance positive phase contrast and fluorescent objectives 20X/40X | |
Nosepiece | Quintuple nosepiece |
Quadruple nosepiece | |
Frame | Coaxial focus system with tension adjustment,coarse range:9mm,fine precision:0.002mm;External wide voltage transformer,input 100-240V, output 12V5A;5W LED illumination with light indicator,intensity adjustable; With Infrared sensor. |
Stage | 215mm×250mm fixed stage,mechanical stage attachable,moving range is 120mm ×80mm;Other optional attachments:extension plate,slide holder, Petri dish holder,Teraseki holder,metal plate and glass plate. |
Condenser | N.A.0.3 condenser,working distance 72mm,dismountable |
C-mount | 0.35X/0.5X/0.65X/1.0X focusing C-mount adapter |
Other Accessories | Color temperature change filter/contrast green filter/Infrared eliminate filter;Attenuat ion filter ND25/ND50;phase contrast slide |

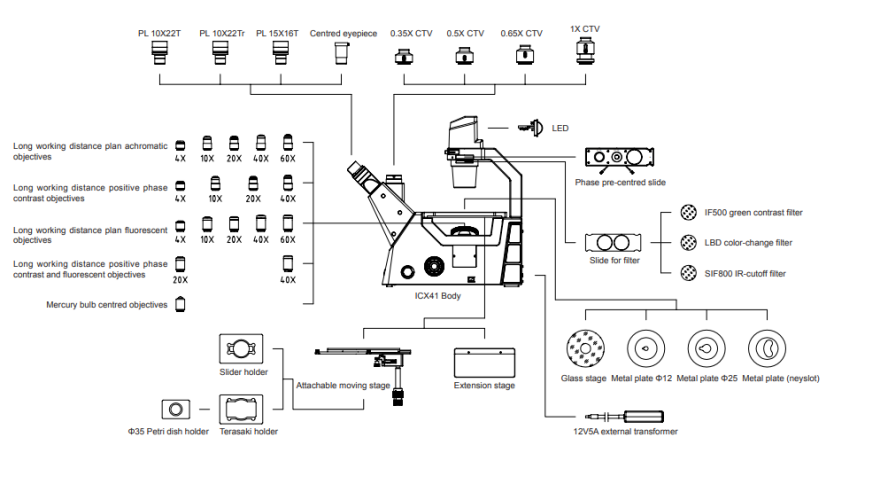

Diagram:

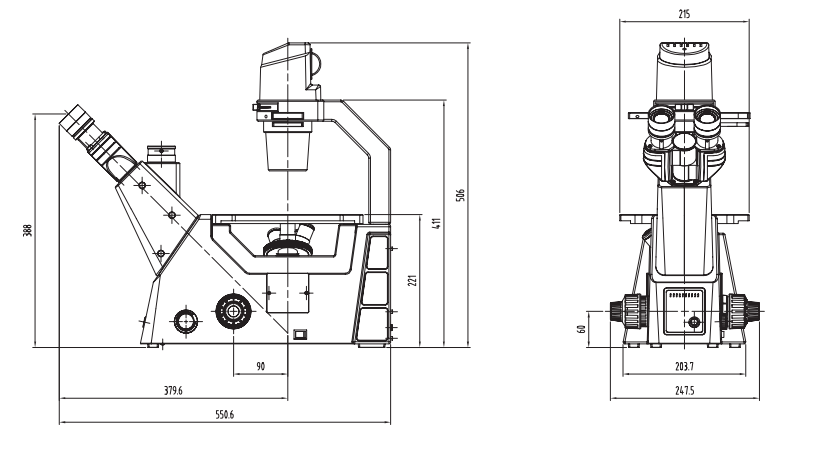

Dimension:
| Model | VB2018 |
| Optical System | Finite Color Corrected Optical System |
| Viewing Head | 30°inclined binocular viewing head; interpupillary distance: 50mm~75mm; single diopter adjustable |
| Eyepiece | High eye point wide filed WF10x/18mm, or plan eyepiece PL10X/18mm(with pointer for option) |
| Objective | Achromatic objective 4X/10X/40X/100X |
| Plan achromatic objective 4X/10X/20X/40X/100X | |
| Nosepiece | Quadruple nosepiece |
| Quintuple nosepiece | |
| Frame | Integrated design, coaxial focus system with upper limited and tension adjustment, coarse range: 28mm; fine precision: 0.002mm; provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device |
| Stage | 140mm*132mm double layers stage, moving range: 76mm*50mm, precision: 0.1mm |
| Condenser | N.A.1.25 ABBE Condenser and Iris Diaphragm |
| Illumination | Wide voltage 100V~240V, intensity adjustable by power switch, 3W LED, bulb center preset |
