Trinocular Biological Microscope
Max Magnification:100X oil
Specification:
Optical system | Infinity color corrected optical system |
Viewing head | Inverted image,30°inclined gemel trinocular head,interpupillary distance:50mm~76m splitting ratio R:T=100:0 or 20:80 or 0:100Inverted image,30°inclined gemel trinocular head,interpupillary distance:50mm~76m splitting ratio R:T=100:0 or 20:80 or 0:100 |
Erect image,30°inclined gemel trinocular head,interpupillary distance:50mm~76mm splitting ratio R:T=100:0 or 0:100 | |
Inverted image,5-35 degree tilting head, interpupillary distance:50mm-76mm;spitting ratio R:T=50:50 or 100:0 or 0:100 | |
Eyepiece | High eyepoint wide field plan eyepiece PL10X25mm,diopter adjustable |
High eyepoint wide field plan eyepiece PL10X25mm,with reticle, diopter adjustable | |
Objective | Plan achromatic objectives(2X、4X、10X、20X、40X、60X、100XOIL) |
Plan semi-apochromatic fluorescent objectives(4X、10X、20X、40X、100XOIL) | |
Plan apochromatic objectives(2X、4X、10X、20X、40X、60X、60XOIL、100XOIL) | |
Upright plan apochromatic phase contrast objectives(4X、10X、20X、40X、60X、100XOL) | |
Nosepiece (with DIC slot) | Quintuple nosepiece |
Sextuple nosepiece,is able to be updated to memory the brightness | |
Septuple nosepiece | |
Frame | Biological frame (transmitted).low-position coaxial coarse and fine adjustment,coarse adjustment distance:25mm;fine precision:0.001mm.With coarse adjustment stop and tightness adjustment.Built-in 100-240V_AC50/6OHz wide voltage transformer,intensity adjustable by digital set and reset;built-in transmitted filters LBD/ND6/ND25). |
Fluorescence frame (transmitted),low-position coaxial coarse and fine adjustment,coars adjustment distance:25mm;fine precision:0.001mm.With coarse adjustment stop and lightness adjustment.Built-in 100-240VAC50/60Hz wide voltage transformer,intensity adjustable by digital set and reset;built-in transmitted filters LBDND6/ND25). | |
Stage | Double layers mechanical stage,size:187mm X166mm;moving range:80mm X55mm; precision:0.1mm;two-way linear drive,tension adjustable |
Condenser | Swing-out type achromatic condenser (N.A.0.9 |
Multi-functional condenser with built-in polarizer,is available to attach phase contrast/dark field/DIC accessory | |
Reflected fluorescence illuminator | Sextuple reflected fluorescence illuminator with iris field diaphragm and aperture diaphragm central adjustable;with filter slot and polarizing slot;with fluorescence filter (UV/B/G for option） |
100W mercury lamp house,filament center and focus adjustable;with reflected mirror, mirror center and focus adjustable. | |
Transmitted illuminator | Imported OSRAM 100W mercury lamp. |
12V/100W halogen lamp house for transmitted light,center pre-set, intensity adjustable | |
Other accessories | Camera adapter:0.35/0.5X/0.65X/1Xfocusing C-mount;Cooling CCD camera,Centering objective for fluorescence observation;Professional software for fluorescence analysis; High precision micrometer,scale value 0.01mm |

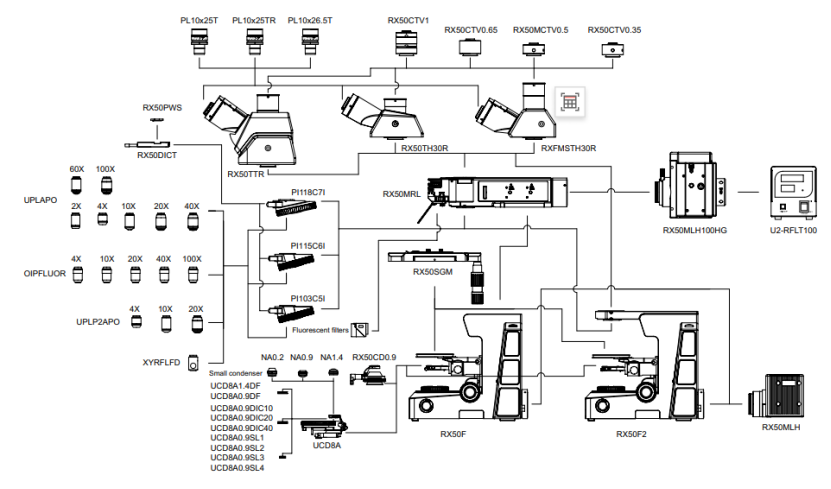

Diagram:

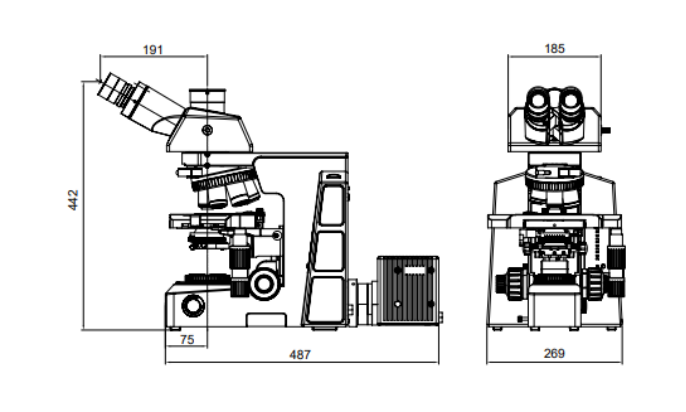

Dimension:
