Trinocular Biological Microscope
Max Magnification:100X oil
Specification:
Optical system | Infinity color corrected optical system |
Viewing head | 30°inclined,inverted image,infinity-corrected triple observation head with hinge,interpupillary distance adjustable range:50-76mm, three-step split ratio,binocular:trinocular=0:100;20:80;100:0. |
Eyepiece | High eyepoint wide field plan eyepiece PL10X23mm,diopter adjustable,can be equipped witha micrometer |
High eyepoint widefield plan eyepiece PL¹0×25mm,diopter adjustable,can be equipped with a single-scale crosshair reticle. | |
Objective | Infinity-Corrected Flat-Field Apochromatic Objective(4X、10X.20X、40X,60X,100XOIL |
Infinity-Corrected Flat-Field Super-Apochromatic Objective(10X、20X,40X、60XOIL、100XOL) | |
Nosepiece | Quintuple noseplece(with DIC slot) |
Frame | Compound iluminating system,integrated manual and motorized biological frame,including low-position coarse and fine coaxal focusing mechanism and automatic focusing mechanism.Manual coarse adjustment travel 15mm,fine adjustment precision 0.001mm;automatic focusing travel 3mm,repeat positioning precision<1μm.Equipped with adjustment tension device to prevent slipping and random upper limit device,continuous adjustable light intensity (including 1.3MP macro camera for scanning area positioning). |
Stage | Manual-motorized three-layer composite electric platform.Table size:260mm(X×221mm(Y),platform travel:110mm(X)×50mm(V), positioning accuracy<5um,repeat positioning accuracy<±3um,maximum speed:20mm/s. |
Condenser | Long working distance condenser with adjustable aperture diaphragm. |
Lamp room | Wide-spectrum 3W LED light chamber (color temperature:4750K-5500K),optional wide-spectrum 3W LED light chamber (color temperature:4000±100K). |
Camera | 7MPhigh-speed color scanning camera |
Software | Real-time image acquisition and image capture;supports automatic white balance,brightness adjustment,and gain adjustment; supports measurement and scale,annotation,and export of measurement data;supports PC software control of microscope electric functions (XYZ axes);supports automatic focusing:supports stitching of areas up to 50mm(X)×25mm(V)in size. |
Other | Scanning speed:3 minutes(20X,15*15),wide voltage adapter,PC,and monitor. |

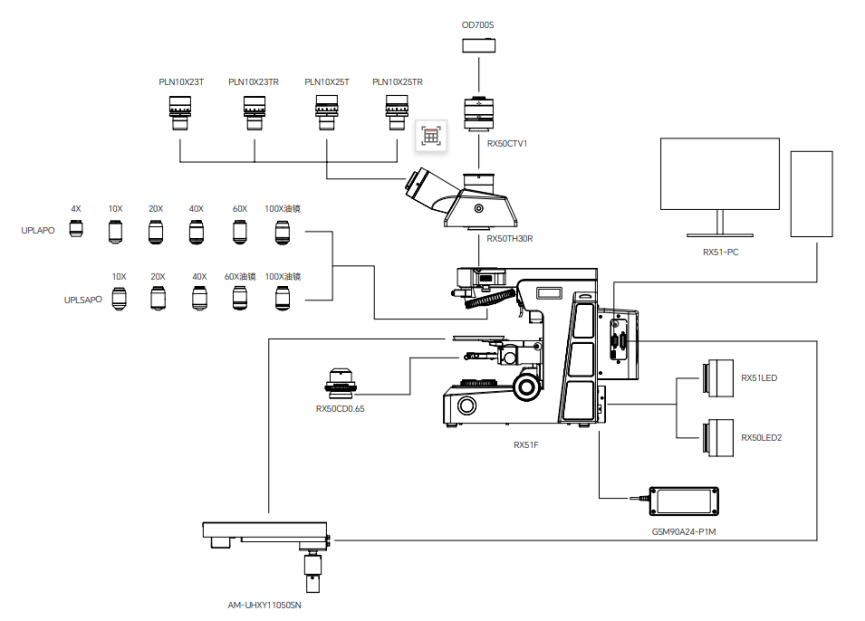

Diagram:

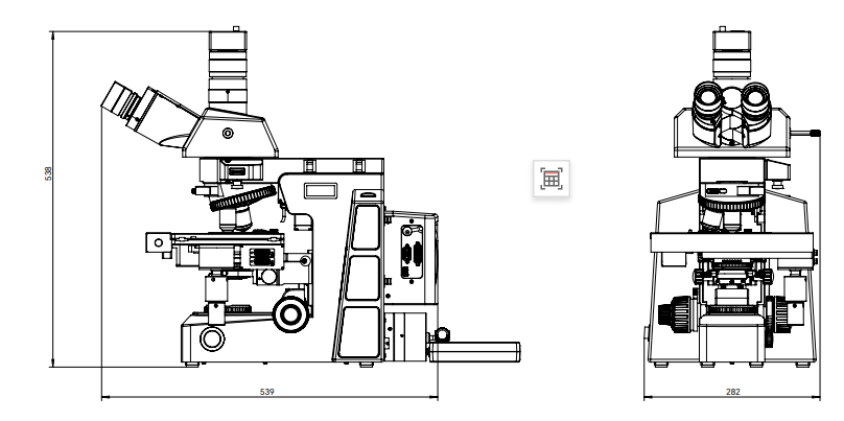

Dimension:
