VB-2021 40X-100X Biological Microscope

    Quantity:
    Contact Now
    VB-2021
    Finite Color Corrected Optical System
    Eyepiece: WF10x/18mm
    minimum order:
    1 piece
    This series microscope is a high precision instrument newlydesigned and produced by our company.It is specially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology
    Product Information:


    Model

    VB2021

    Optical System

    Finite Color Corrected Optical System

    Viewing Head

    30°inclined binocular viewing head; interpupillary distance: 50mm~75mm; single diopter adjustable

    Eyepiece

    High eye point wide filed WF10x/18mm, or plan eyepiece PL10X/18mm(with pointer for option)

    Objective

    Achromatic objective 4X/10X/40X/100X

    Plan achromatic objective 4X/10X/20X/40X/100X

    Nosepiece

    Quadruple nosepiece

    Frame

    Integrated design, coaxial focus system with upper limited and tension adjustment, coarse range: 8mm; fine precision: 0.004mm; provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device

    Stage

    115mm x 125mm double layers stage

    Condenser

    N.A.1.25 ABBE Condenser and Iris Diaphragm

    Illumination

    Wide voltage 100V~240V, intensity adjustable by power switch, output 5V 1A, Type-C port




    Company Profile

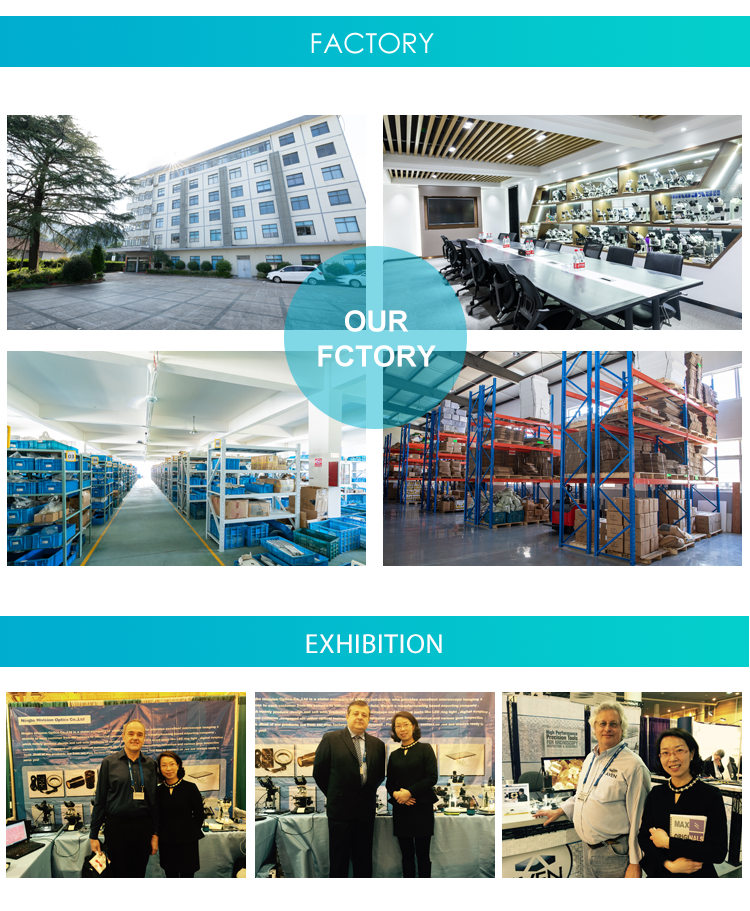

    Factory


    Our Certificate


    Transport&Payment


    FAQ

    .
    FAQ
    1. who are we?
    We are based in Ningbo Zhejiang, China, start from 2011,sell toNorth America(15.00%),South America(10.00%),MidEast(5%),Africa
    （5%）Europe(40%),Eastern Asia(5%),South Asia(15%),Southeast Asia(10%）

    how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Microscope,Microscope Accessories,physical instrument ,gem inspection instrument , solar-energy outdoor light etc

    4. why should you buy from us not from other suppliers?
    our is a company with R&D,Manufacture,quality and Marketing Department; we mainly focus on Microscope&tool for more than 10
    years,we also accept OEM/ODM orders, We cooperate with more than 50 reliable partners for years for one-stop shopping .

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,

    Accepted Payment Currency:USD,CNY,
    Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash
    Language Spoken:English,Chinese,various language online writing is okay
