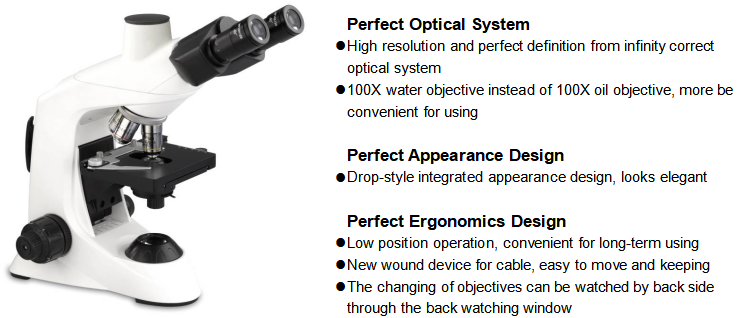

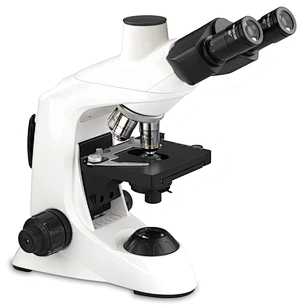

New Generation Biological Microscope for Education and Clinic 360° Rotatable head

Items

Specification

B302-1

B302-2

Main Body

●

●

Eyepiece

WF10X/20mm (High eyepoint)

●●

●●

Infinity Objective

EPLAN 4X/0.10

●

○

EPLAN 10X/0.25

●

○

EPLAN 40X/0.65(S)

●

○

EPLAN 100X/1.25(S，Oil)

●

○

PLAN 4X/0.10

○

●

PLAN 10X/0.25

○

●

PLAN 20X/0.40(S)

○

○

PLAN 40X/0.66(S)

○

●

PLAN 60X/0.80(S)

○

○

PLAN 100X/1.25(S，Oil)

○

●

PLAN 100X/1.15(S，Water)

○

○

Observing Head

Seidentopf Binocular Head, Inclined 30°,Rotatable 360°,

Interpupilary Distance: 48-75mm

●

●

Seidentopf Trinocular Head, Inclined 30°,Rotatable 360°,

Interpupilary Distance: 48-75mm

Light Distribution: 20:80

○

○

5 MP Pixel DigitalHead

1/2’’CMOS color sequential scanning. USB2.0

Light Distribution: 20:80

○

○

Nosepiece

Quadplex

●

●

Mechanical Stage

Size 145mmX140mm, Travel Range:76mmX52mm, Scale: 0.1mm, Two Slide Holder

●

●

Rackless(Integrated) stage,

Size: 140×135mm,TravelRange:75×35mm,

Two-slide holder

○

○

Abbe Condenser

N.A.1.25，With iris Diaphragm

●

●

Coaxial Coarse and Fine Focusing Knobs

Coarse Focusing Travel Range: 25mm

Fine Focusing Travel Range: 2µm/division

●

●

Aspheric Illumination

3W LED Illumination，Voltage: 100V-240V

●

●

Dark Field Unit

Dark Field Ring (Dry, N.A.0.9)

○

○

Polarizing Unit

Analyzer,Polarizer

○

○

C-mount

1×/0.75×/0.5×/0.35×C-mount（Adjustable）

○
