BDS500 Inverted Biological Microscope
Not Necessary to Change Different Objective
●Same Objective for Both Bright Field & Phase Contrast Observation
●Brand-new development for life science research

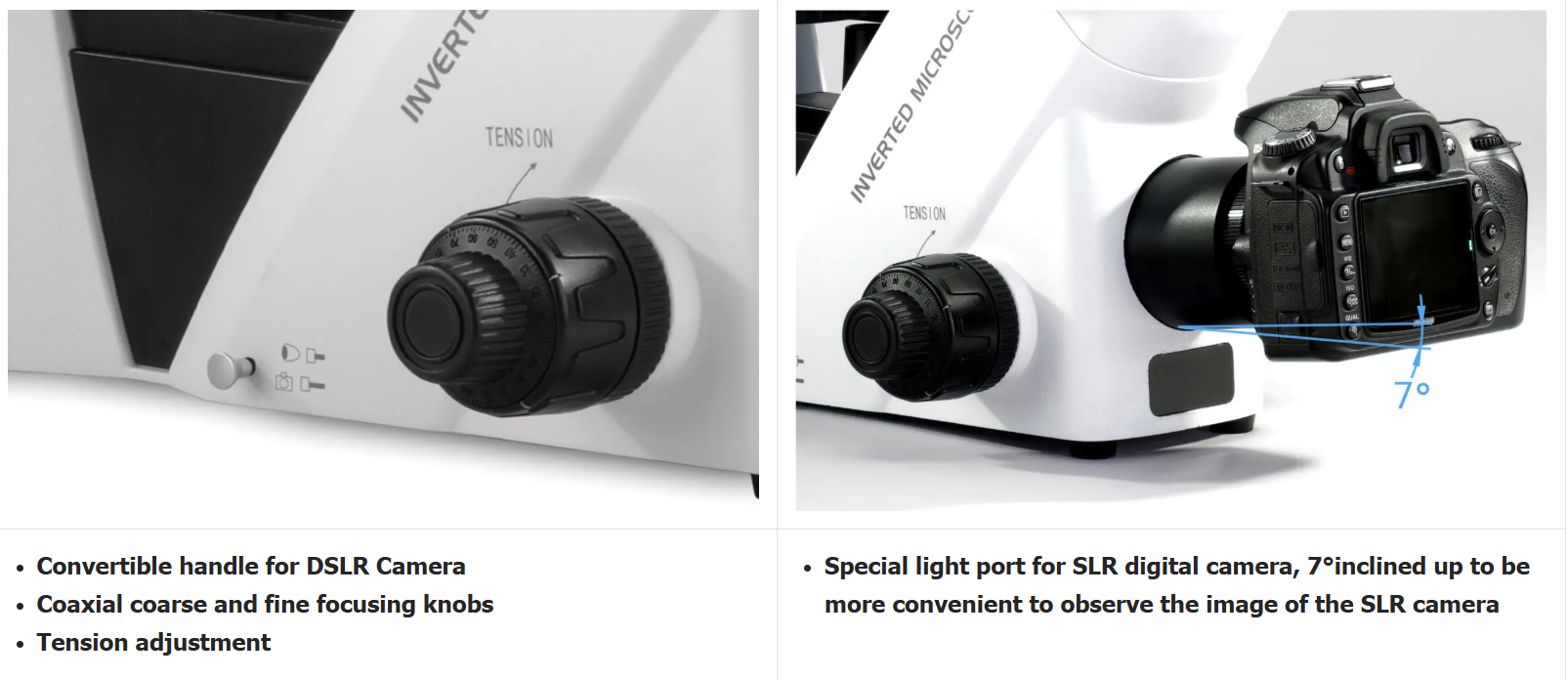

●Both light ports for digital camera and SLR photography, available for observing with digital camera and SLR photography at the same time
BDS500 Inverted Biological Microscope Outfits
Item | Specification | Outfits | |
Eyepiece | WF10X／22mm (adjustable) | ●● | |
Centering telescope | ● | ||

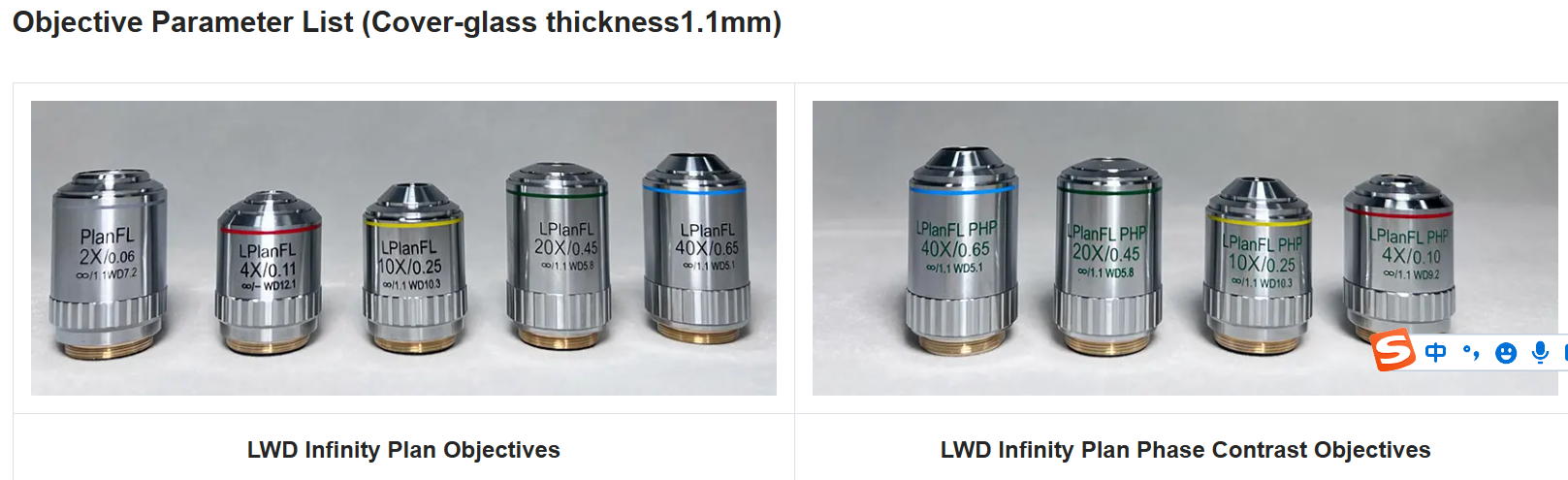

LWD Infinity Plan Objectives | Plan FL 2X／0.06 | W.D.=7.2mm | ○ |
L Plan FL 4X／0.11 | W.D.=12.1mm | ● | |
L Plan FL 10X／0.25 | W.D.=10.3mm | ○ | |
L Plan FL 20X／0.45 | W.D.=5.8mm | ○ | |
L Plan FL 40X／0.65 | W.D.=5.1mm | ○ | |
LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X／0.10 (Both for Bright Field & Phase Contrast) | W.D.=9.2mm | ○ |
L Plan FL PHP 10X／0.25 (Both for Bright Field & Phase Contrast) | W.D.=10.3mm | ● | |
L Plan FL PHP 20X／0.45 (Both for Bright Field & Phase Contrast) | W.D.=5.8mm | ● | |
L Plan FL PHP 40X／0.65 (Both for Bright Field & Phase Contrast) | W.D.=5.1mm | ● | |
LWD Infinity Plan FluorObjectives | L Plan Fluor 10x / 0.30 | W.D.=14.0mm | ○ |
L Plan Fluor 20x / 0.45 | W.D.=6.6mm | ○ | |
L Plan Fluor 40x / 0.65 | W.D.=3.9mm | ○ | |
Annular Spot | 10×/20×/ 40× | ● | |
4× | ● | ||
Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Lightdistribution (both): 100: 0 （100% for eyepiece） 80:20 (80% for trinocular head, and 20% for eyepiece) | ● | |
Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head) | ○ | |
Adaptor for Digital Photography | 100% light for Photography Port (Adaptor for CANON or NIKON SLR Digital Photography Camera) | ● | |
Nosepiece | Quintuple | ● | |
Mechanical Stage | Stagesize: X×Y 210×241mm， Round slide size：φ110mm, Attached mechanical stage(available for 96 holes plate, moving range X×Y：128×80mm.) | ● | |

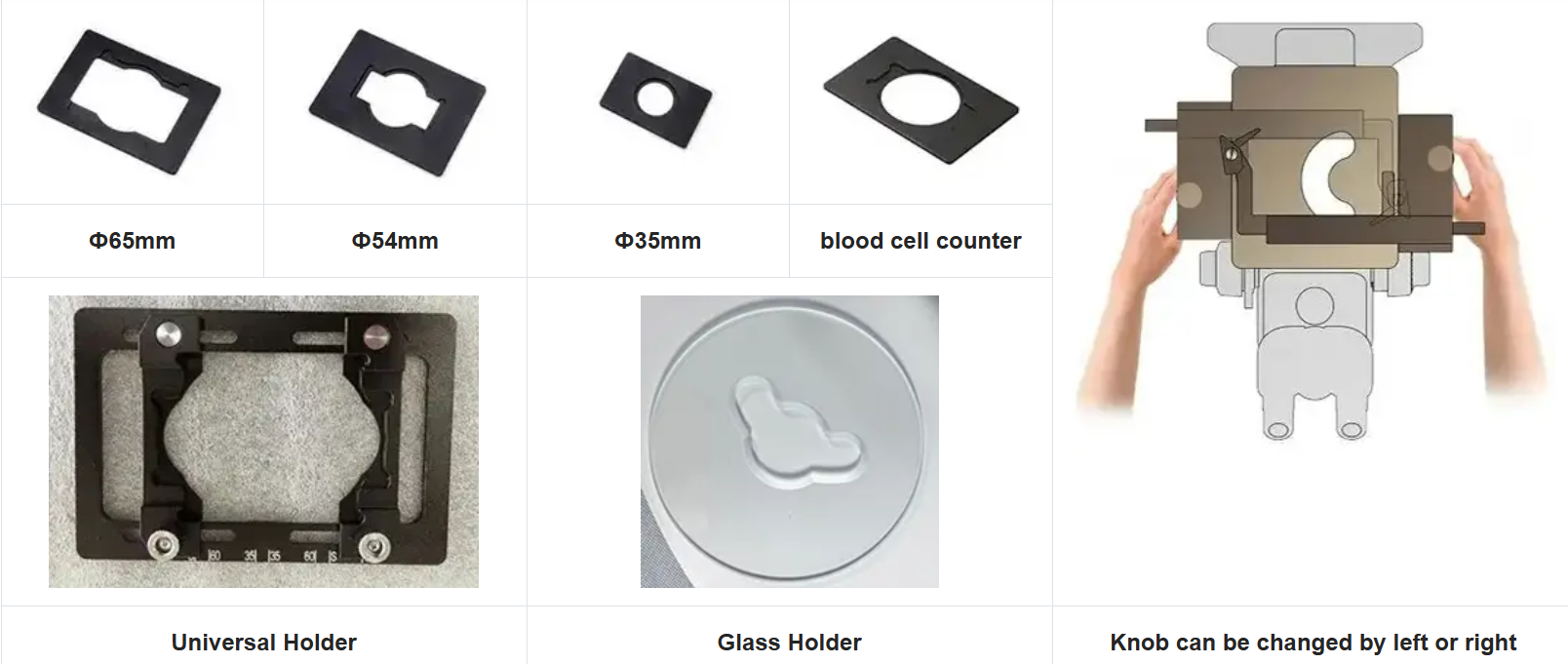

Culture Dish Holder | 65mm+35mm | ○ | |
54mm | ● | ||
blood cell counter | ○ | ||
Glass Holder | ○ | ||
Universal Holder | ○ | ||

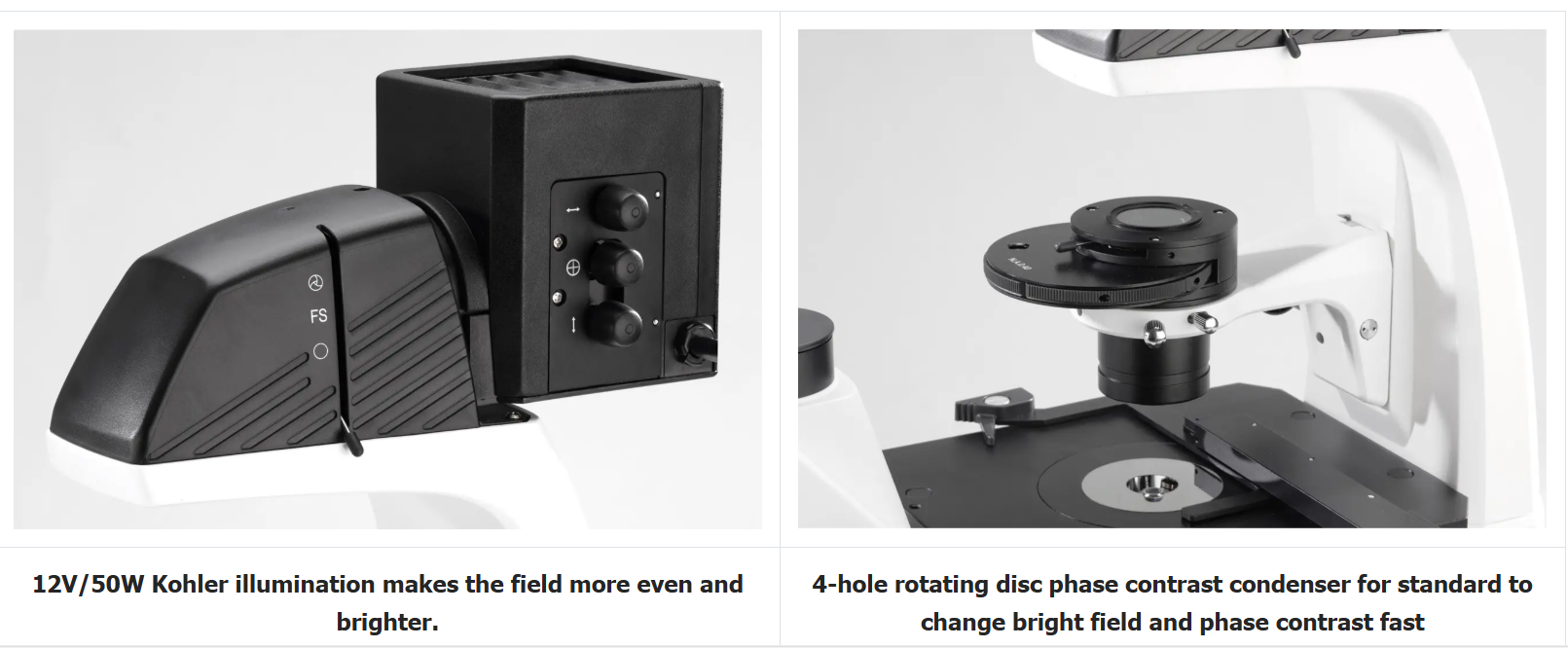

Condenser | 4-hole rotating disc phase contrast condenser N.A.0.4，W.D.45mm，It can be up-down adjusting | ● | |
Koehler Illumination | 12V/50W Halogen, input voltage：100V～240V | ● | |
5WLED，input voltage：100V～240V | ○ | ||
Filter | Blue | ● | |
Green, | ● | ||
Amber / Grey | ○ | ||
C-mount | 1 X /0.35X /0.5X /0.75X C-Mount (focus adjustable) | ○ | |

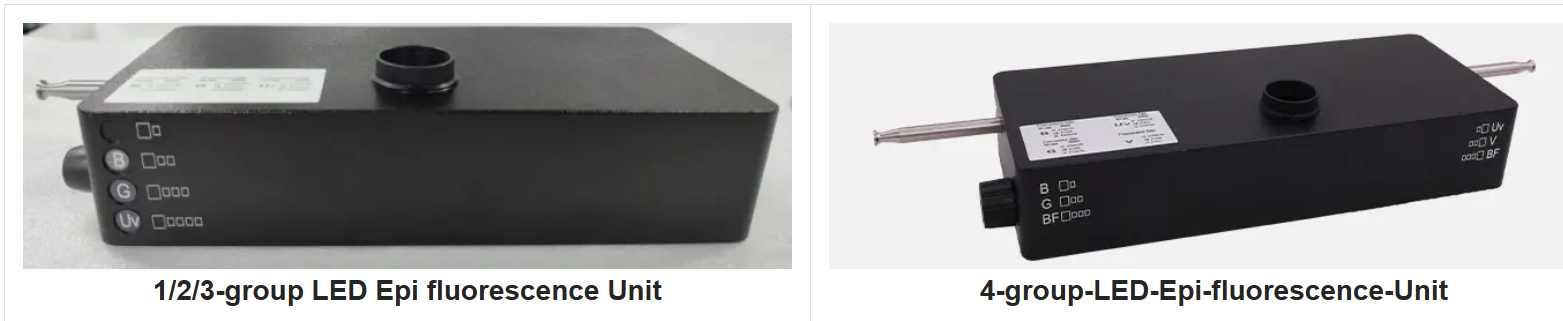

Epi fluorescenceIllumination | Epi fluorescence media unit , field diaphragm，center adjustable. | ○ | |
100W mercury lamp ,5WLED(input voltage:100V～240V) | ○ | ||
B, G, V, UV fluorescence filters can be chosen | ○ | ||
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.
Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs
