Biological Microscope

    Quantity:
    Contact Now
    E5 series
    Biological Microscope： Monocular, Binocular, Trinocular, bulit-in digital type for you option
    Max Magnification:100XS

    Specification:


    Optical system

    Finite color corrected optical system

    Viewing head

    30°inclined monocular head

    30°inclined binocular head,interpupillary distance:50-75mm,±5 diopter adjustable

    30°inclined trinocular head,splitting ratio R:T=80:20,interpupillary distance:50-75mm,±5 diopter adjustable

    30°inclined digital viewing head,built-in 3.0 mega pixels CMOS,USB output;interpupillary distance:50-75mm,±5 diopter adjustable

    Eyepiece

    Wide field plan eyepiece PL10X/18mm with/without reticle;PL10X/18mm with/without pointer

    Objective

    Achromatic objective(4X,10X40XS,100XS)

    Plan achromatic objective(4X,10X,20X,40XS,100XS)

    Nosepiece

    Quadruple nosepiece

    Frame

    Coaxial coarse and fine adjustment,with coarse adjustment stop and tightness adjustment,range:25mm,precision:0.002mm.
    3W LED,center presetting,intensity adjustable,external wide voltage AC adapter,100V-240V_AC50/60Hz input,DC7.5V 2A output.

    Coaxial coarse and fine adjustment,with coarse adjustment stop and tightness adjustment,range:25mm,precision:0.002mm.
    3W LED,center presetting,intensity adjustable,external wide voltage AC adapter,100V-240V_AC50/60Hz input,DC6V 2A output.

    Coaxial coarse and fine adjustment,with coarse adjustment stop and tightness adjustment,range:25mm,precision:0.002mm.
    3W LED,center presetting,intensity adjustable,internal switch 100V-240V_AC50/60Hz.

    Coaxial coarse and fine adjustment,with coarse adjustment stop and tightness adjustment,range:25mm,precision:0.002mm.
    3W LED,center presetting,intensity adjustable,internal 4 pieces rechargeable batteries,external wide voltage battery charger,
    100V-240V_AC50/60Hz input,DC6V 1A output.

    Stage

    132mmX140mm double layers mechanical stage,moving range:50mmX76mm,precision:0.1mm.

    Condenser

    N.A.1.25 Abbe condenser with iris diaphragm

    Others

    Filters for transmitted light:blue/yellow/green

    Camera accessories:0.35X/0.5X/1X focusing C-mount

      ltem

    Magnification

    N.A.

    W.D. (mm)

    Cover
    glass(mm)

    Parfocal
    distance(mm)

    Conjugate
    distance(mm)

    Achromatic

    objective

    4X
    10X
    40XS
    100XS(oil)

    0.10
    0.25
    0.65
    1.25

    21.30
    6.40
    0.48
    0.15

    0.17

    45

    195

    ltem

    Magnification

    N.A.

    W.D. (mm)

    Cover
    glass(mm)

    Parfocal
    distance(mm)

    Conjugate
    distance(mm)

    Plan
    achromatic
    objective

    4X
    10X
    20X
    40XS
    100XS(oil)

    0.10
    0.25
    0.40
    0.65
    1.25

    15.10
    1.50
    8.70
    0.38
    0.09

    0.17

    45

    195

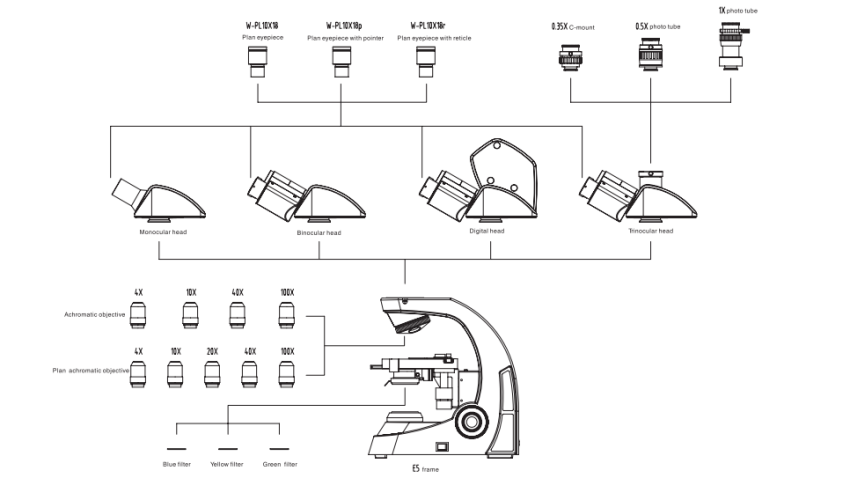

     Diagram:

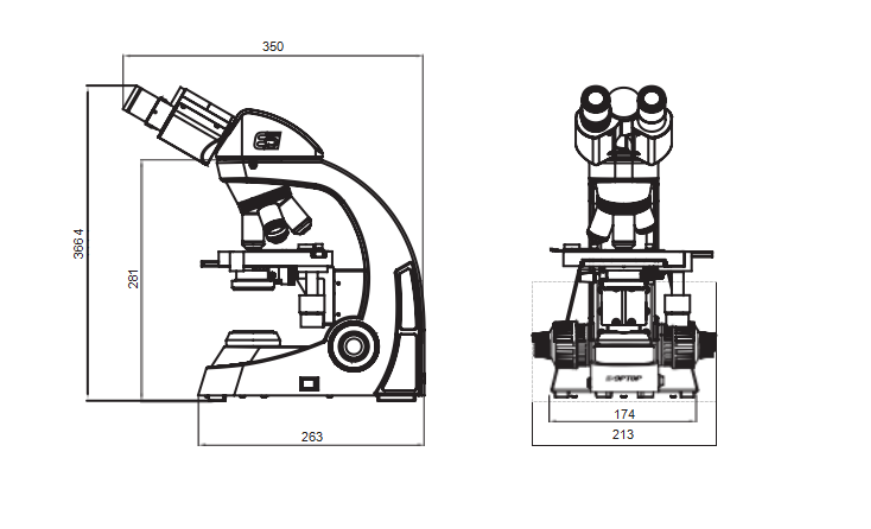

    Dimension：












































    Model



    VB2018



    Optical System



    Finite Color Corrected Optical System



    Viewing Head



    30°inclined binocular viewing head; interpupillary distance: 50mm~75mm; single diopter adjustable



    Eyepiece



    High eye point wide filed WF10x/18mm, or plan eyepiece PL10X/18mm(with pointer for option)



    Objective



    Achromatic objective 4X/10X/40X/100X





    Plan achromatic objective 4X/10X/20X/40X/100X



    Nosepiece



    Quadruple nosepiece





    Quintuple nosepiece



    Frame



    Integrated design, coaxial focus system with upper limited and tension adjustment, coarse range: 28mm; fine precision: 0.002mm; provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device



    Stage



    140mm*132mm double layers stage, moving range: 76mm*50mm, precision: 0.1mm



    Condenser



    N.A.1.25 ABBE Condenser and Iris Diaphragm



    Illumination



    Wide voltage 100V~240V, intensity adjustable by power switch, 3W LED, bulb center preset
