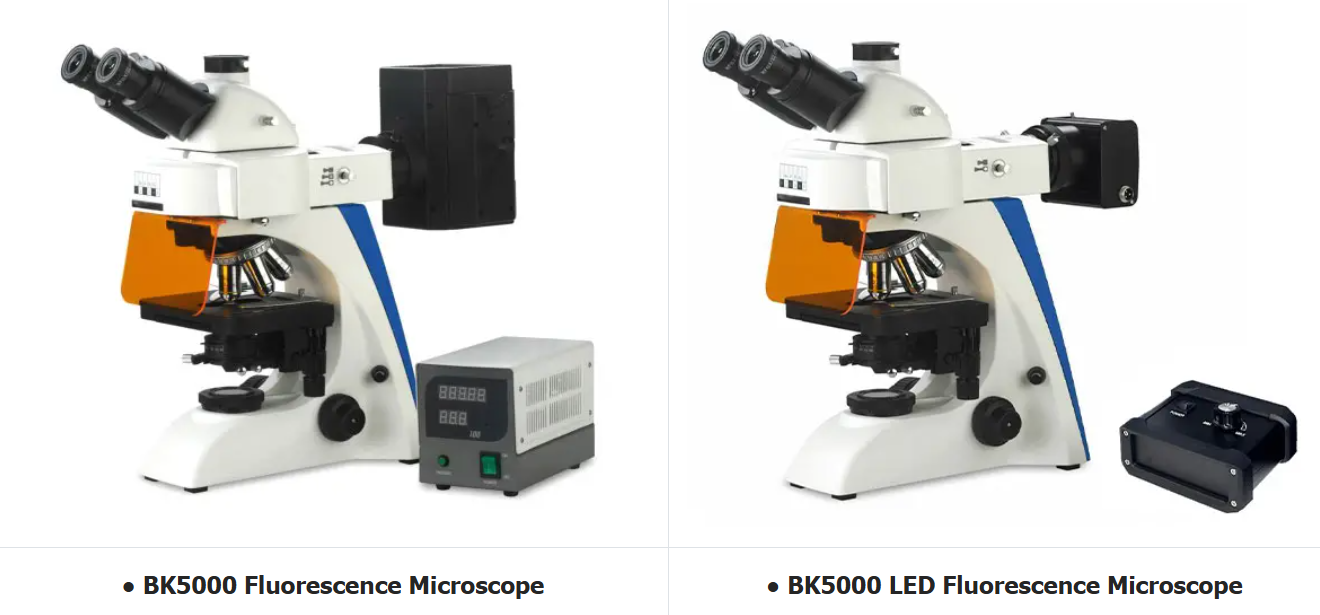

BK5000-FL 4X-100X Fluorescence Microscope

Items

Specification

Outfits

Eyepiece

WF10×／20mm (23.2mm)

●●

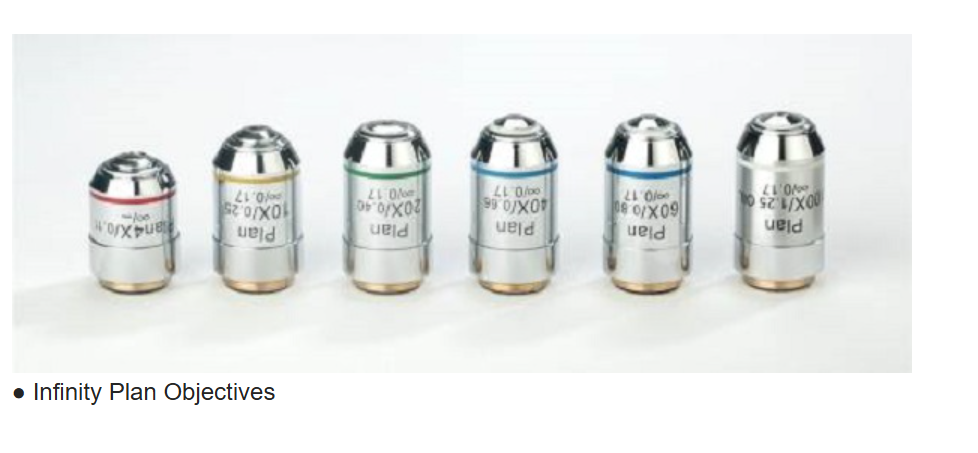

Infinity Plan Objectives

PLAN 4×／0.10

W.D.=12.10mm

●

PLAN 10×／0.25

W.D.=4.64mm

●

PLAN 20×／0.40(S)

W.D.=2.41mm

●

PLAN 40×／0.66(S)

W.D.=0.65mm

●

PLAN 100×／1.25(S, Oil)

W.D.=0.12mm

●

PLAN 2×／0.06

W.D.=7.2mm

○

PLAN 60×／0.80(S)

W.D.=0.33mm

○

PLAN 100×／1.15(S, W)

W.D.=0.19mm

○

Seidentopf Binocular Head

Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm

●

Seidentopf Trinocular Head

Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm,

Light Distribution: 100: 0 / 80:20

○

Nosepiece

Quintuple

●

Mechanical Stage

Stage Size: 175mm×145mm,Travel: 78mm×55mm
Coaxial Coarse and Fine Focusing Knobs
Two Slide Holder

●

Integrated stage

Stage size: 182 mm×140mm,Travel range: 77mm×52mm
Two-slide holder

○

Condenser

Abbe N.A. 1.25withiris diaphragm.

●

Swing OutCondenser,N.A. 0.9/0.13, with iris diaphragm.

○

Koehler Illumination

Wide voltage input: 100V～240V

Field diaphragm , center adjustable

12V/20W Halogen Lamp

○

6V/30W Halogen Lamp

○

3W-LED Illumination

●

Filter

Blue

●

Green /Amber/Grey

○

C-mount

1×/0.35×/0.5×/0.75×C-mount (focus adjustable

○

Fluorescence Attachment

Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.

○

Epi fluorescence unit ( six-hole disc mediawhich can be fixed Uv /V/B/G), 5W-LED fluorescence lamp.

○

Phase Contrast Unit

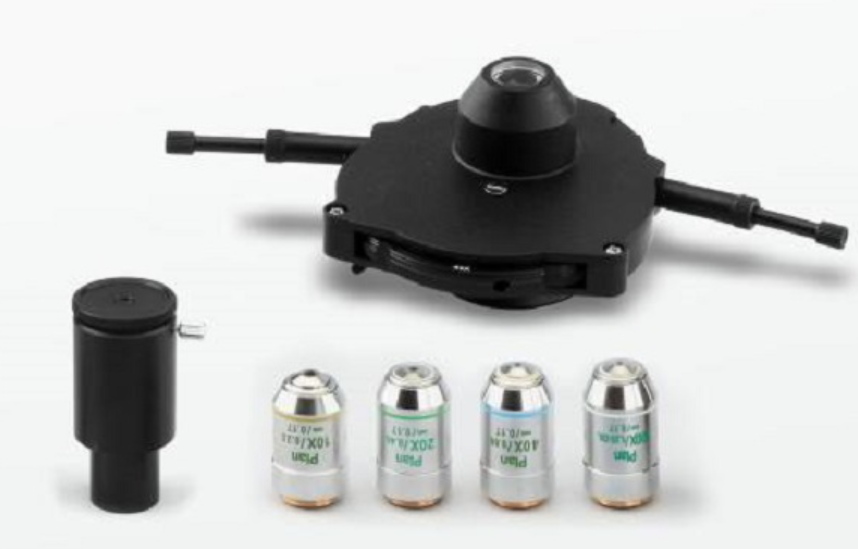

Quintuple hole turret

10×/20×/40×/100× phase contrast objective

○

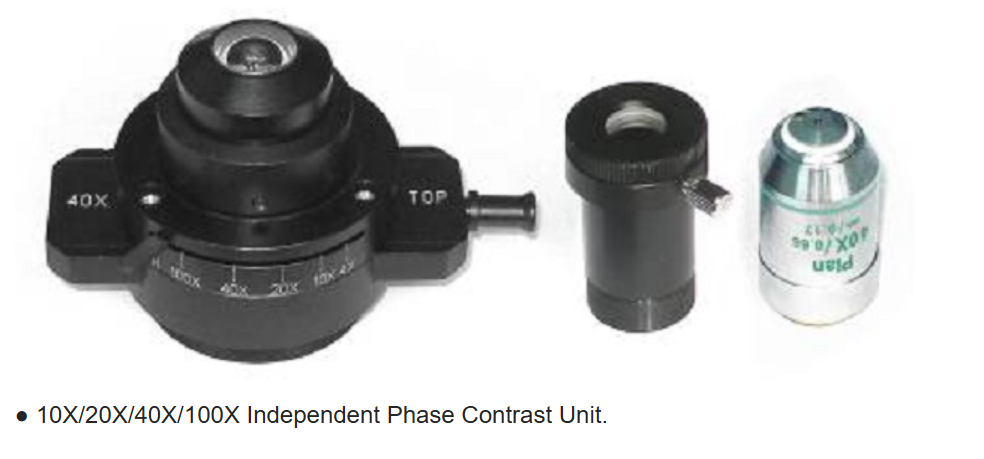

Independent slot

10×/20×/40×/100× phase contrast objective

○

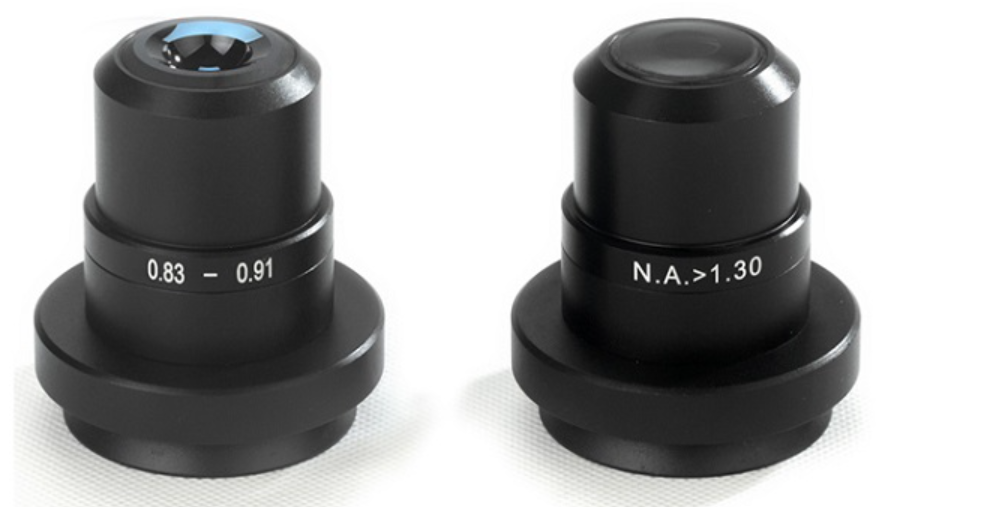

Dark Field Unit

Dark field condenser (dry)，apply to 4×- 40×objective

○

Dark field condenser (wet)，apply to 100×objective

○

Polarizing Attachment

Analyzer / Polarizer

○
