BK6000-FL Fluorescence Microscope
● Wide field eyepiece, view field up to Φ22mm，more comfortable for observation
● Trinocular observing tube with dual transform
● Light distribution (both): 100 : 0（100% for eyepiece）
80 : 20（80% for trinocular head and 20% for eyepiece）
● Integrated stage is safer than traditional stage

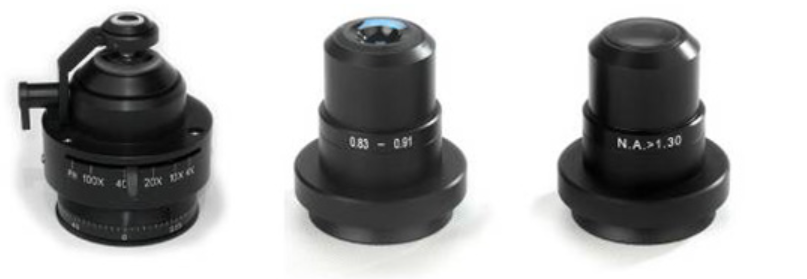

● Quintuple turret phase contrast unit with 10X/20X/40X/100X infinity plan phase contrast objective for phase
contrast and bright field observation.
● N.A.0.9/0.13 Swing-out Condenser
● Dark field condenser（dry）available to 4X-40X Objective
● Dark field condenser (wet) available to 100X Objective
BK6000 Series Biological Microscope Outfits
Items | Specification | Outfits | |
Eyepiece | WF10×／22mm (adjustable) | ●● | |
Infinity Plan Objectives | PLAN 4×／0.10 | W.D.=12.10mm | ● |
PLAN 10×／0.25 | W.D.=4.64mm | ● | |
PLAN 20×／0.40(S) | W.D.=2.41mm | ● | |
PLAN 40×／0.66(S) | W.D.=0.65mm | ● | |
PLAN 100×／1.25(S, Oil) | W.D.=0.12mm | ● | |
PLAN 2×／0.06 | W.D.=7.2mm | ○ | |
PLAN 60×／0.80(S) | W.D.=0.33mm | ○ | |
PLAN100×／1.15(S,W) | W.D.=0.19mm | ○ | |
Seidentopf Binocular Head | Inclined 30°,rotatable 360°, Interpupilary distance:48mm-76mm | ● | |
Seidentopf Trinocular Head | Inclined 30°, rotatable 360°, Interpupilary distance:48mm-76mm, 80:20（80% for trinocular head and 20% for eyepiece） | ○ | |
Nosepiece | Quintuple | ● | |
Mechanical Stage | Integrated stage Stage size: 182 mm×140mm,Travel range: 77mm×52mm | ● | |
Swing Out Condenser | N.A. 0.9/0.13, Swing out with iris diaphragm. | ● | |
Koehler Illumination | 6V/30W Halogen Lamp Wide voltage input: 100V～240V Field diaphragm , center adjustable | ● | |
Filter | Blue | ● | |
Green/Amber /Grey | ○ | ||
C-mount | 1×/0.35×/0.5×/0.75×C-mount (focus adjustable | ○ | |

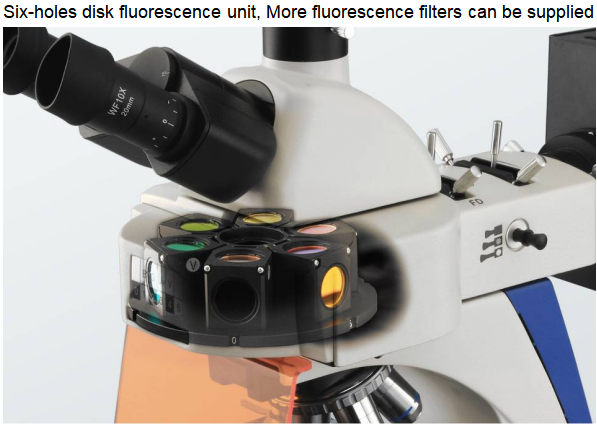

Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | |
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), LED fluorescence lamp. | ○ | ||
Phase Contrast Unit | Quintuple hole turret 10× /20× /40× /100× phase contrast objective | ○ | |
Independent slot 10× /20× /40× /100× phase contrast objective | ○ | ||
Dark Field Unit | Dark field condenser (dry)，apply to 4×- 40× objective | ○ | |
Dark field condenser (wet)，apply to 100× objective | ○ | ||

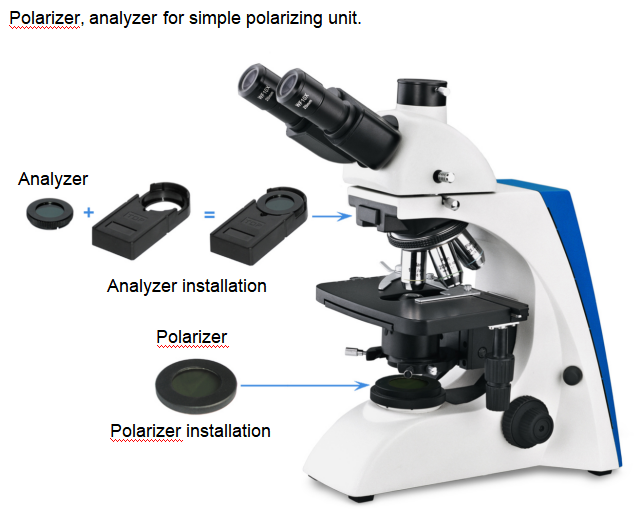

Polarizing Attachment | Analyzer / Polarizer | ○ | |
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.
Packing Size:520mm×475mm×285mm Gross Weight: 12 kgs Net Weight: 10kgs
