Led Illumination Professional Jewellery Gem Checking Microscope

    Quantity:
    Contact Now
    VS-GEM
    minimum order:
    1 piece
    Country of Origin:
    Ningbo/Shanghai
    • Warranty:2 years
    • Customized support:ODM, 10, OEM
    • Place of Origin:Zhejiang, China
    • Brand Name:VANCO
    • Model Number:VS-GEM
    • Theory:Stereo Microscope
    • Drawtube:BINOCULAR
    • Product name:jewelry microscope
    • Total magnification:6.7x~45x
    • Viewing:Binocular
    • Eyepiece:WF10X
    • Objective:0.67X-4.5X
    • Zoom Ratio:1: 6.7
    • Focusing:Coarse
    • Illumination:LED Illumination
    • Working:100mm
    • Stand:jewelry stand








    Product Description





    Led Illumination Professional Jewellery Gem Checking Microscope







    Features





    • Total Optical Magnification 6.7x~45x



    • Professional jewelry microscope stand with base rotating and inclination adjustable



    • Bright field transmit, reflect, polarizing and dark field observation



    • Fluorescent bulb or LED (top) and transmitted (bottom) illumination system



    • Fully coated optical system offering and





    Specification



















































    Observation Ways

    Bright field transmit, reflect, polarizing and dark field observation

    Binocular, 45° inclined, 360° rotatable, +/-5° diopter adjustable, interpupillary adjustment 54~75mm

    Zoom Range

    0.67x~4.5x

    Zoom Ratio

    1: 6.7

    Eyepiece

    WF10x/22mm, both with eye-cup

    Magnification

    6.7x~45x, up to 225x with auxiliary lens

    Working

    100mm, with standard 1x lens. Up to 26~287mm with auxiliary lens

    Gem Clamp

    Wire clamp for bigger objects, flat clamp for smaller objects

    Stand

    Professional jewelry microscope stand, with base rotating and inclination adjustable, with built-in dark field, polarizing device

    Illumination

    Top illumination 7w fluorescent or 1w led

    Bottom transmitted illumination 6v 30w halogen lam





    Optional Accessory












































    Items

    Specification

    Eyepiece

    WF10X/FN22, High-eyepoint, Wide Field with adjustable diopter, Dia:30mm(Micrometer mountable)

    WF15X/FN16, High-eyepoint, Dia:30mm(Micrometer mountable)

    WF20X/FN12, High-eyepoint,12mm field of view, Dia: 30mm(Micrometer mountable)

    WF25X/FN9, High-eyepoint and wide field of View, Dia:30mm.

    Objective

    0.3X, WD: 287mm

    0.4X, WD: 217mm

    0.5X, WD: 177mm

    0.75X, WD: 177mm

    1.5X, WD: 47mm

    2.0X, WD: 26mm

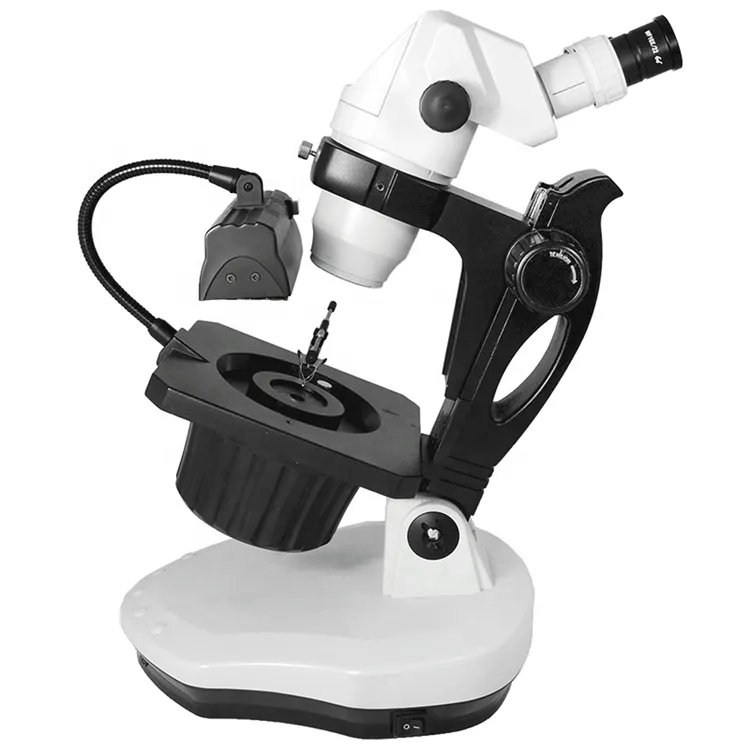

    Product Show
