VS-3C Binocular Stereo Microscope 20-40x light illumination turret step stereoscopic microscopy(BM-XT-3C LED )

    Quantity:
    Contact Now
    VS-3C
    minimum order:
    1 carton
    Country of Origin:
    Ningbo
    • Warranty:other
    • Customized support:ODM, OEM
    • Place of Origin:Zhejiang, China
    • Brand Name:VANCO
    • Model Number:VS-3C
    • Theory:Stereo Microscope
    • Drawtube:BINOCULAR
    • Total Magnification:20X~40X
    • Eyepieces:WF10X
    • Eyepieces tube:Binocular 45°Inclined Tube,with 55mm~75mm Pupils
    • Illumination:Top & bottom Light:12V/10W Haiogen Lamp
    • Coarse Adjustment Range:40mm
    • Working:57mm

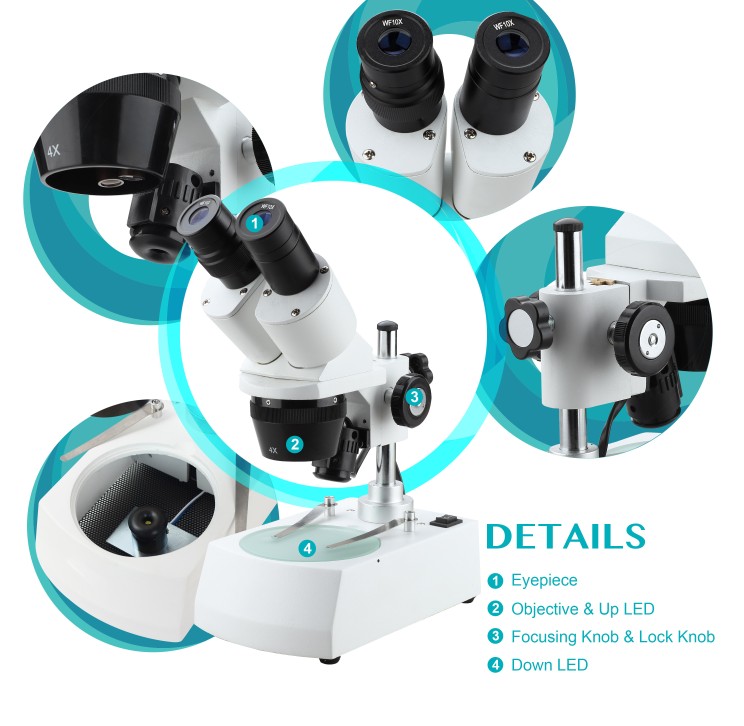

    VS-3C LED Binocular Stereo Microscope light illumination turret step stereoscopic microscopy





    Specifications:



    1.Total Magnification: 20X~40X or 10X-30X
    2.Eyepieces: WF10X
    3.Objectives: 2X 4X or 1X 3X
    4.Eyepieces tube : Binocular 45°Inclined Tube,with 55mm~75mm Pupils
    4.Illumination: Top & bottom Light:12V/10W Haiogen Lamp
    5.Coarse Adjustment Range: 40mm
    6.Working Distance: 57mm
    7.Working stage: 90mm Frosted,Glass or Black/White,Plate

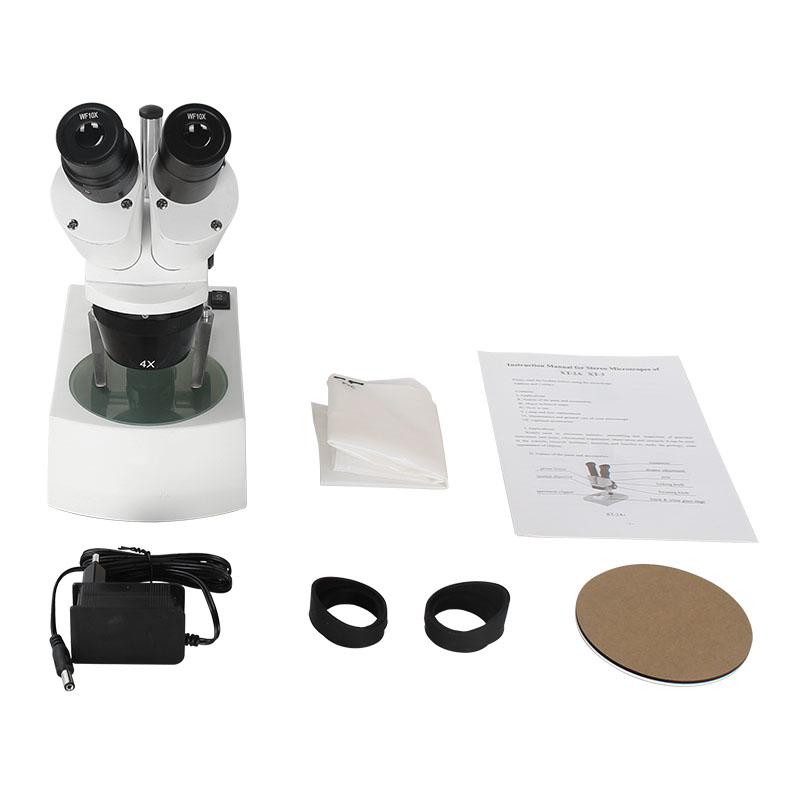

    Packing :



    2 Sets/Carton
    Size:31X29X35.5cm
    G.W.:6.5KGS



    N.W.:5.5KGS
