Trinocular Biological Microscope
Max Magnification:100X
Specification:
optical system | Infinity chromatic aberration system |
Viewing head | 30 degree binocular viewing head with fixed diopter,360 degree rotatable,interpupillary distance:50-75mm |
30 degree trinocular viewing head with fixed diopter R:T=8:2,360 degree rotatable,interpupillary distance:50- 75mm | |
30 degree trinocular viewing head with fixed diopter R:T=5:5,360 degree rotatable,interpupillary distance:50- 75mm | |
Eyepiece | High eye-point wide field plan eyepiece PL10X/20mm,diopter adjustable,with/without reticle |
High eye-point wide field plan eyepiece PL10X/22mm,diopter adjustable,with/without reticle | |
Objective | Infinity plan achromatic objectives 2X/4X/10×/20X140X/60X/100X |
Infinity plan phase contrast objectives 10X/20X140X100X | |
Infinity plan Semi-Apo fluorescence objectives 4X/10×/20X40X/100X | |
Nosepiece | Quintuple nosepiece(with memory function) |
Focusing mechanism | Low-position coarse and fine coaxial focusing structure,with tension adjustment and upper limit mechanism |
150×140mm double-layer mechanical stage,moving range:76X50mm,precision:0.1mm(triangle track) | |
Stage | 150×162mm double-layer rackless stagemoving range:76X50mm,precision:0.1mm (Xaxis linear rail) |
Condenser | N.A.1.25 Kohler illumination condenser (with slots for phase contrast,dark field),with iris diagram,center adjustable |
Transmitted illumination | 3W LED(3000K~5600K),light intensity continuously adjustable;LCD beside the frame to show the color temperature and the objective magnification |
LED reflected illumination | UV2 LED fluorescence module,light intensity adjustable,center wavelength of LED is 385nm |
B4 LED fluorescence module for professional TB test,light intensity adjustable,center wavelength of LED is 455nm | |
B1 LED fluorescence module,light intensity adjustable,center wavelength of LED is 470nm | |
G1 LED fluorescence module,light intensity adjustable,center wavelength of LED is 560nm | |
Power adapter | External power adapter,input 100V-240V,output 15V2.67A |
Camera adapter | 0.35X/0.5X/0.65X/1X focusing C-mount |
Other accessories | Dark field unit,phase contrast unit,polarizer and analyzer |

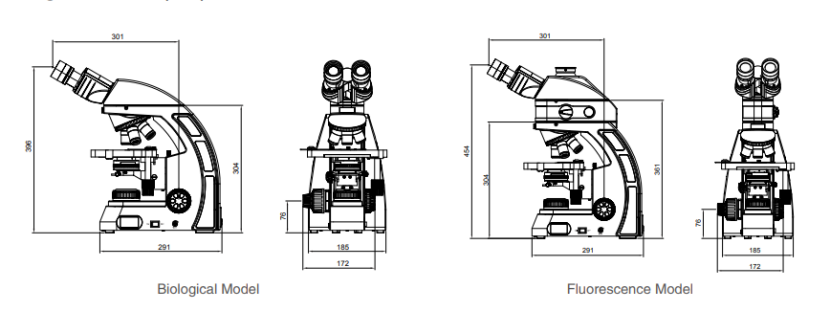

Diagram:
| Model | VB2018 |
| Optical System | Finite Color Corrected Optical System |
| Viewing Head | 30°inclined binocular viewing head; interpupillary distance: 50mm~75mm; single diopter adjustable |
| Eyepiece | High eye point wide filed WF10x/18mm, or plan eyepiece PL10X/18mm(with pointer for option) |
| Objective | Achromatic objective 4X/10X/40X/100X |
| Plan achromatic objective 4X/10X/20X/40X/100X | |
| Nosepiece | Quadruple nosepiece |
| Quintuple nosepiece | |
| Frame | Integrated design, coaxial focus system with upper limited and tension adjustment, coarse range: 28mm; fine precision: 0.002mm; provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device |
| Stage | 140mm*132mm double layers stage, moving range: 76mm*50mm, precision: 0.1mm |
| Condenser | N.A.1.25 ABBE Condenser and Iris Diaphragm |
| Illumination | Wide voltage 100V~240V, intensity adjustable by power switch, 3W LED, bulb center preset |
