Trinocular Zoom Stereo Microscope

Quantity:

Contact Now

SZN71

Adopting Greenough optical system, New designed optical path and click stop function, make it more precision and practical for inspection of electronic components and PC board in industrial field, also available for scientific research, education and antiques identification

Specification:

Viewing Head	45°inclined binocular head with fixed eyepiece tube,inter-pupillary range:52mm-76mm,with clck stop and interlock mechanism
Viewing Head	45°inclined trinocular head with fixed eyepiece tube,inter-pupillary range:52mm-76mm,with click stop and interlock mechanism
Eyepiece	High eye-point wide field plan eyepiece PL10×/22mm,with adjustable diopter
	High eye-point wide field plan eyepiece PL15X/16mm,with adjustable diopter
	High eye-point wide field plan eyepiece PL20X/12.5mm,with adjustable diopter
Main Objective	Zoom objective 0.67X-4.5X,working distance:110mm
Auxiliary Objective	0.5X/177mm,0.7X/120mm,1.5X/47mm
Stand	Arm stand with fixed focus holder
Stand	Pillar stand,can be equipped with different focus holders
Base	Plan base
Base	Base with illumination
Camera adapter	0.35X/0.5X/0.65X/1XC-mount adapter
Others	Precision measuring stage,gem clip

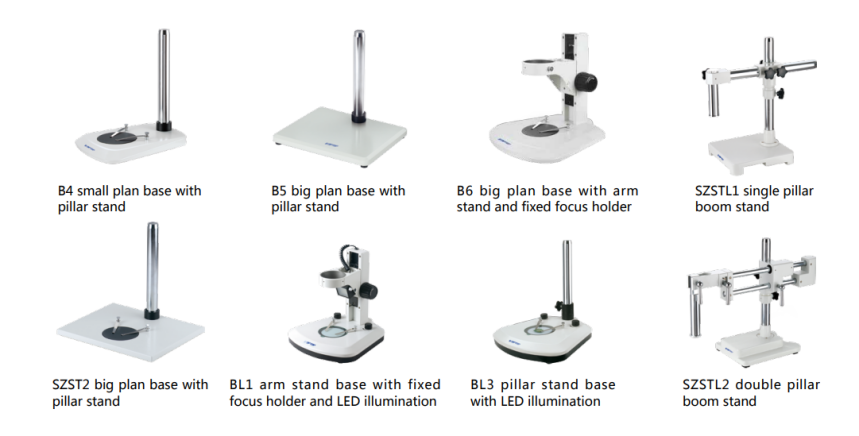

Stand for option:

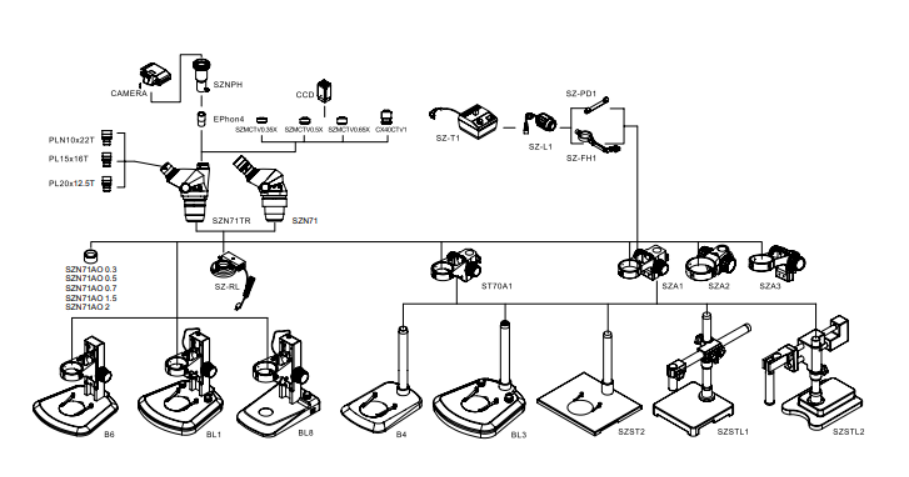

Diagram:

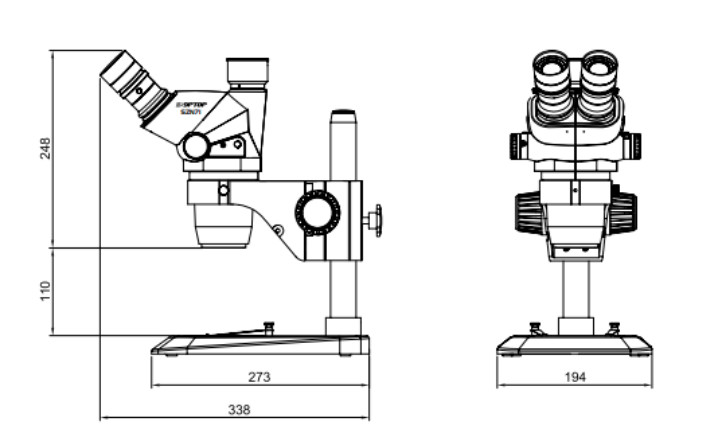

Dimension:
