USB2.0 Microscope Camera

Quantity:
Contact Now
UHD series
Multicolour CMOS
USB2.0
High resolution (see specification)
  • The UHD series camera is an ultra-high-performance USB2.0 and CMOS image sensor camera, using USB2.0 as a data transmission interface.
  • UHD series cameras greatly improve the transmission stability of USB2.0 series cameras and maximize the transmission speed of USB2.0. The camera resolution spans from 3 million to 14 million.
  • UHD series cameras provide powerful plug and play support, simple and fast operation, while bringing powerful imaging software, is your good choice in laboratory teaching, in the field of education and other fields.
  • The UHD series camera support high-speed preview, and you can easily and quickly complete the various settings for the camera. Rapid dynamic image acquisition enables the UHD series of cameras to be used in a variety of situations.

             Technical Parameter

model

UHD-3M1-ADC

UHD-5M-AAC

UHD-3M-SEC

UHD-5M-SEC

Max Resolution

2048x1536

2592X1944

2048X1536

2592X1944

Image Sensor

Multicolour CMOS

Sensor Size

1/2"

1/2.5"

1/3"

1/3"

Pixel size

3.2umx3.2um

2.2umx2.2um

2.8umx2.8um

2.8umx2.8um

Sensitivity

0.79V/lux-sec 550nm

1.0V/lux-sec 550nm

/

/

 Frame Rates

11fps

@2048x1536

30fps@102×768

45fps@ 640×480

6fps@

2592X1944

23fps @ 1024x768

27fps @ 640x480

30fps

@2048x1536

30fps

@1280x960

30fps

@ 2592X1944

30fps @1600x1200

30fps

@ 1280x960

Technical Parameter

model

UHD-3M1-ADC

UHD-5M-AAC

UHD-3M-SEC

UHD-5M-SEC

Noise-signal Ratio

61dB

70dB

/

/

Exposure Control

Automatic / Manual work

Gain Control

Automatic / Manual work

White Balance Regulation

Single Key Setting

Lens Interface

C / CS

Computer Interface

USB 2.0

Capture / Control API

SDK,Directshow,Twain

Operating System

Windows XP / Vista / 7 / 8 / 10 ( 32bits / 64bits )

Size

52*52*45mm

Weight

140g

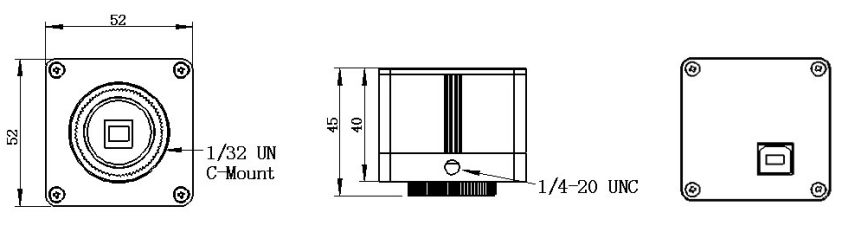

Camera Size
