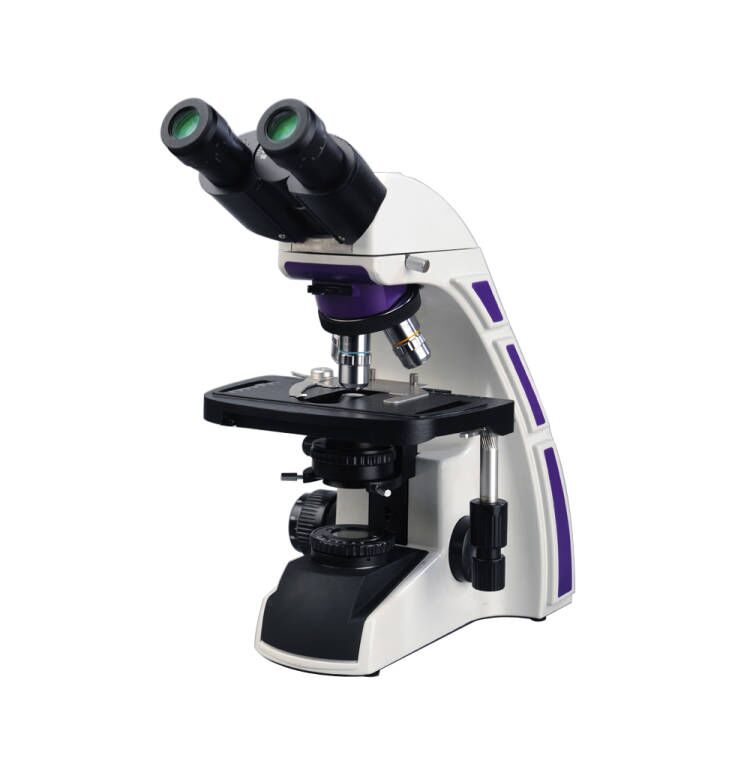

VB-2016B 40X-1000X Professional Binocular Compound Microscope has Superior optics offers crystal clear
Quantity:
VB-2016B
minimum order:
1 piece
Country of Origin:
Ningbo or Shanghai
- Warranty:1years
- Customized support:OEM, ODM, OBM
- Place of Origin:China
- Brand Name:Vanco
- Model Number:VB-2016B
- Theory:Biological Microscope
- Drawtube:BINOCULAR
- Product name:Biologicalr Microscope
- Head:Binocular Inclined 30
- Eyepiece:WF10X/22mm
- Objective:Achromatic 4X/10X/40X/100x
- Illumination:3W LED
- Stage:220X148mm
Product Information
VB-2016B
FEATURES:
The excellent appearance accord with ergonomic design
Integrated body design makes products maintain long-term stability
High quality 3W LED lamp and long time using life
finity achromatic correction optical system and common optical system can meet the different customer's requirements.
FEATURES:
The excellent appearance accord with ergonomic design
Integrated body design makes products maintain long-term stability
High quality 3W LED lamp and long time using life
finity achromatic correction optical system and common optical system can meet the different customer's requirements.
VB2016 | |
Specification: | |
Optical System | Common optical system |
View Head | Articulated Free Binocular / Trinocular Head. Inclined at 30°,360° Rotatable.(Interpupillary Distance:55-75mm) |
Eyepiece | PL 10x/23mm high eyepoint eyepiece,diopter adjustment |
Objective | achromaic objectives 4X,10X,40X,100X |
Nosepiece | Backward quardruple objective nosepiece |

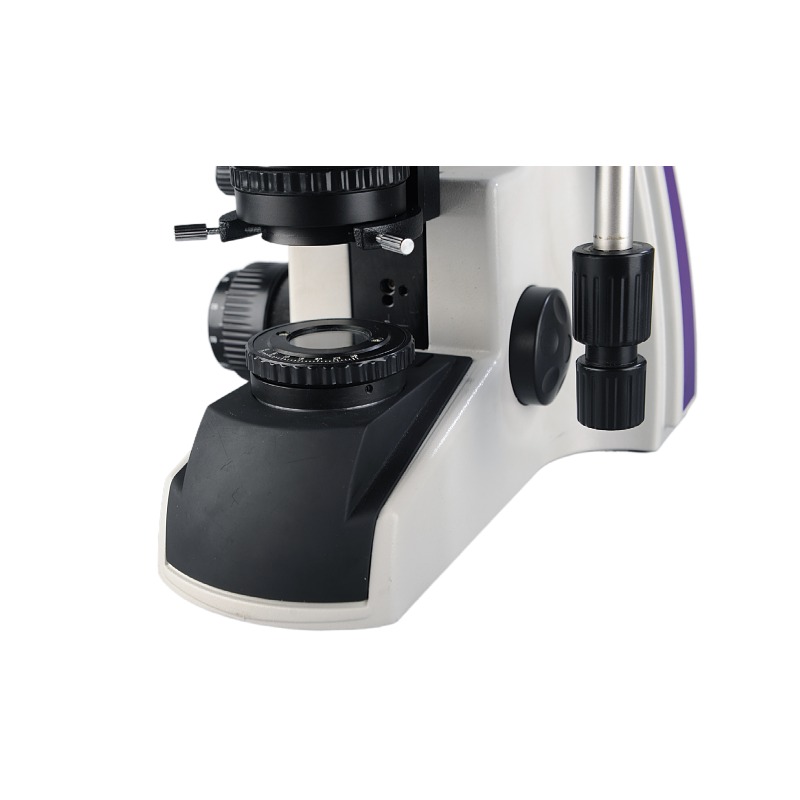

Condenser | Abbe Condenser set |

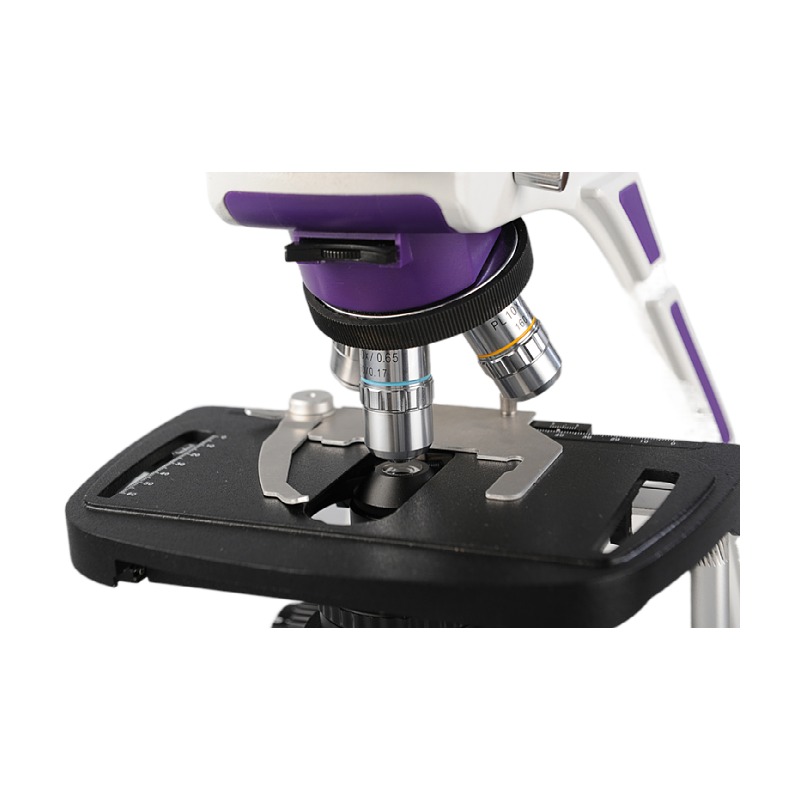

Stage | X-axis low hand position double Layers Mechanical Stage (steel wire transmission) Stage Size:220x148mm Moving Range:76x50mm Precision:0.1mm Damped double slide clamp |
Focusing | Coaxial Coarse & Fine Focus knobs Precision:0.002mm |
Illumination | 3W LED lamp with Kohler illumination system |
Optional Accessory: | |
LCD | 8''color LCD Pixels:976(H)x582(v) Color System:PAL/NTSC4.43/NTSC3.58/SECAM |
Optical System | Infinity achromatic correction optical system |
Nosepiece | Backward quintuple objective nosepiece |
Objective | 1.Achromatic objectives:40x,10x,20x,40x,60x,100x 2.Plan objectives:20x,60X 3.InfinityPlan Achromatic objectives:4X,10X,20x,40x,60X,100x |
Phase Contrast Accessory | 1.Dial phase contrast apparatus 2.Insert phase contrast apparatus |
Dark Filed Condenser | 1.Dry darkfiled condenser 2.Oil-darkfiled condenser |
Product Show

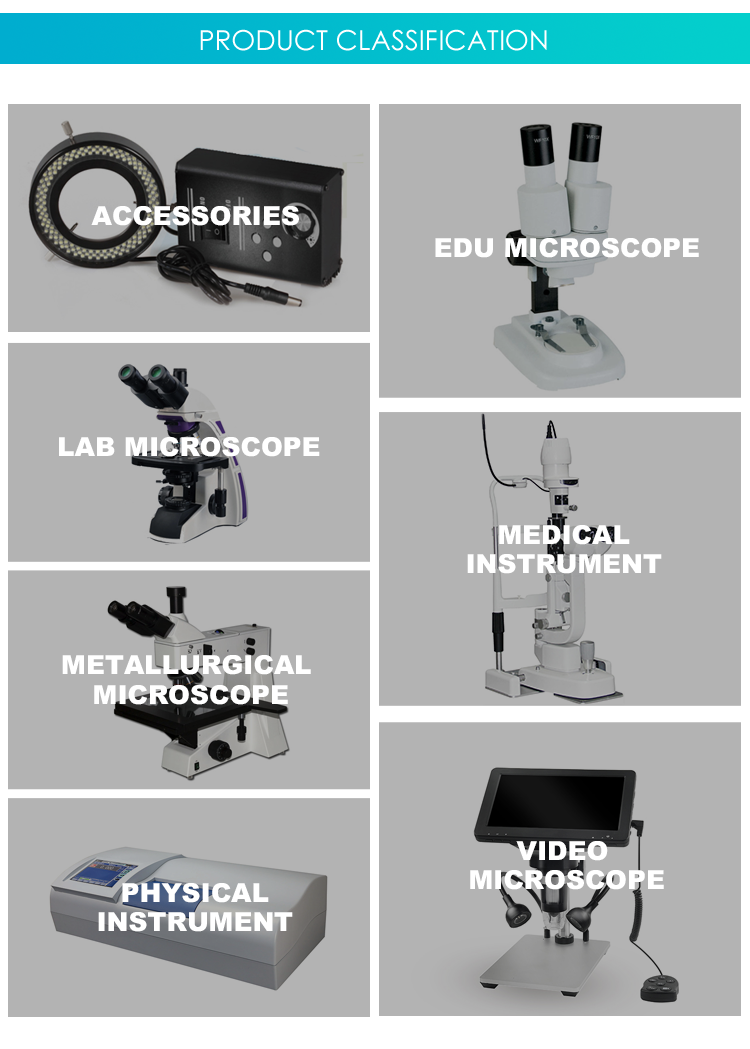

Product Classification
Company Profile

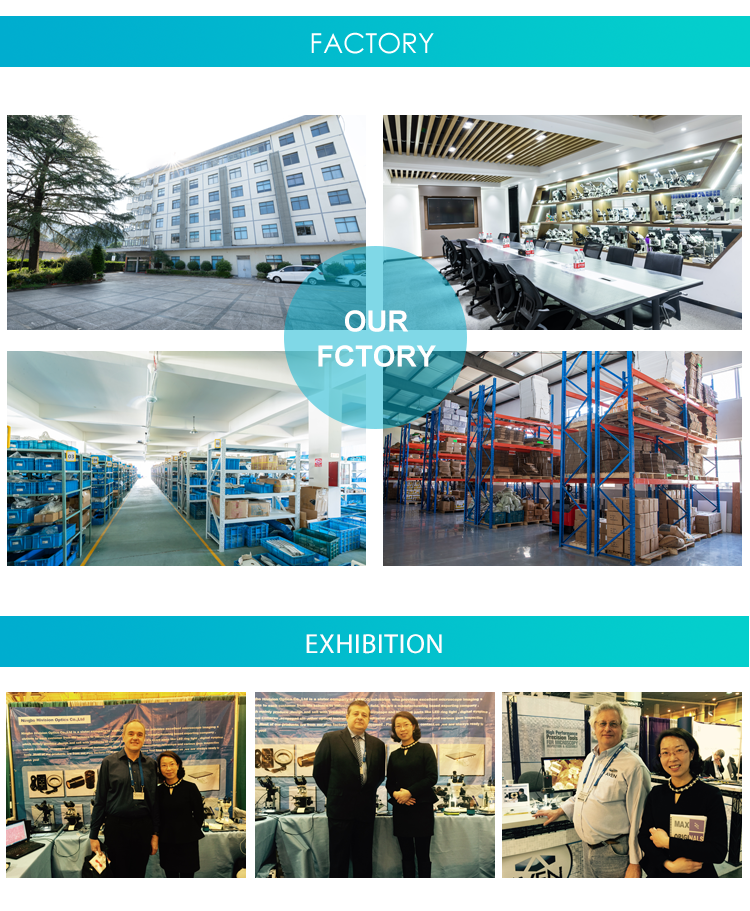

Factory
Our Certificate
Transport&Payment
FAQ
.
