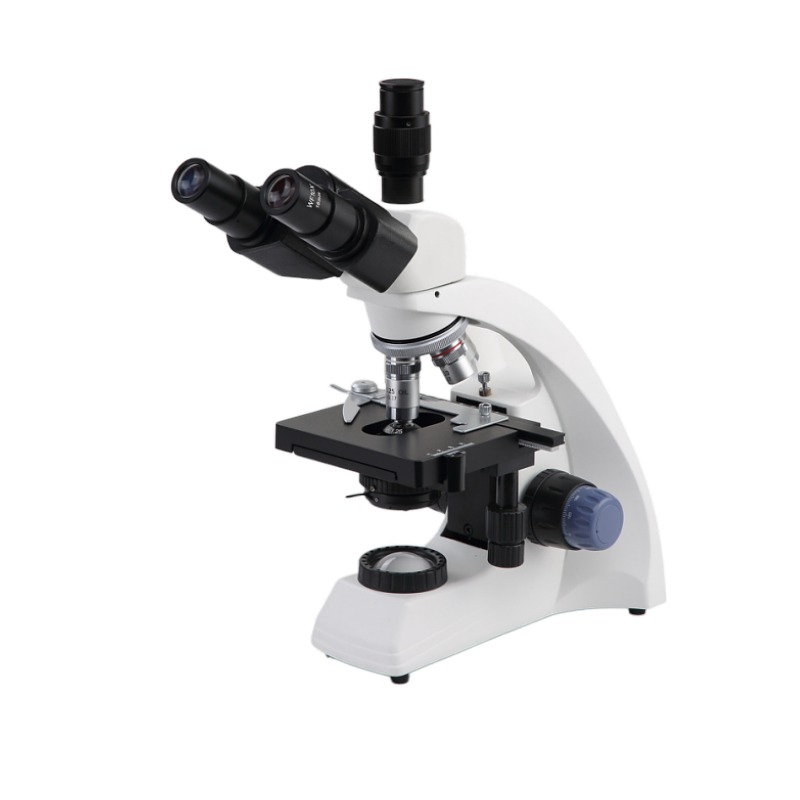

VB-330T 40X-1000X Professional Trinocular Compound Microscope has Superior optics offers crystal clear image
Quantity:
VB-330T
minimum order:
1 piece
Country of Origin:
Ningbo or Shanghai
- Warranty:1years
- Customized support:OEM, ODM, OBM
- Place of Origin:Zhejiang, China
- Brand Name:Vanco
- Model Number:VB-330T
- Theory:Biological Microscope
- Drawtube:Trinocular
- Product name:Biologicalr Microscope
- Head:Trinocular Inclined 30
- Eyepiece:WF10X/18mm
- Objective:Achromatic 4X/10X/40X/100x
- Illumination:3W LED
- Stage:110x125mm
Product Information
VB-330 series microscopes are novel design ,economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy
and have long working life, it is also very comfortable for observation.
These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital

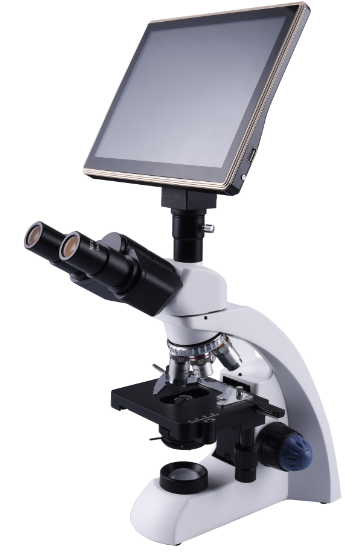

camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Rechargeable battery is optional for
outdoors operation or places that power supply is not stable.
and have long working life, it is also very comfortable for observation.
These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital
camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Rechargeable battery is optional for
outdoors operation or places that power supply is not stable.

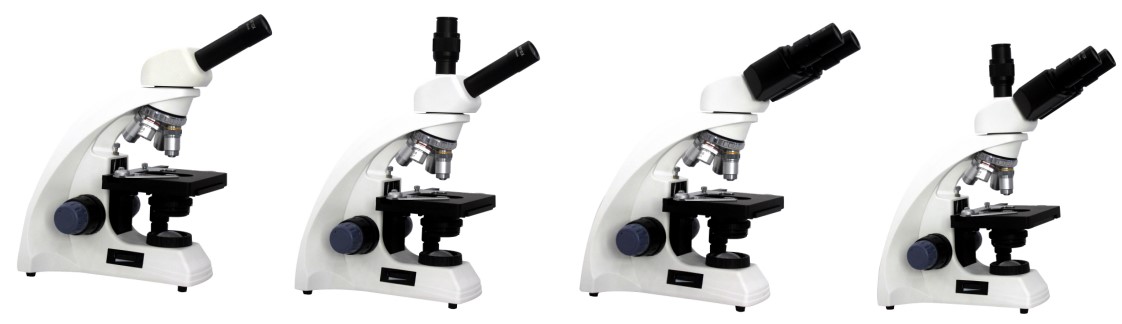

Biological Microscope VB-330 | ||||||||||
VB-330M | VB-330V | VB-330B | VB-330T | |||||||
Optical System | Finite Optical System | ● | ● | ● | ● | |||||
Viewing Head | Monocular Head, Inclined at 30º ，360ºRotatable | ● | ||||||||
Monocular with teaching Head, Inclined at 30º ，360ºRotatable | ● | |||||||||
Seidentopf Binocular Viewing Head, Inclined at 30º ，360ºRotatable | ● | |||||||||
Seidentopf Trinocular Head，Inclined at 30º ，360ºRotatable | ● | |||||||||
Eyepiece | Wide Field Eyepiece WF10X/18mm | ● | ● | ● | ● | |||||
Wide Field Eyepiece WF16X/13mm | ○ | ○ | ○ | ○ | ||||||
Wide Field Eyepiece WF20X/11mm | ○ | ○ | ○ | ○ | ||||||
Objective | Finite 195 Series Achromatic Objectives 4X 10X 40Xs 100Xs(oil) | ● | ● | ● | ● | |||||
CF 4X 10X 40Xs 100Xs(oil) | ○ | ○ | ○ | ○ | ||||||
Finite Plan Achromatic CF Objectives 4X 10X 40Xs 100Xs(oil) | ||||||||||
Nosepiece | Quadruple Nosepiece | ● | ● | ● | ● | |||||
Condenser | Abbe Condenser NA1.25 with Diaphragm，Filter | ● | ● | ● | ● | |||||
调焦系统 Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke36mm | ● | ● | ● | ● | |||||
载物台 Stage | Double Layer Mechanical Stage 115x125mm | ● | ● | ● | ● | |||||
照明Illumination | 3W/LEDAdjustment，rechargeable battery box | ● | ● | ● | ● | |||||
包装尺寸及毛重 Size&G.W. | 泡沫纸箱包装 Foam & Carton Size 33x25.5x41CM | ● | ● | ● | ● | |||||
毛重G.W. 5.2KGS | ● | ● | ● | ● | ||||||
Note: ● Standard， ○ Optional | ||||||||||
Product Show
Product Classification
Company Profile

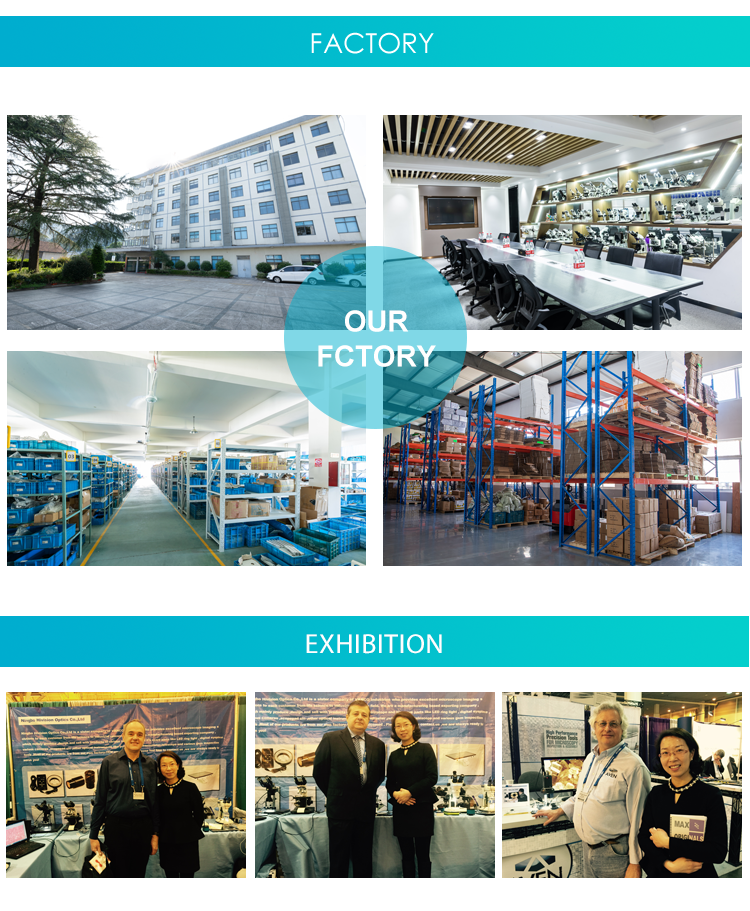

Factory
Our Certificate
Transport&Payment
FAQ
.
