VB-3E-ZB SWF10X Jewelry dimand settings new microscope 2022 microscope jewelry making stereo microscope jewelry

    Quantity:
    Contact Now
    VB-3E-ZB
    minimum order:
    1 set
    • Warranty:3 years
    • Customized support:OEM, ODM
    • Place of Origin:Zhejiang, China
    • Brand Name:Vanco
    • Model Number:VB-3E-ZB
    • Theory:Stereo Microscope, Stereo Microscope
    • Drawtube:Other
    • Objective:1X~4X
    • Power Supply:AC 100V-240V Wide Range, CE Approval
    • Working Stage:Dia.94.5mm White/Black And Dia94.5mm Frosted Glass
    • Head:Rotatable 360°,Inclination 45° Binocular
    • Light Source:Halogen Lamp 12V/10W, Brightness
    Component
    Specifications
    Model Number
    VB-3E-ZB
    Viewing Head
    Inclined trinocular
    ●
    Interpupillary distance
    55MM-75mm
    ●
    Eyepiece
    SWF10×/22mm
    ●
    WF15×/15mm
    ○
    WF20×/10mm
    ○
    Objective
    1X-4X
    ●
    Working Distance
    91mm
    ●
    Incident Light
    12V10W halogen light
    ●
    10W fluorescent light
    ●
    Transmitted light
    12V10W halogen light
    ●

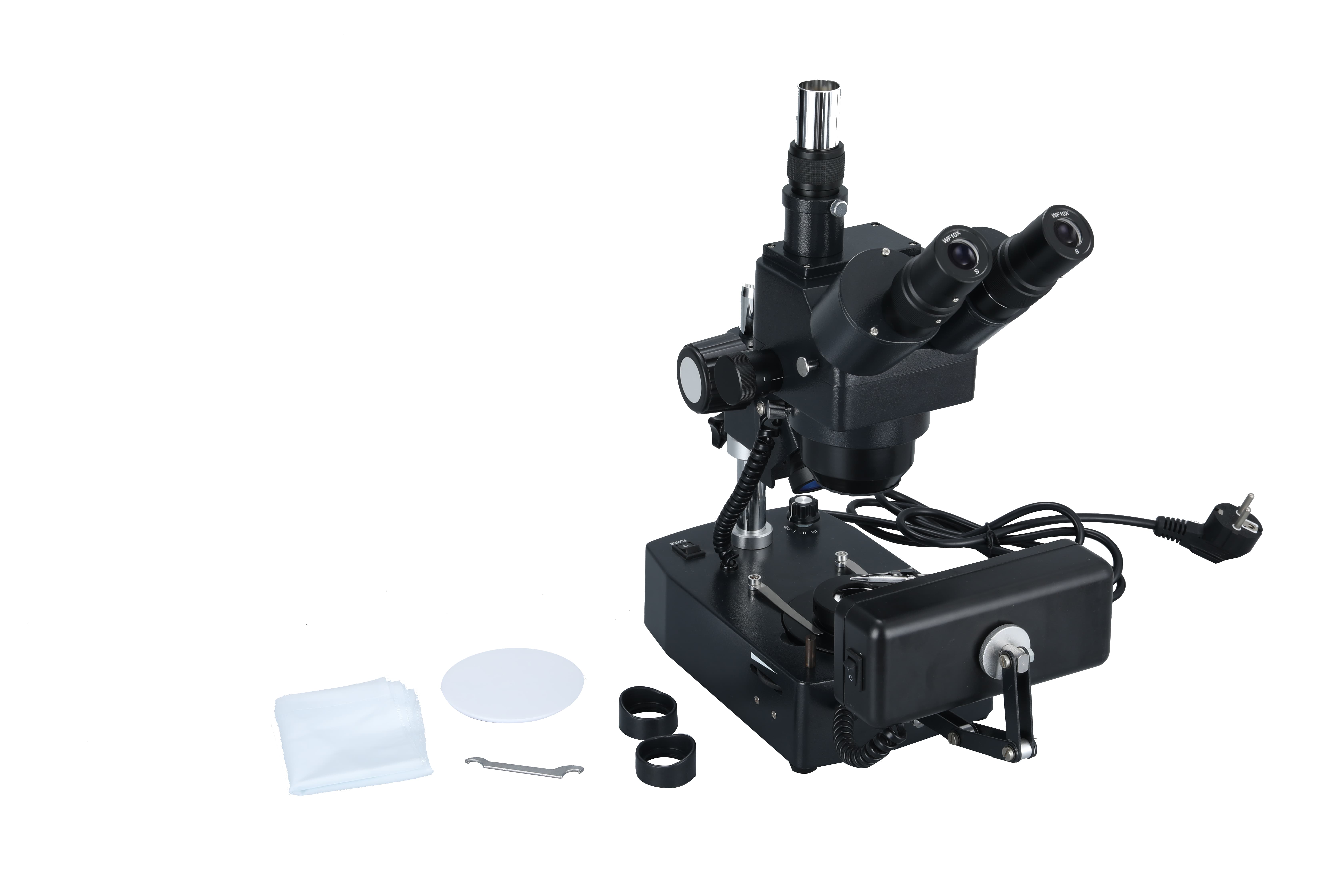

    Attachment
    Jewel tweezer
    ●
    Darkfield working stage (with diaphram)
    ●
    Light-dimmer
    Dial dimmer switch
    ●
    The camera interface
    H Type
    ●
    C Type
    ○
    ●standard ○Optional
    Packaging & Delivery
    Selling Units:
    Single item
    Lead Time
    Quantity(Pieces) 1 - 10 >10
    Est. Time(days) 10 To be negotiated

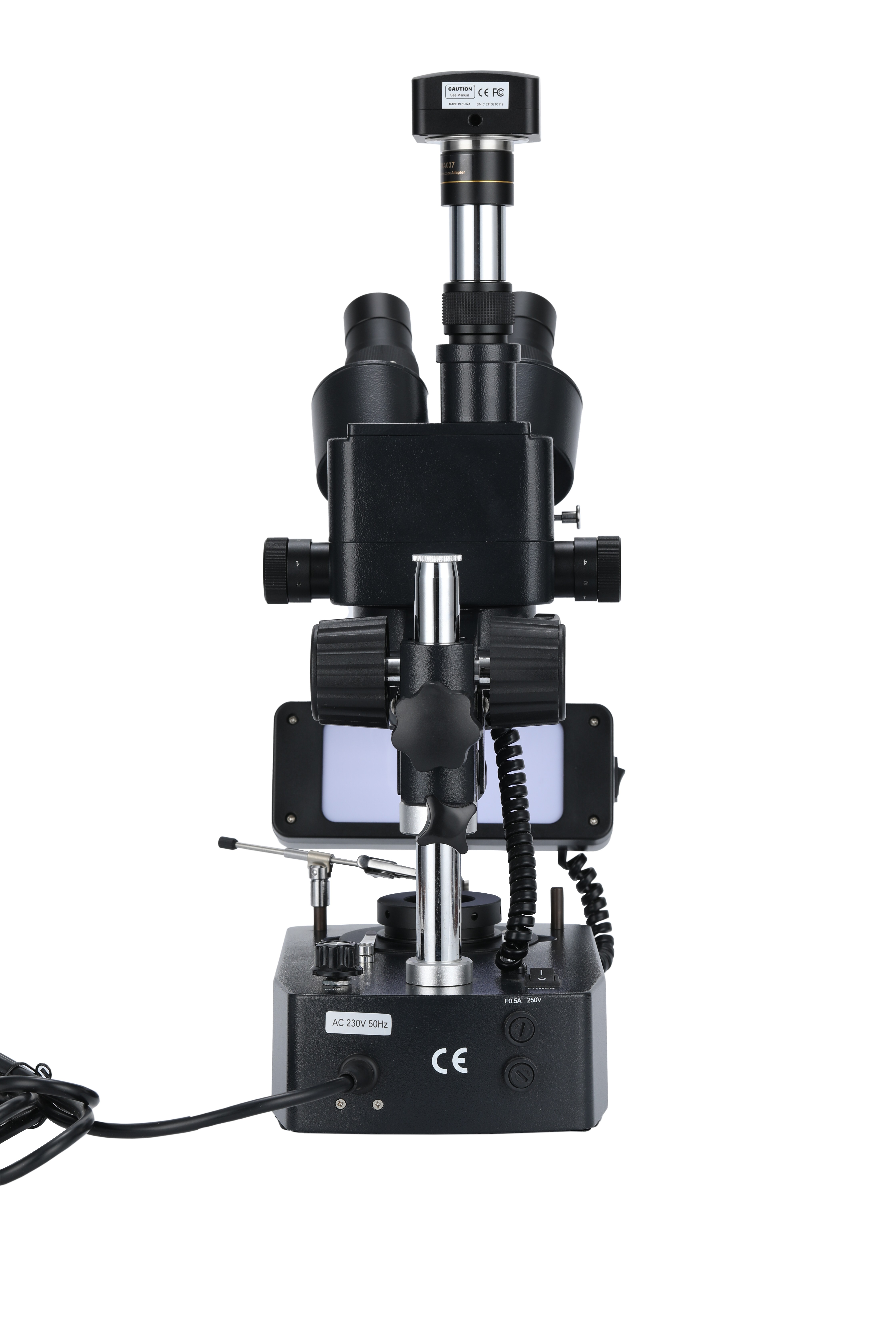

    Camera
    Trinocular head can be connected with CCD camera, making images show on an external moniter

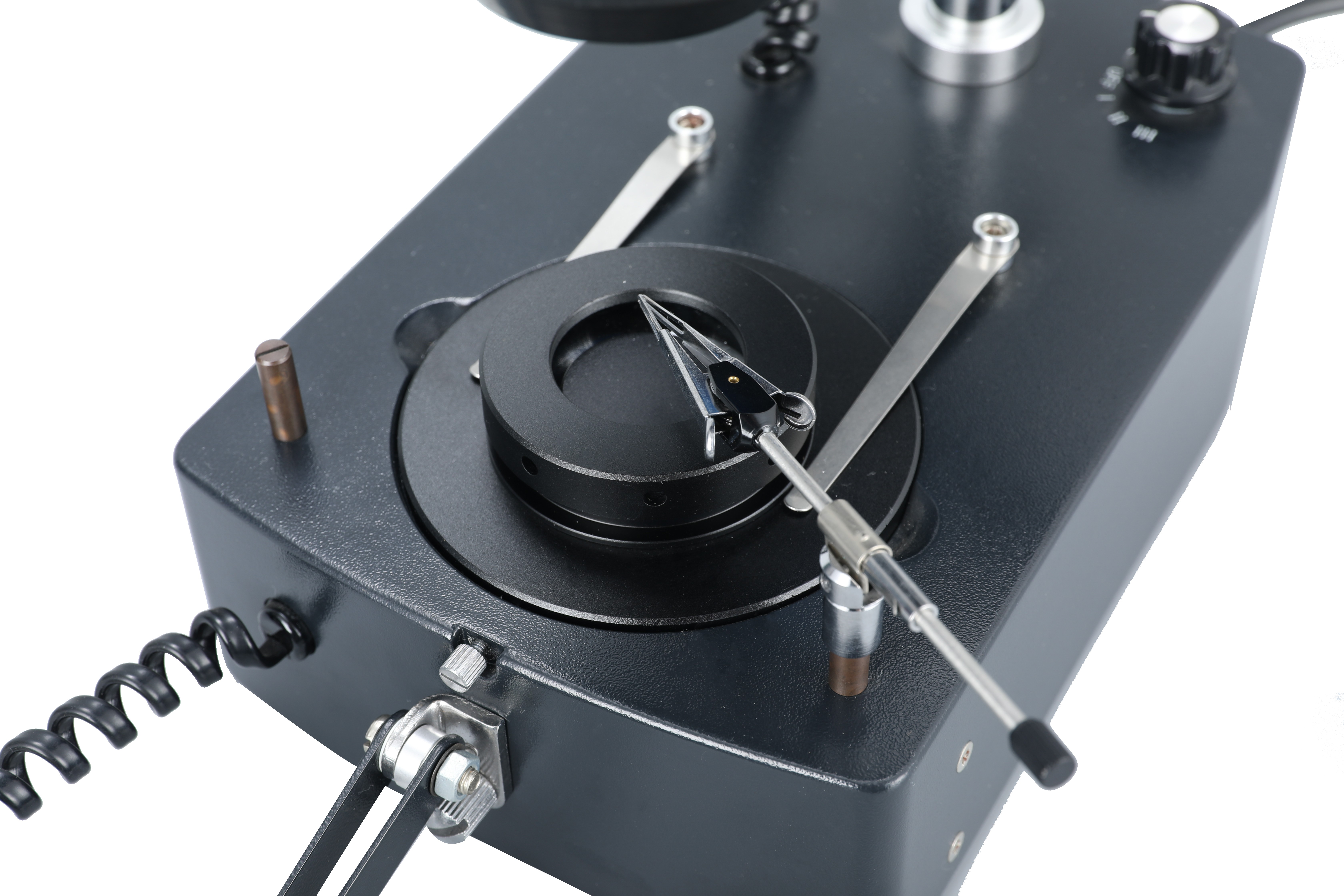

    Working stage
    With bottom LED light, and can be installed a darkfield attachment and jewelry tweezer, easy to observe jewelry and diamonds.

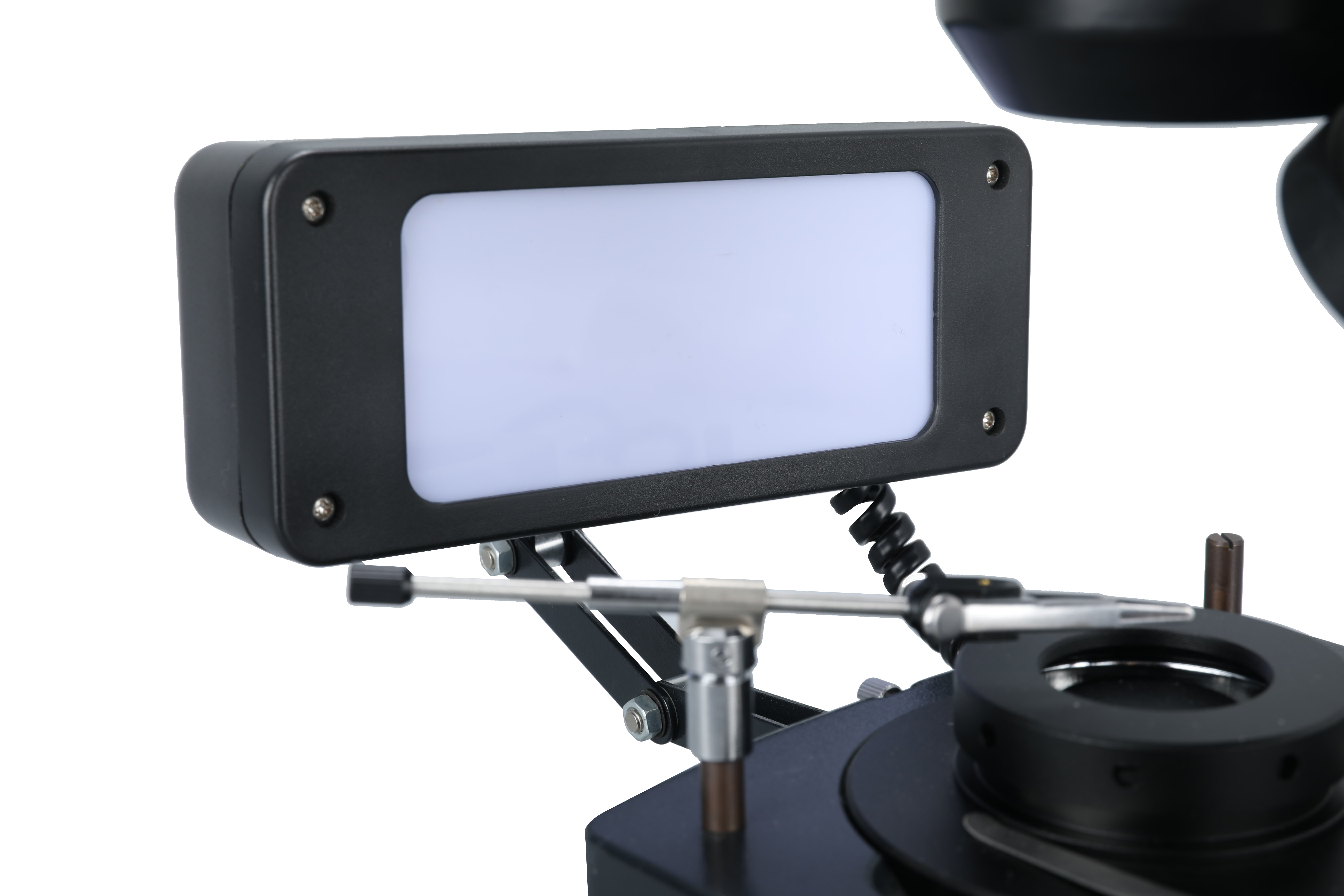

    LED light
    There is a 10W square flurescent lamp except the top and bottom LED light, A variety of ways and angles of illumination can enhance the effect of observation




    Objective

    1X-4X zoom objective lens.

    Dimmer controls
    Dimmer controls the top LED light and bottom LED light
