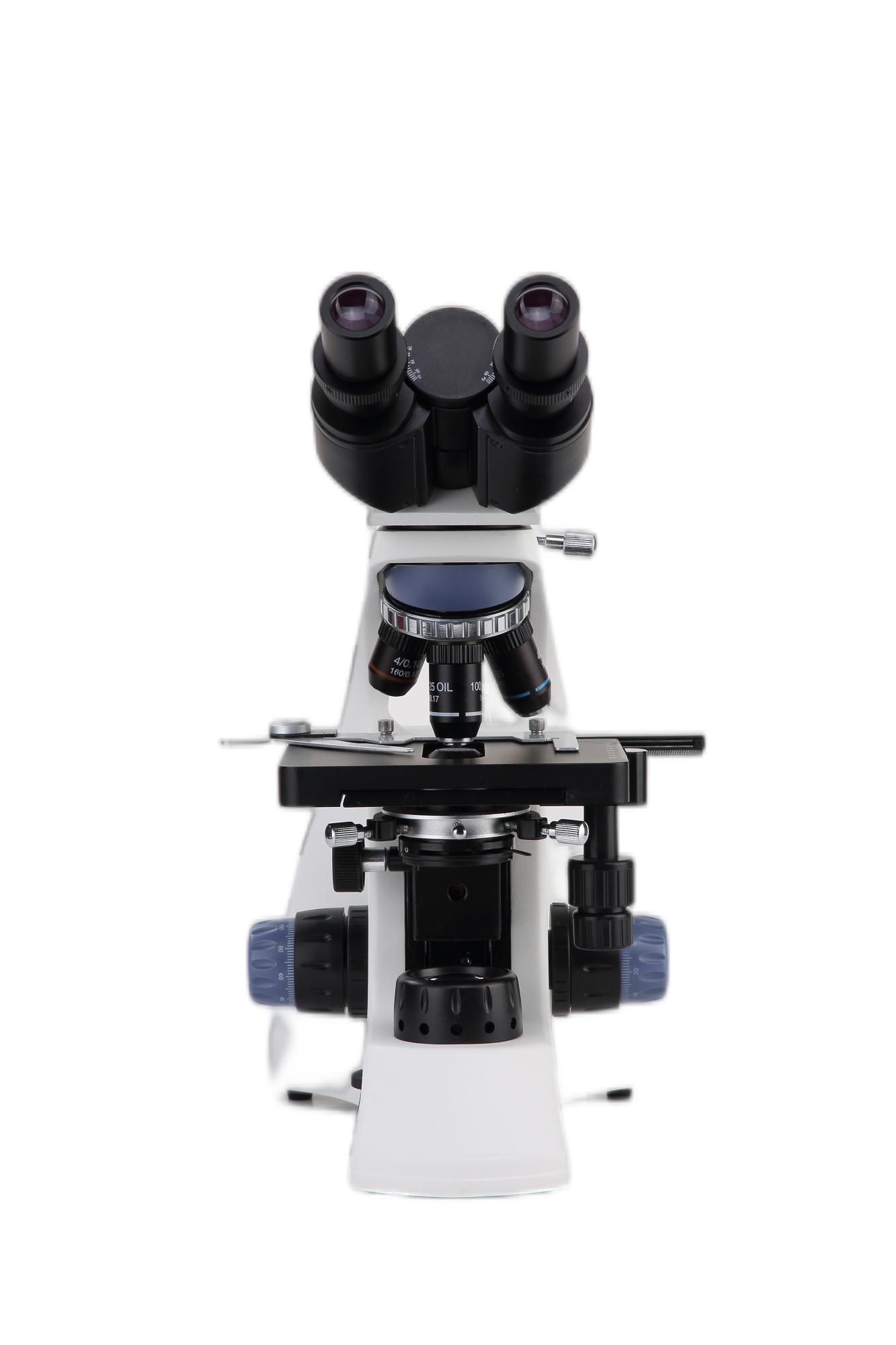

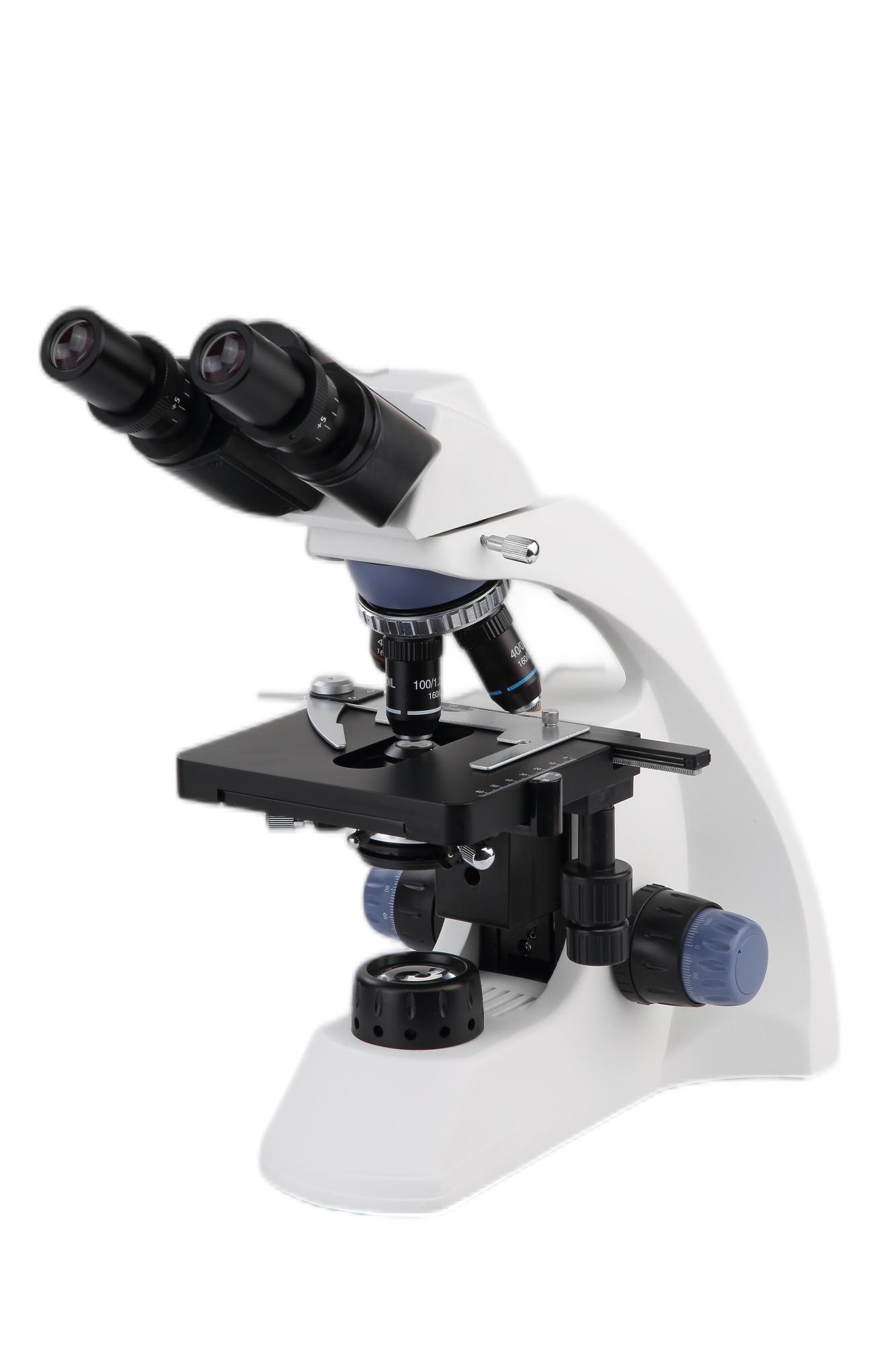

VB-550B 40X-1000X Professional Binocular Compound Microscope has Superior optics offers crystal clear image
Quantity:
VB-550B
minimum order:
1 piece
Country of Origin:
Ningbo or Shanghai
- Warranty:1years
- Customized support:OEM, ODM, OBM
- Place of Origin:Zhejiang, China
- Brand Name:Vanco
- Model Number:VB-550B
- Theory:Biological Microscope
- Drawtube:BINOCULAR
- Product name:Biologicalr Microscope
- Head:Binocular Inclined 30
- Eyepiece:WF10X/18mm
- Objective:Achromatic 4X/10X/40X/100x
- Illumination:3W LED
- Stage:142x132mm
Product Information
VB-550 series microscopes are novel design ,economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy
and have long working life, it is also very comfortable for observation.
These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital
camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Rechargeable battery is optional for
outdoors operation or places that power supply is not stable.
and have long working life, it is also very comfortable for observation.
These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital
camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Rechargeable battery is optional for
outdoors operation or places that power supply is not stable.

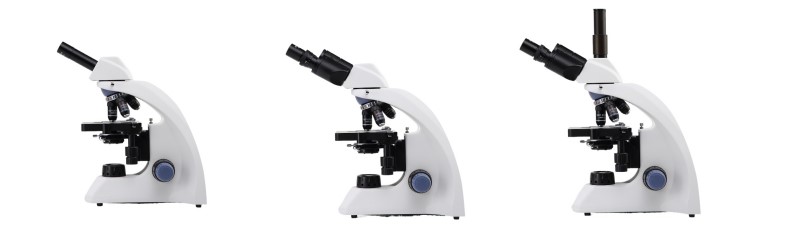

Biological Microscope VB-550 | ||||||||
VB-550M | VB-550B | VB-550T | ||||||
Optical System | Finite Optical System | ● | ● | ● | ||||
Viewing Head | Monocular Viewing Head, Inclined at 30º ，360ºRotatable | ● | ||||||
Seidentopf Binocular Viewing Head, Inclined at 30º ，360ºRotatable | ● | |||||||
Seidentopf Trinocular Head，Inclined at 30º ，360ºRotatable | ● | |||||||
Eyepiece | Wide Field Eyepiece WF10X/18mm | ● | ● | ● | ||||
Wide Field Eyepiece WF16X/13mm | ○ | ○ | ○ | |||||
Wide Field Eyepiece WF20X/11mm | ○ | ○ | ○ | |||||
Objective | Finite 195 Series Achromatic Objectives 4X 10X 40Xs 100Xs(oil) | ● | ● | ● | ||||
CF 4X 10X 40Xs 100Xs(oil) | ○ | ○ | ○ | |||||
Finite Plan Achromatic Objectives 4X 10X 40Xs 100Xs(oil) | ||||||||
Nosepiece | Quadruple Nosepiece | ● | ● | ● | ||||
Quintuple Nosepiece | ○ | ○ | ○ | |||||
Condenser | Abbe Condenser NA1.25 with Diaphragm，Filter | ● | ● | ● | ||||
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke36mm | ● | ● | ● | ||||
Stage | Double Layer Mechanical Stage 142x132mm , Moving Range75mmx50mm | ● | ● | ● | ||||
Illumination | 6V/20W Halogm Lamp，Brightness Adjustment | ● | ● | ● | ||||
3W/LEDAdjustment rechargeable battery | ○ | ○ | ○ | |||||
Size&G.W. | Foam & Carton Size 34x25.5x49CM | ● | ● | ● | ||||
G.W. 6KGS | ● | ● | ● | |||||
Note: ● Standard， ○ Optional | ||||||||
