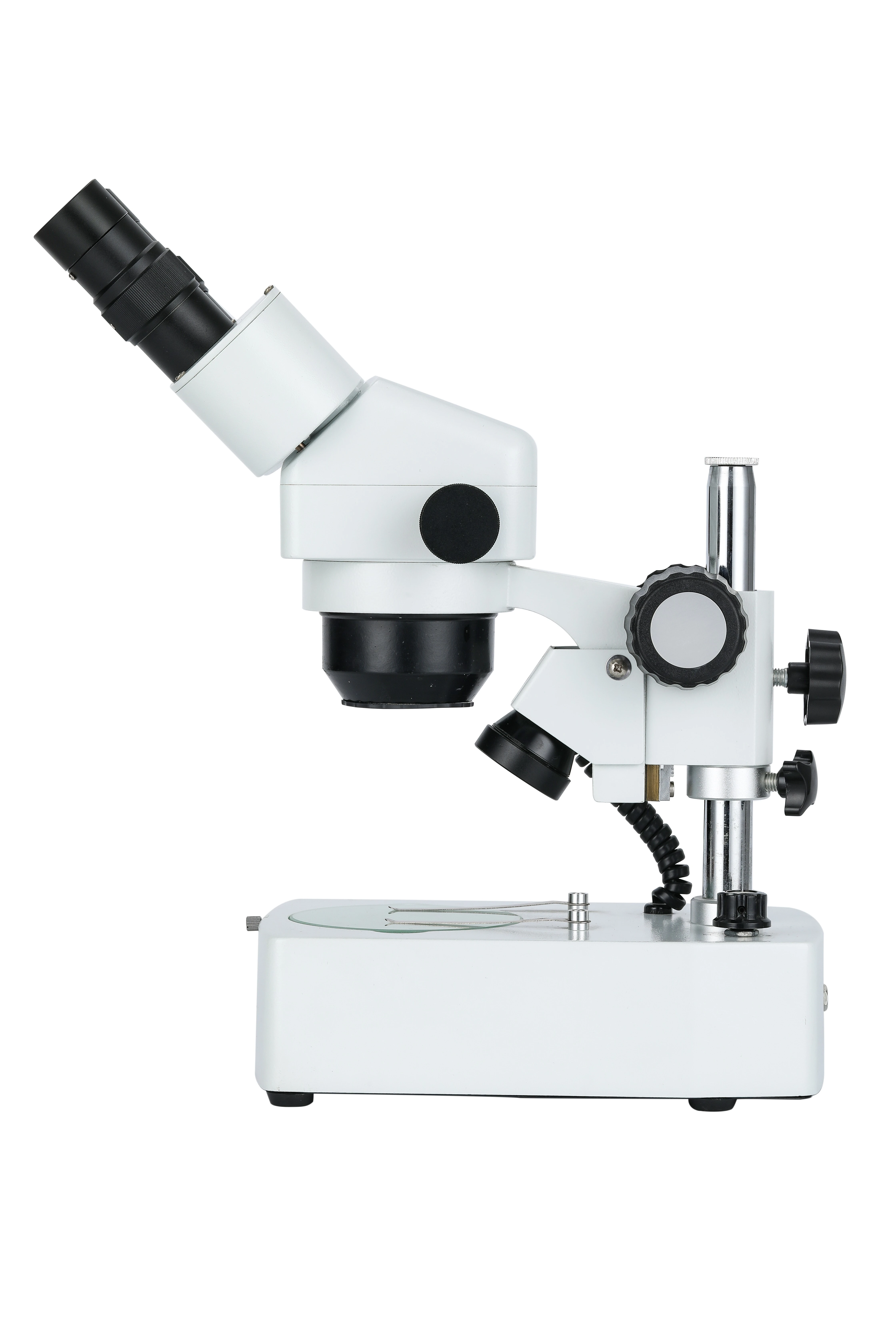

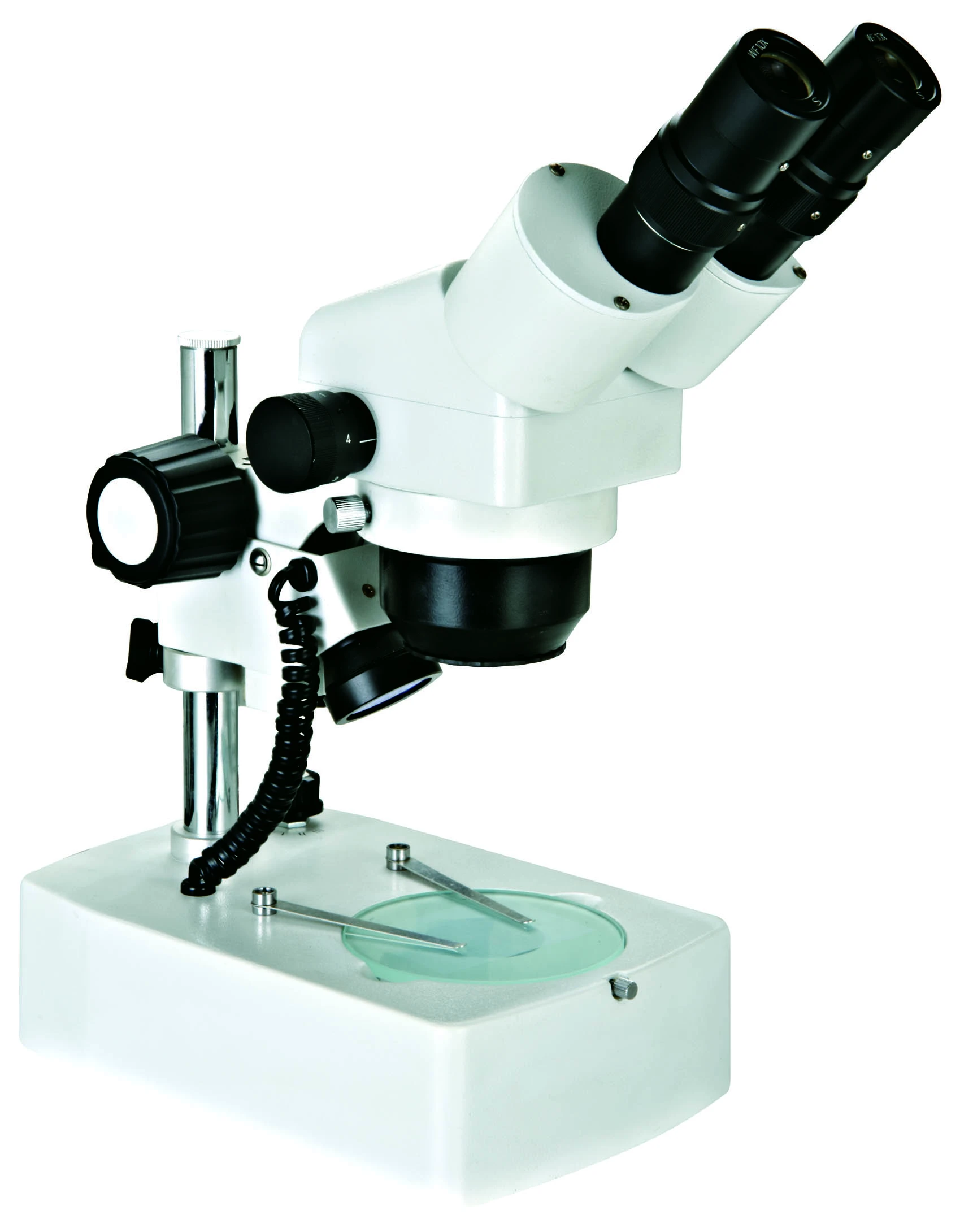

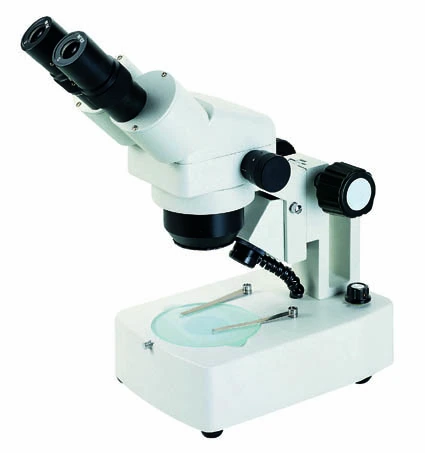

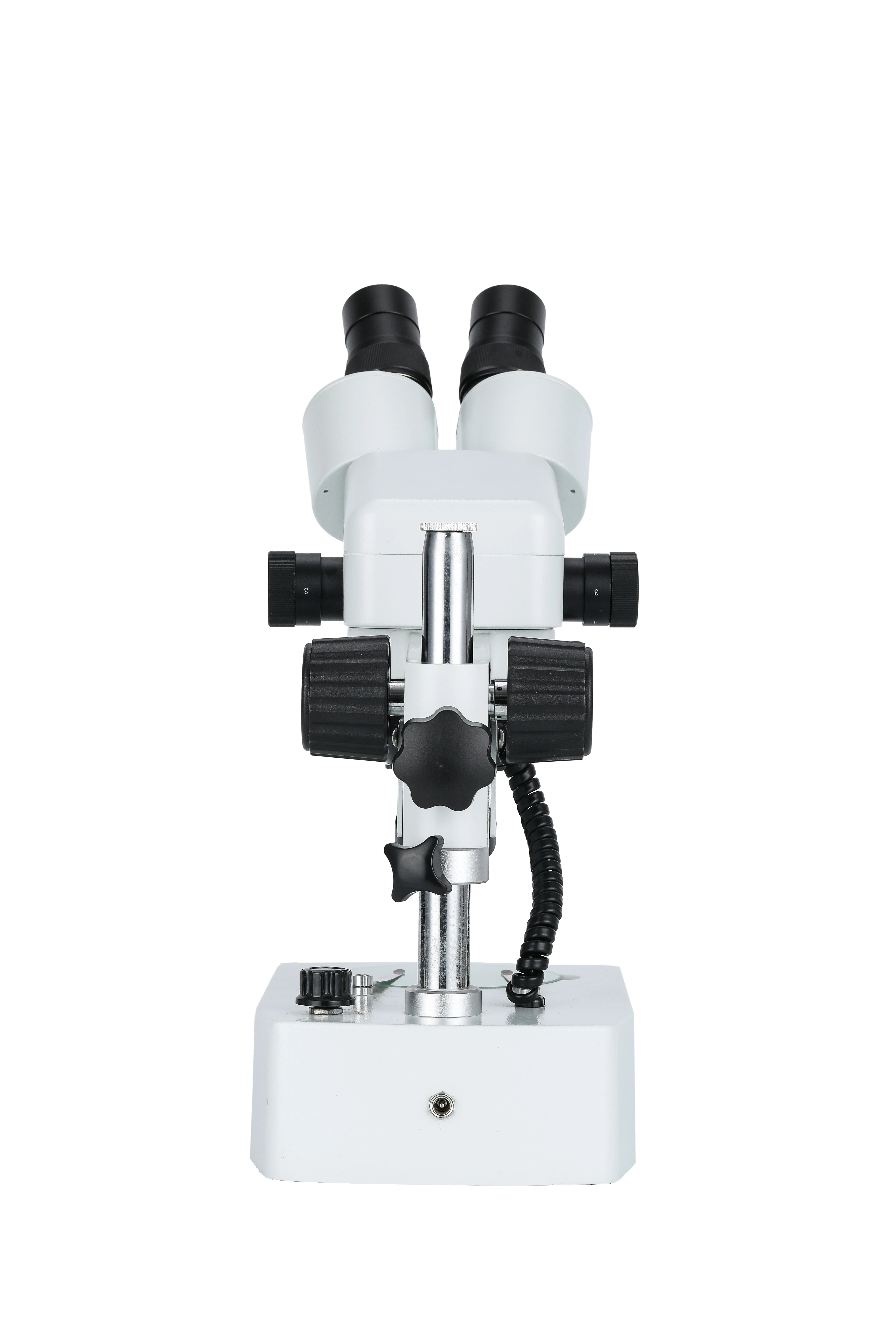

VB-E WF10x/20mm binocular surgical professional binocular stereo microscope

    Quantity:
    Contact Now
    VB-E
    minimum order:
    1 set
    Country of Origin:
    Ningbo Shanghai
    • Warranty:3 years
    • Customized support:OEM, ODM
    • Place of Origin:Zhejiang, China
    • Brand Name:Vanco
    • Model Number:VB-E
    • Theory:Stereo Microscope
    • Drawtube:BINOCULAR
    • Head:Rotatable 360,Inclination 45 Binocular
    • Eyepiece::WF10x/20mm
    • Objective::1X~4X
    • Stage::Dia.94.5mm White/Black And Dia94.5mm Frosted Glass
    • Focusing::Coarse
    • Power Supply::AC 100V-240V Wide Range, CE Approval
    Component
    Specifications
    Model
    ZTX-E
    Viewing Head
    Binocular Stereo 45°
    ●
    Interpupillary distance
    55MM-75mm
    ●
    Eyepiece
    SWF10×/22mm
    ●
    WF15×/15mm
    ○
    WF20×/10mm
    ○
    Objective
    1X-4X
    ●
    Working Distance
    91mm
    ●
    Base
    Circinal pillar
    ●
    Quadrate pillar
    Fan-shaped
    Square
    ●
    Illumination
    Halogen light
    LED
    Dual goose LED light
    Light-dimmer
    Knob dimmer switch
    Dial dimmer switch
    ●standard ○Optional
    Packaging & Delivery
    Selling Units
    Single item
    Single package size:
    34× 20.5 ×40 cm
    Single gross weight:
    6kg
    Package Type:
    Well packed in plastic bag and foam, then sealed in strong carton for long distance transportation.
    Lead Time
    Quantity(Sets): 1-10 >10
    Est. Time(days): 15 To be negotiated

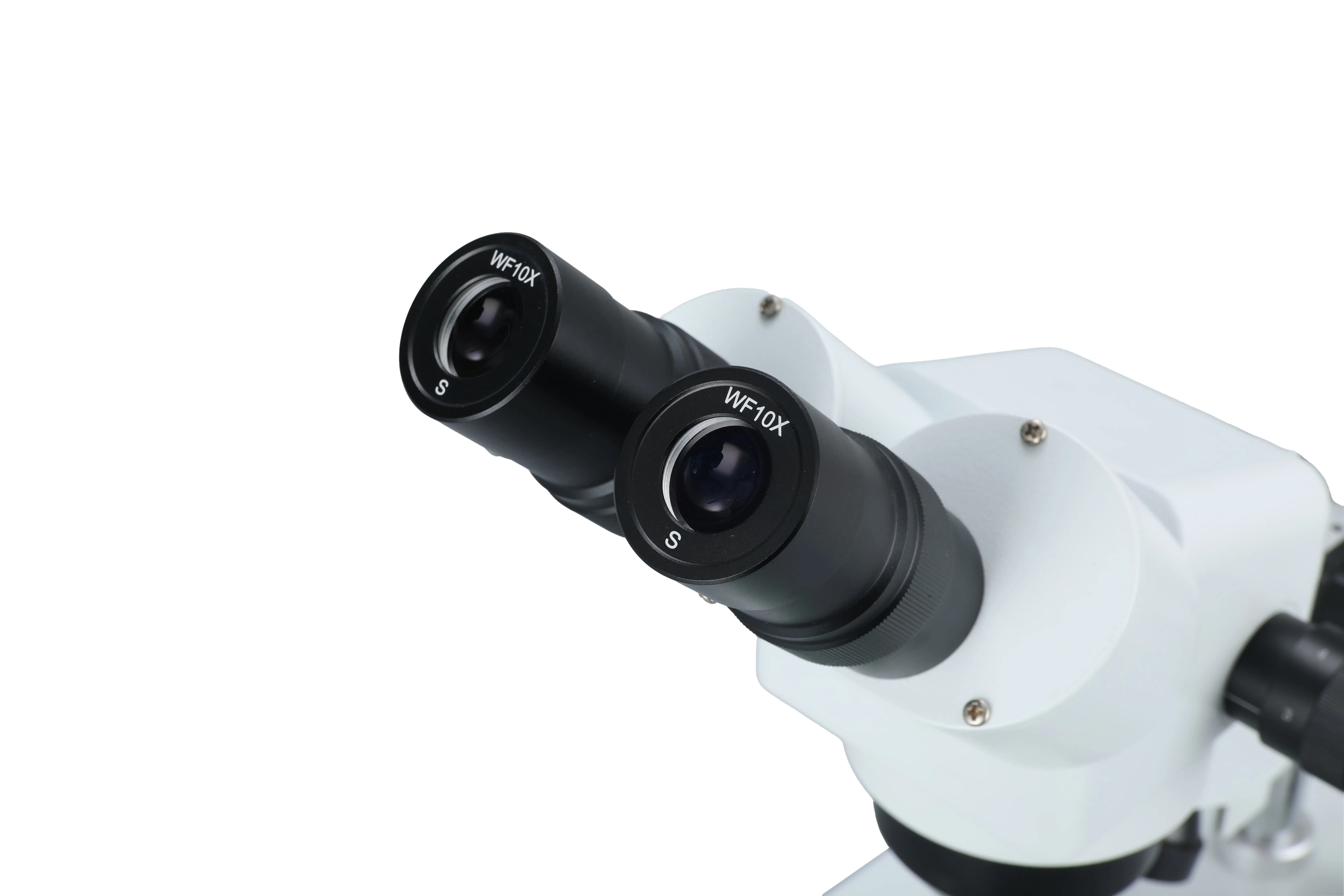

    Eyepieces
    Binocular head with 45 degree inclined. Diopter can be adjusted. Regular SWF10X eyepieces, but SWF15X or HWF20X are optional.




    Objectives
    1X-4X zoom objective lens.

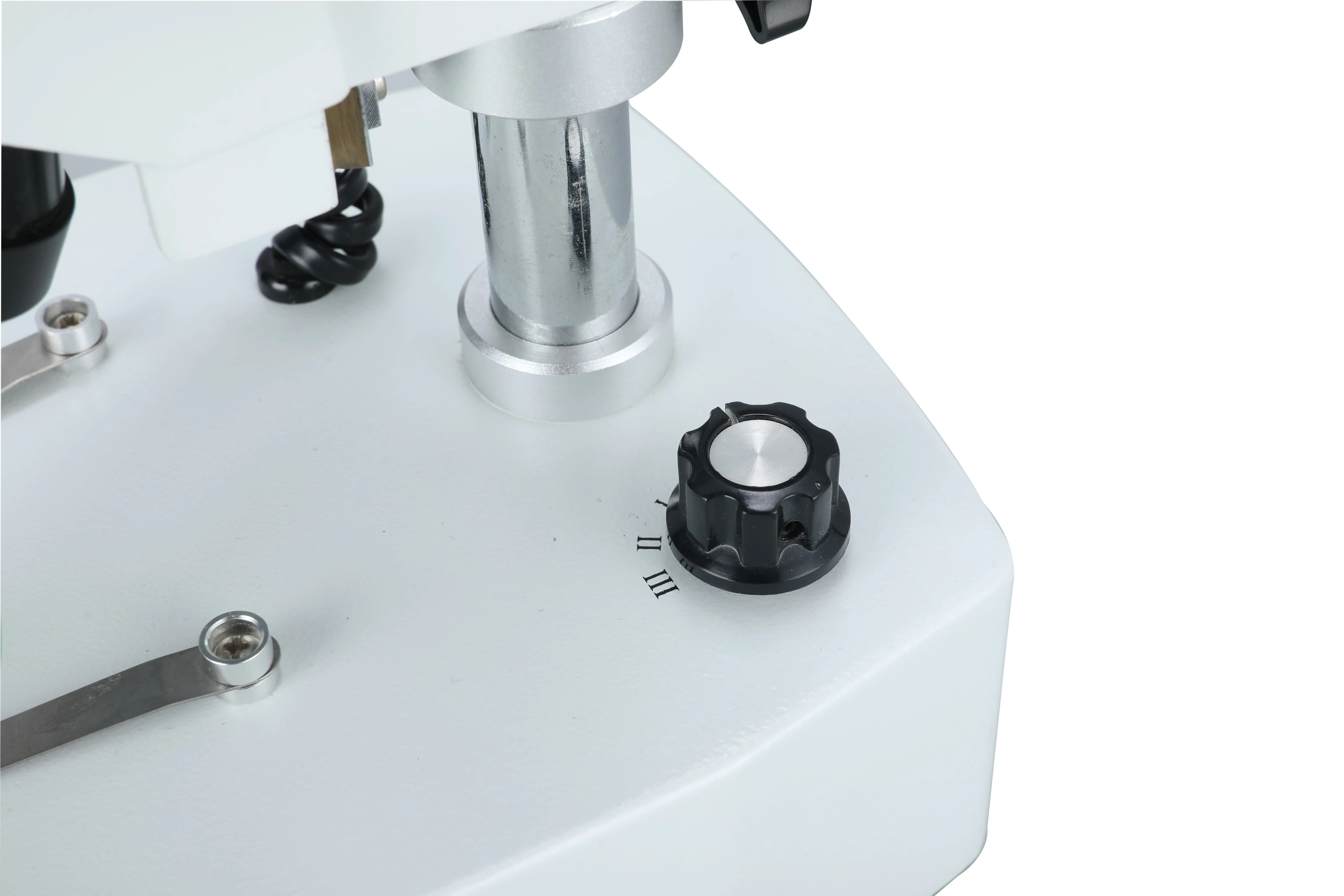

    Light control
    The switch with 4 brightness settings.

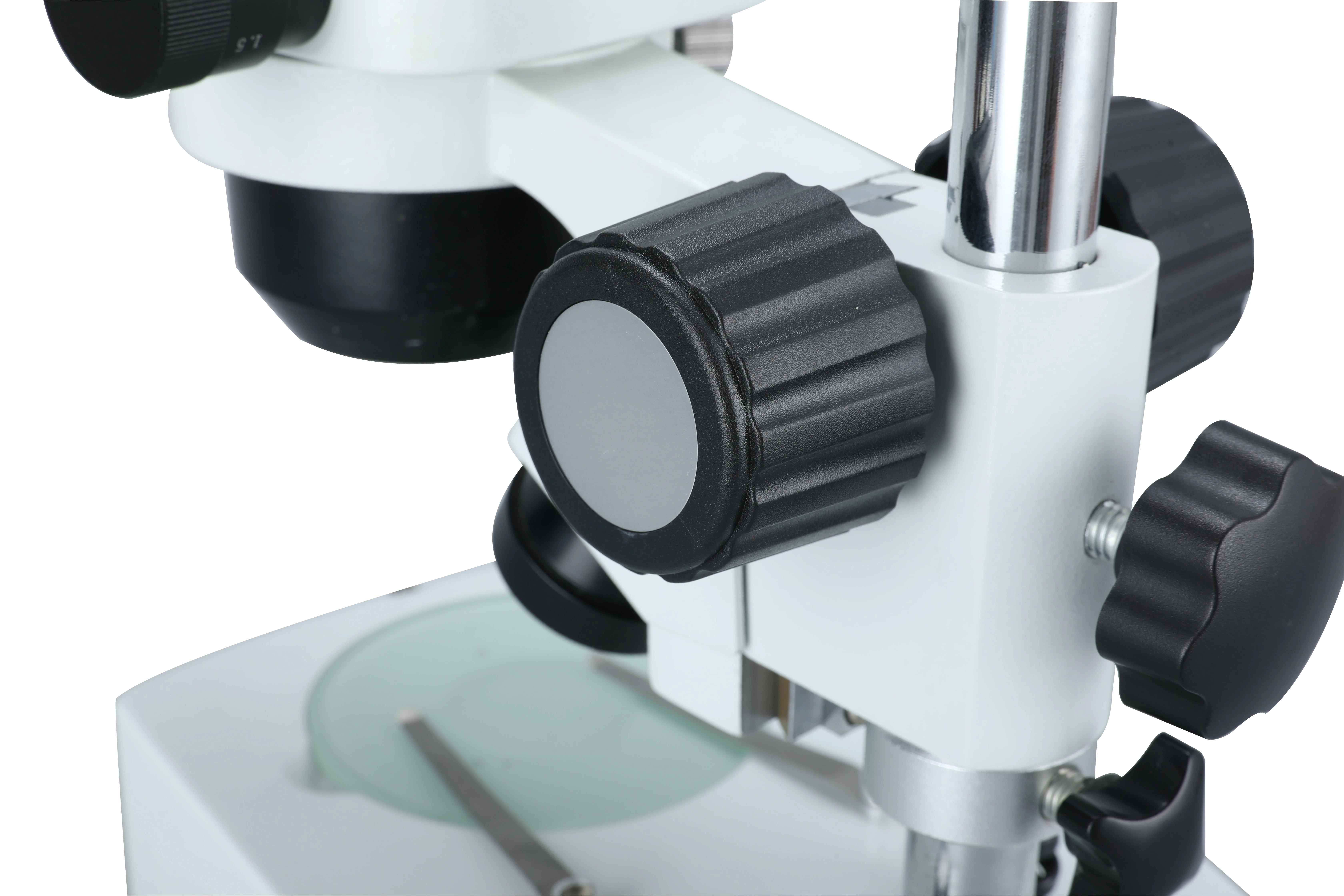

    Focusing mechanism
    Focusing mechanism with mechanical rack, more accurate positioning.

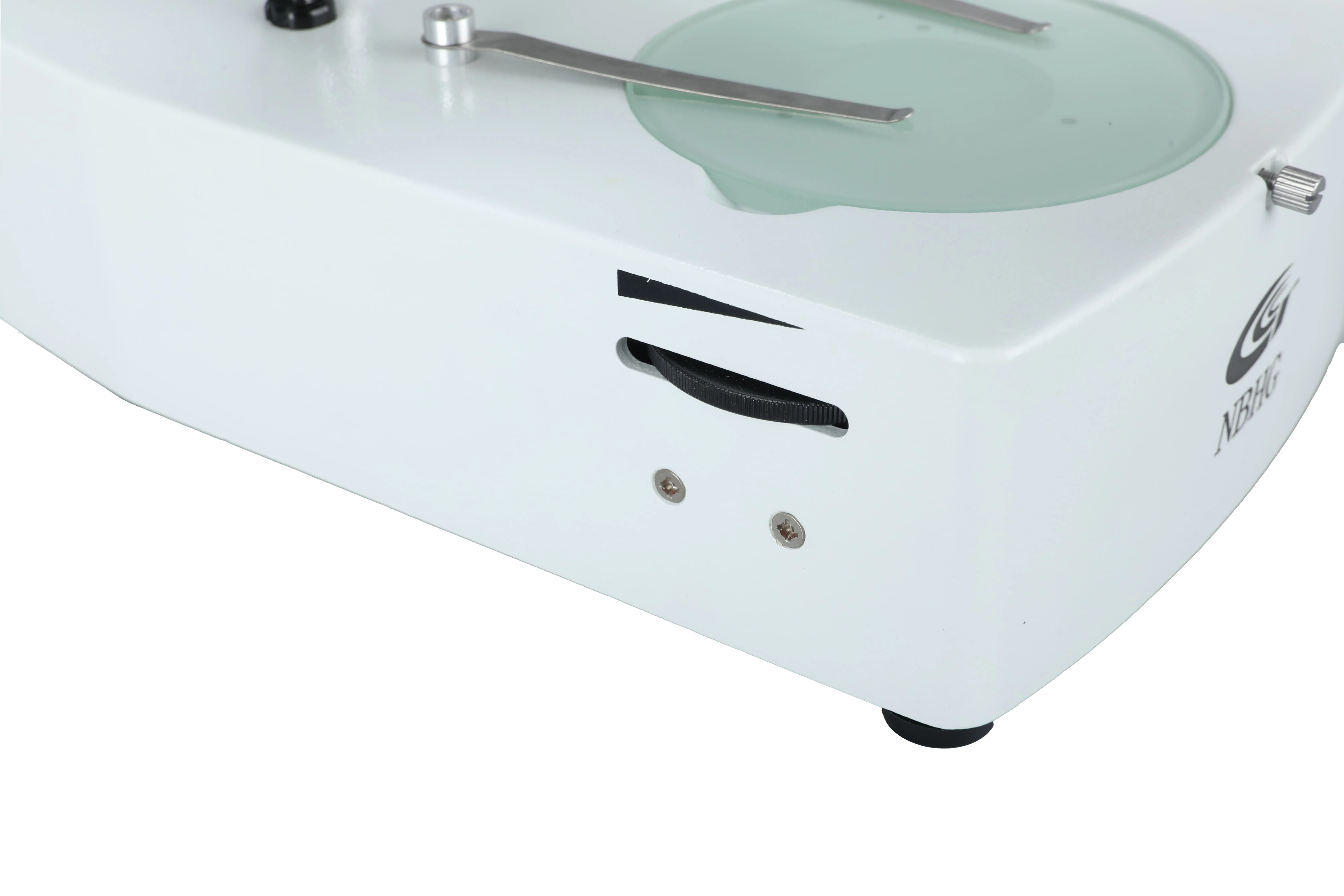

    Dimmer controls
    Dimmer controls the top or bottom light
