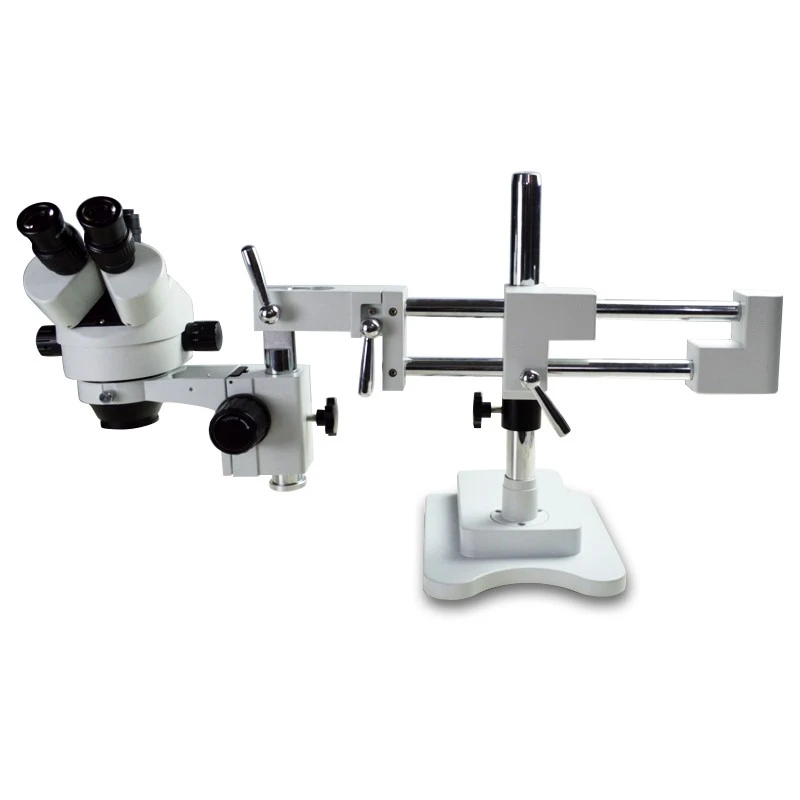

VB0745-STLII Double Boom Stand 7X-45X Zoom Mobile Phone repair Stereo Trinocular Microscope

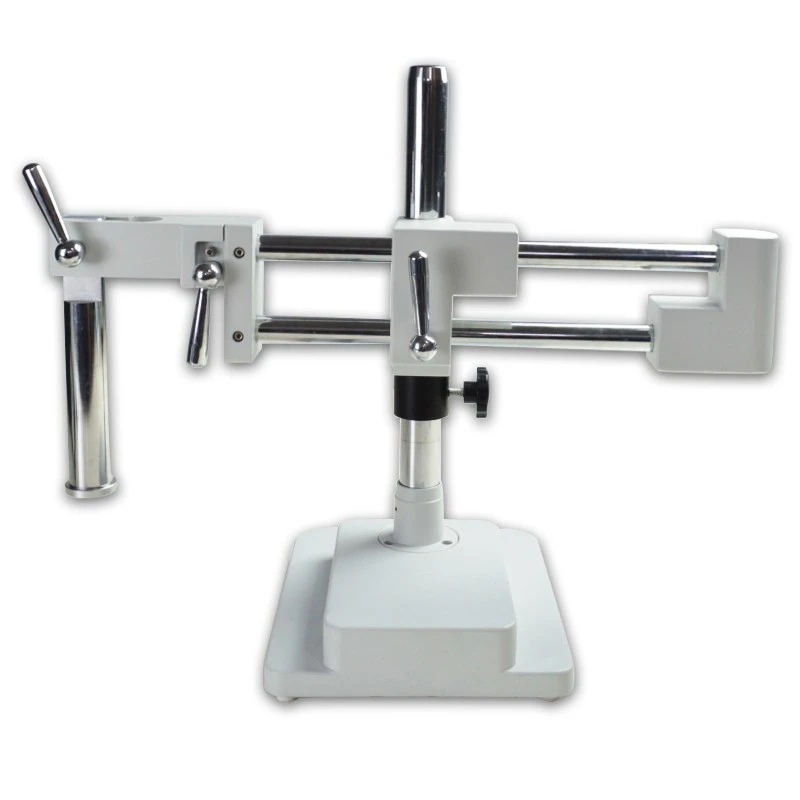

The 45 inclined 360 swiveling trinocular head and high-eye point design ensures an easy observation, especially for eyeglass wearers.Have well-focused, clear images on your PC or video Screen and through the microscope eyepieces at the same time;No need to re-focus the microscope after each"switch”;The double-arm boom stand is equipped with a versatile ball-bearing design, which allows users to make horizontal adjustments at the touch of a finger.

1) Head:45°Inclined 360°rotatable Trinocular; 2) Eyepieces: wide field WF10X/20;
3) Zoom range:6.5:1 4) Objection zoom: 0.7x-4.5X;
5) Total magnification: 3.5x~90x; 6) Both ocular tubes have diopter adjustment ±5dp;
7) Interpupillary distance:2-3/16″~2-15/16″(55~75mm); 8) Working distance: 100mm;
9) Focus adjustment stroke:2-3/8″(50mm); 10) White/black plastic stage plate:3-3/4″(95mm) in diameter.

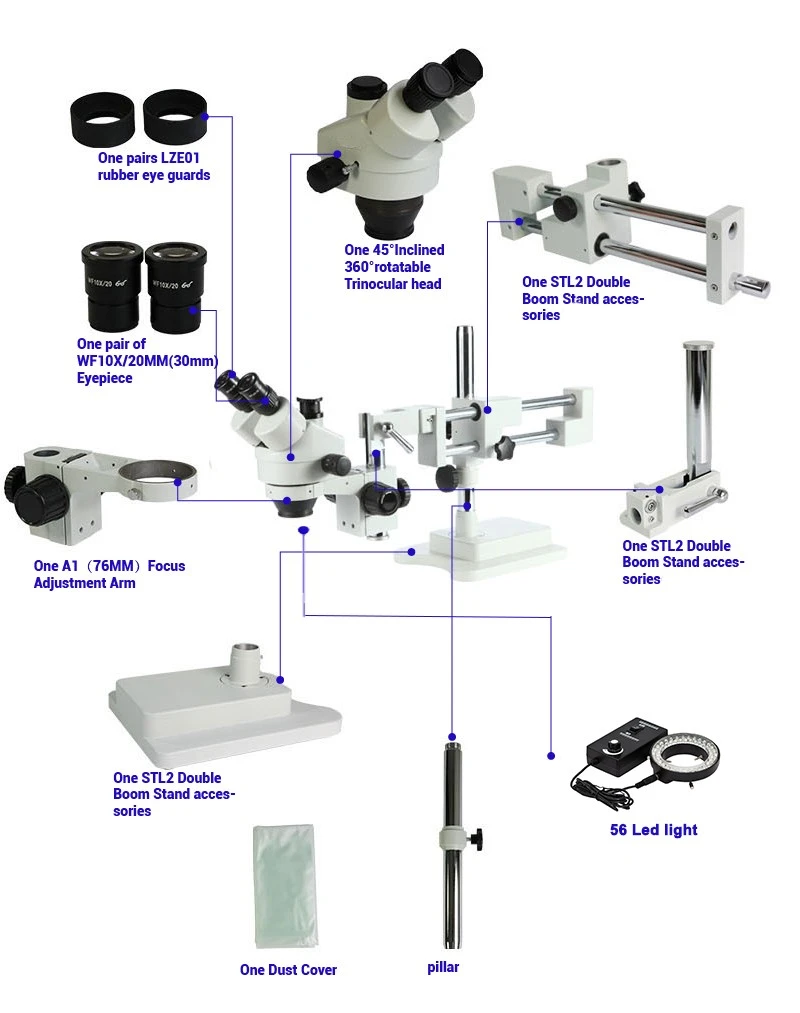

One Binocular Stereo Zoom Microscope Head; One Pair of Super Widefield High-Eyepoint 10X Eyepieces;
One Pillar Stand; One Focusing Rack;
One Pair of Clips; One Pair of Eye-guards;

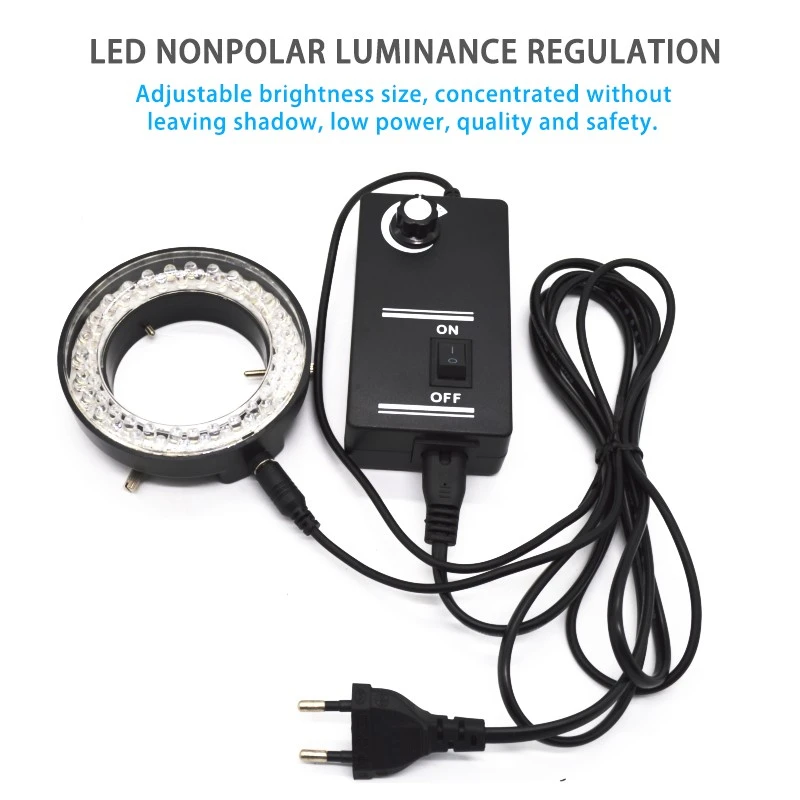

One Dust Cover; 220 V / 8W circular fluorescent lamp Or Led lights.

Note: Packing size :52x51x32cm/27kg

Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.

1.all of our products will be checked one by one before shipping;
2.customer should check the package when receiving;
3.all machine wihin 1 year free warranty, but here is not warranty if that's obviously caused by man-made

free technical support always;
4. due to the low vaule of the accessories,we don't accept any return or exchange.
