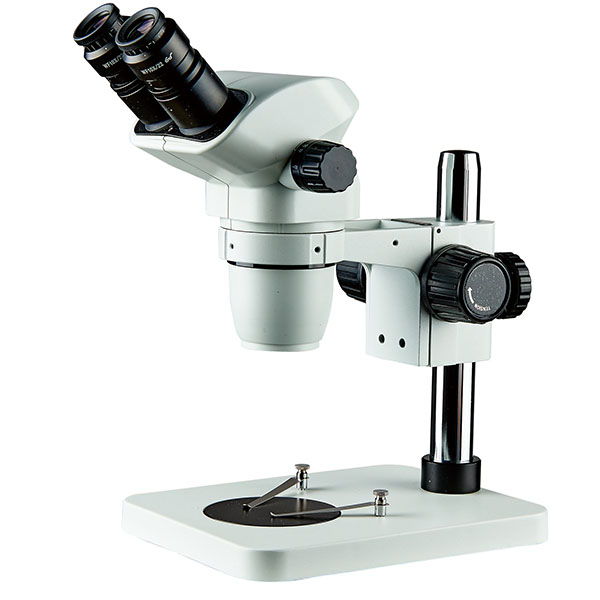

VS6745-B1 Magnification 3.35X-270X Stereoscopic Binocular Microscope

    Quantity:
    Contact Now
    VS6745-B1
    minimum order:
    1 piece
    Country of Origin:
    Ningbo or Shanghai
    • Warranty:1 year
    • Customized support:OEM, ODM, OBM
    • Place of Origin:Zhejiang, China
    • Brand Name:Vanco
    • Model Number:VS6745-B1
    • Theory:Stereo Microscope
    • Drawtube:BINOCULAR
    • Magnification:3.35X-270X
    • Eyepiece:WF10X/22mm
    • Objective:0.67X-4.5X
    • Application:Industrial Inspection
    • Viewing head:Binocular Head
    • Product name:VS6745-B1
    Product Information



    VS6745 Series Stereo Zoom Microscope is fully coated optical system with super high resolution. It is characterized by brand-new
    optical design, the best reproduction and true color image. It is ideally suited for industrial as well as for biological research
    where high precision, maximum working distance and large field coverage is required.

    Eyepiece
    Standard
    Auxiliary Lens 0.5X
    Auxiliary Lens 1.5X
    Auxiliary Lens 2X
    W.D. 105mm
    W.D. 177mm
    W.D. 47mm
    W.D. 26mm
    Mag.
    F.O.V
    Mag.
    F.O.V
    Mag.
    F.O.V
    Mag.
    F.O.V
    10X/22mm
    6.7X
    32.8mm
    3.4X
    65.7mm
    10.1X
    21.9mm
    13.4X
    16.4mm
    45.0X
    4.9mm
    22.5X
    9.8mm
    67.5X
    3.3mm
    90.0X
    2.4mm
    15X/16mm
    10.1X
    23.9mm
    5.0X
    47.8mm
    15.1X
    15.9mm
    20.1X
    11.9mm
    67.5X
    3.6mm
    33.8X
    7.1mm
    101.3X
    2.4mm
    135.0X
    1.8mm
    20X/12mm
    13.4X
    17.9mm
    6.7X
    38.5mm
    20.1X
    11.9mm
    26.8X
    9.0mm
    90.0X
    2.7mm
    45.0X
    5.3mm
    135.0X
    1.8mm
    180.0X
    1.3mm
    25X/9mm
    16.8X
    13.4mm
    8.4X
    26.9mm
    25.1X
    9.0mm
    33.5X
    6.7mm
    112.5X
    2.0mm
    56.3X
    4.0mm
    168.8X
    1.3mm
    225.0X
    1.0mm
    30X/8mm
    20.1X
    11.9mm
    10.1X
    23.8mm
    30.2X
    7.9mm
    40.2X
    6.0mm
    135.0X
    1.8mm
    67.5X
    3.6mm
    202.5X
    1.2mm
    270.0X
    0.9mm
    Magnification
    6.7X-45X, 3.4X-270X with optional eyepieces and objectives
    Eyepiece
    WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses
    Optional Eyepiece
    WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm

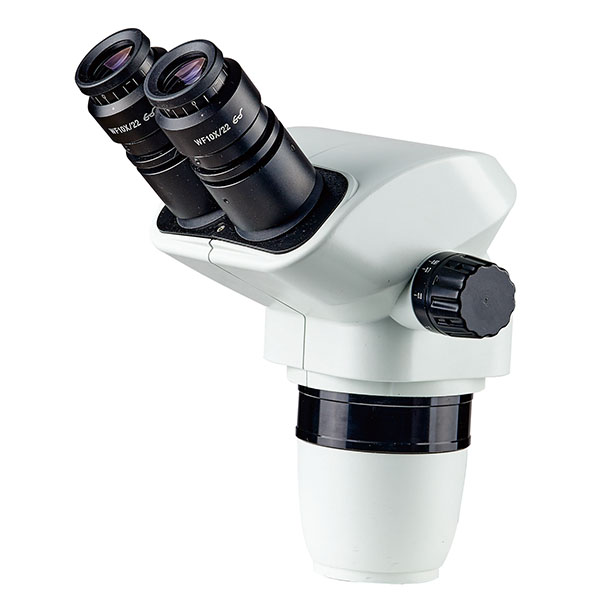

    Main Body
    Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
    Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters
    Objective
    0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1

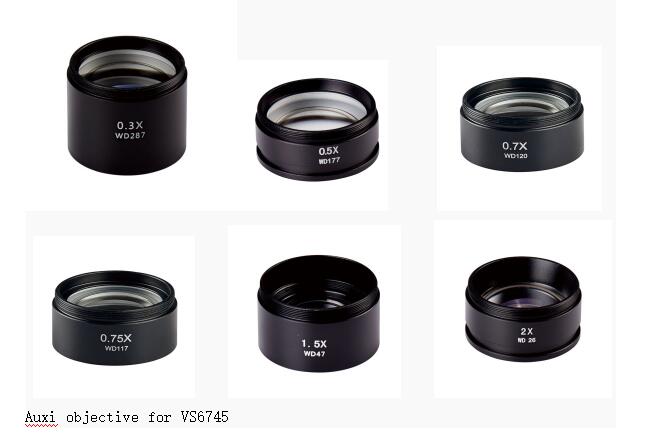

    Aux Lens
    0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

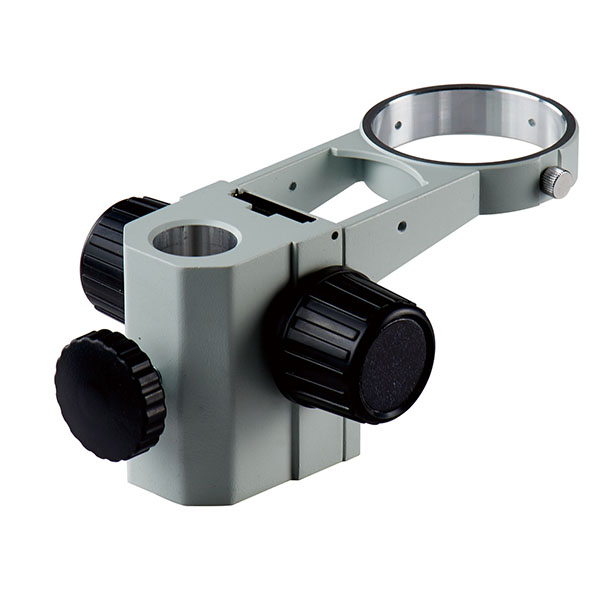

    Focusing Mount
    A1 focusing mount with vertical working distance 50mm

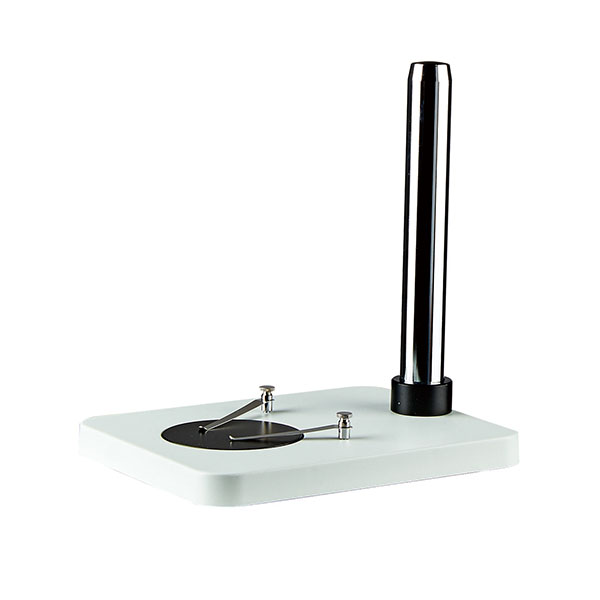

    Stand
    B1 pole stand
    Illumination
    Fluorescent lamp, LED ring light

    Product Show

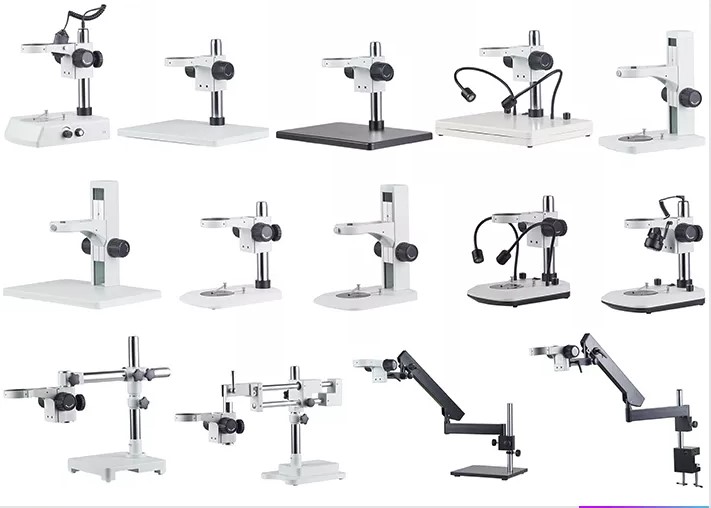

    Product Classification
