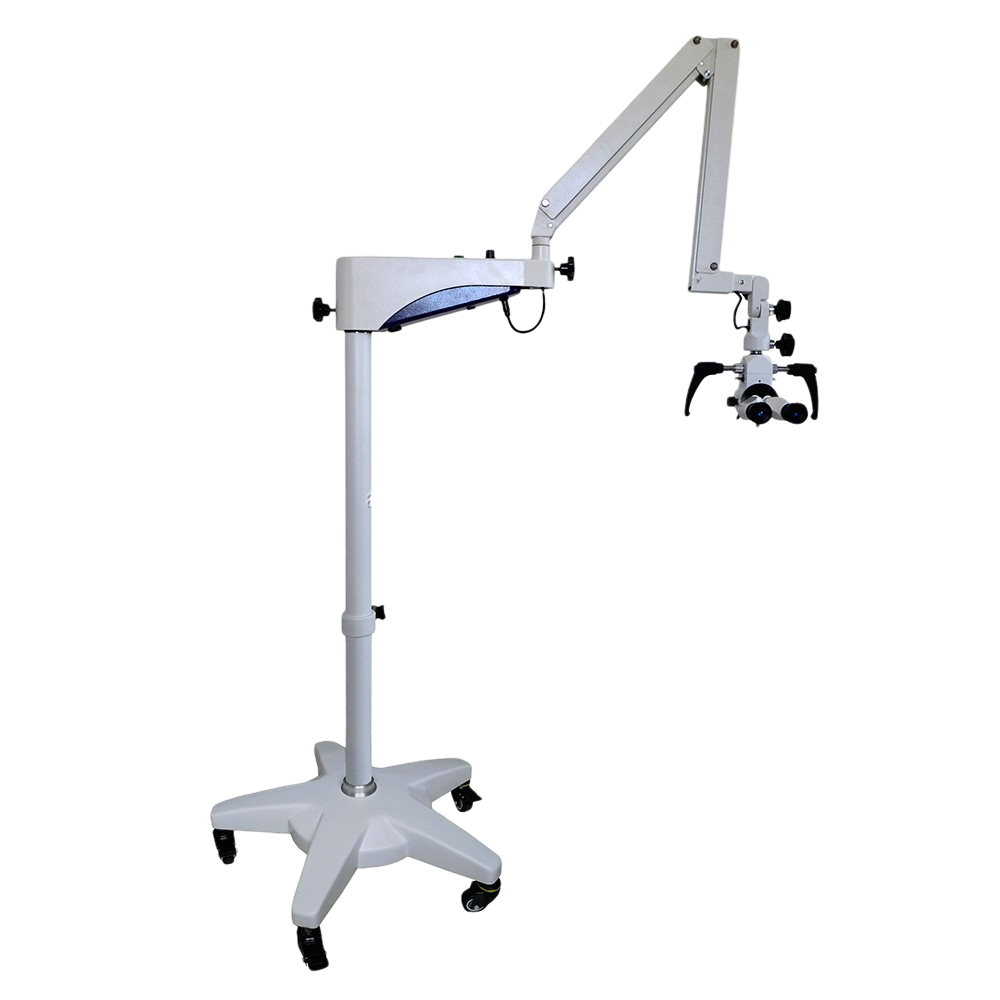

YSX-130 dental ent surgical operating microscope with cheap price

    Quantity:
    Contact Now
    YSX-130
    minimum order:
    1 set
    Country of Origin:
    Shanghai,Qingdao,Shenzhen etc.
    • Warranty:1 year
    • Customized support:OEM
    • Place of Origin:Zhejiang, China
    • Brand Name:Vanco
    • Model Number:YSX-130
    • Theory:Operating Microscope
    • Drawtube:BINOCULAR
    • Product name:Operation Microscope
    • Magnification:3 Step Zoom Magnification
    • Application:Hospital
    • Power Supply:100~240V
    • Focusing:Fine Focusing 10mm
    • Filter:Build-in green and yellow filters
    • Magnification changer:3-step: 0.6X, 1X, 1.6X
    • Interpupillary distance:50mm-80mm
    • Certificate:CE ISO
    • Observation angle:45°tilted
    Product Description

    Product Application

    RB Series Surgical Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.

    SPECIFICATIONS FOR RB-130 Surgical Operation Microscope
    Item
    YSX130
    Binocular observation
    45º Tilted
    Magnification of binocular
    6X
    Interpupillary distance
    50mm-80mm
    Diopter
    ±5D
    Magnification changer
    3-step magnification change: 0.6X,1X,1.6X
    Focal length of objective
    Two objectives: F=200 & F=300mm (M45x0.75mm)
    Total magnification
    3X, 5X, 8X, 4.7X, 7.5X, 12X
    Linear field
    60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
    Beamsplitter
    50:50 Beamsplitter
    Video camera adapter
    C-mount 1/3 inch video camera attachable
    Fine focusing range
    10mm
    Filter
    Built-in green and yellow filters
    Balancing arm
    2-part arm with universal joints, counterweight adjustable and can be locked
    Illumination system
    Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx
    Stand
    2-part column fitted on the five-star base with casters
    Optional accessories

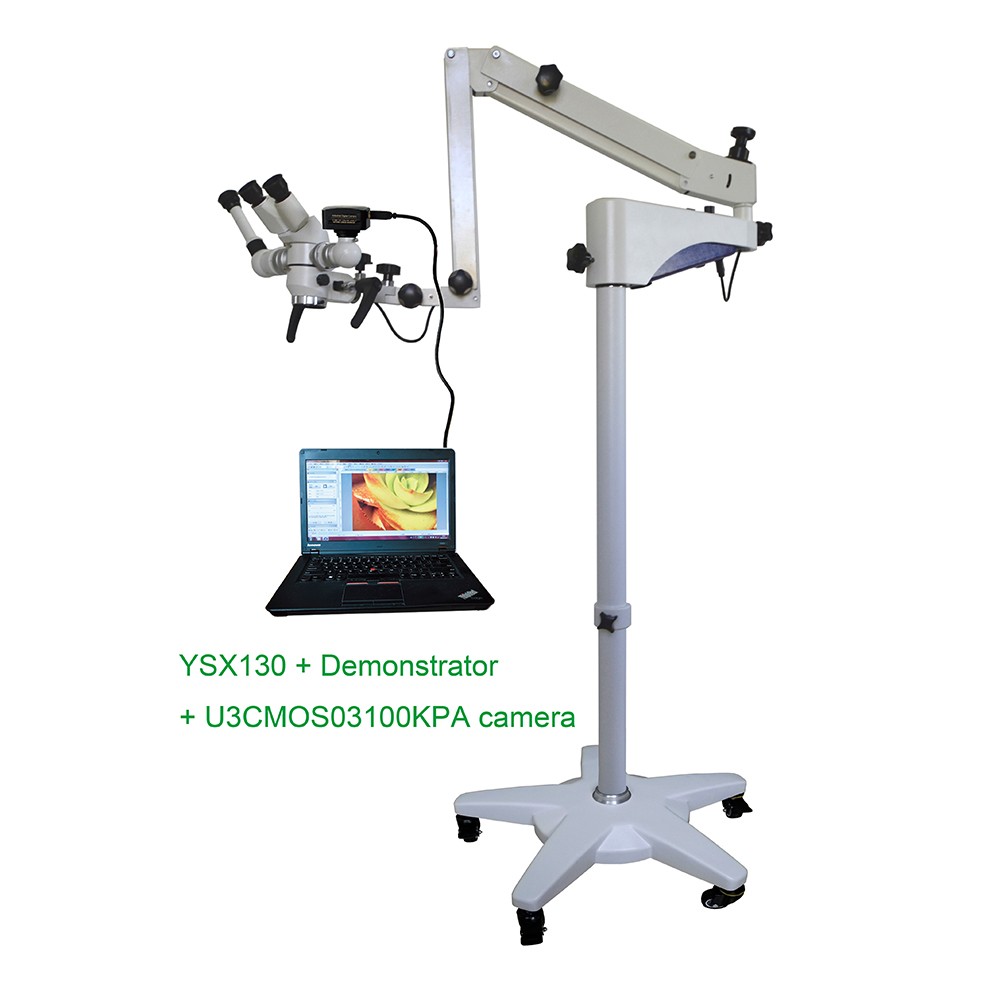

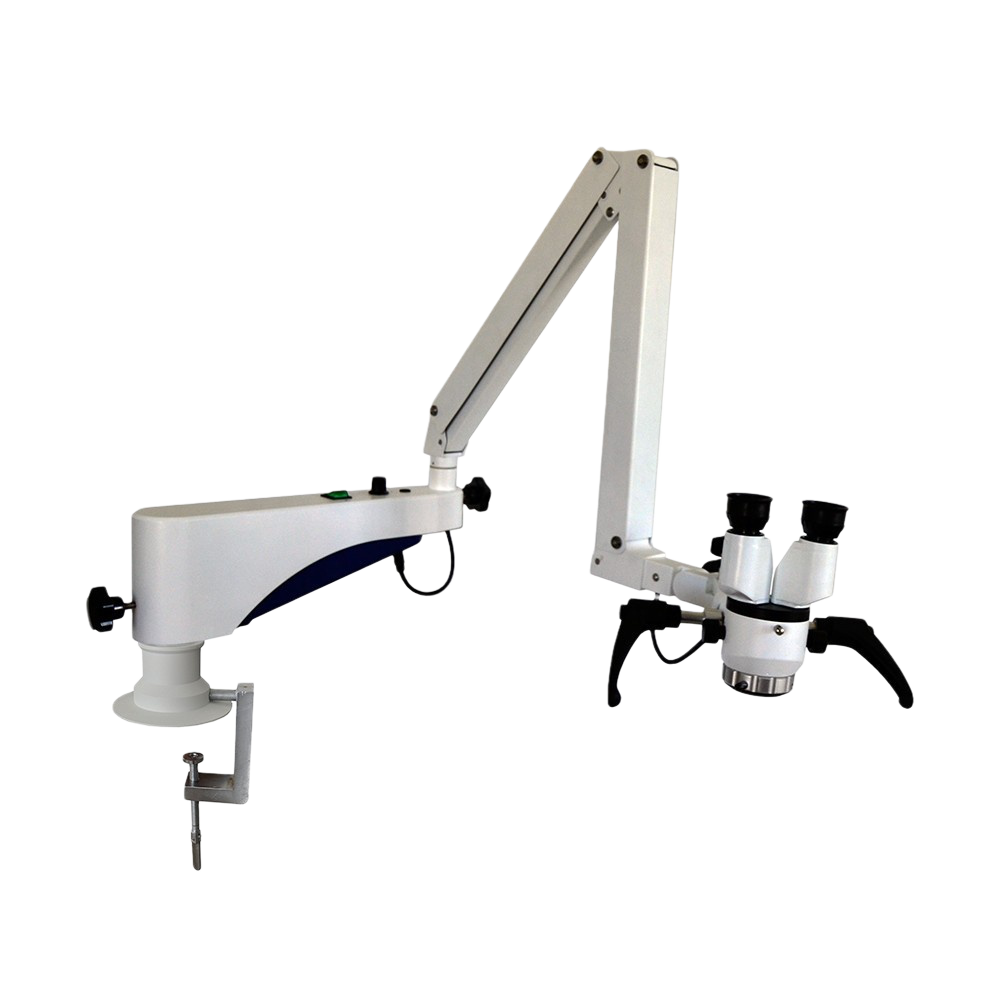

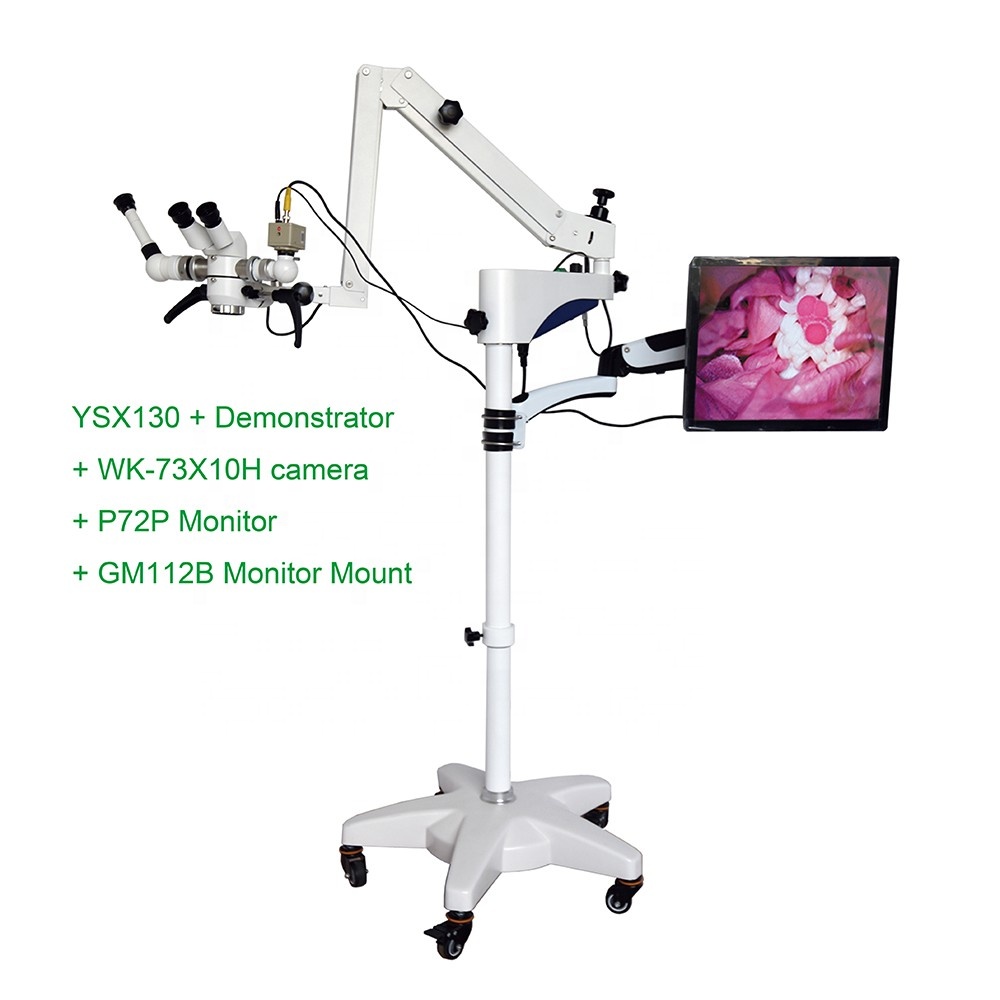

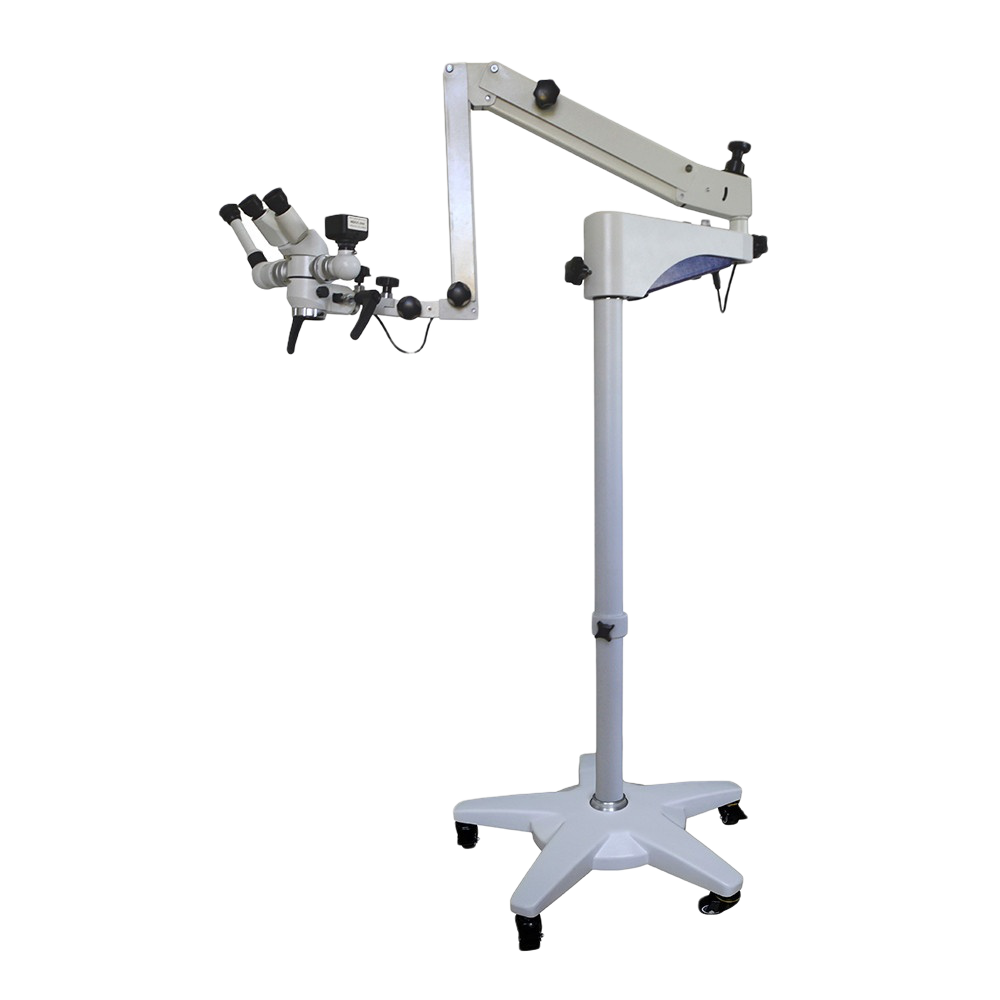

    Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, XFCAM1080HPD, WUCAM0720PA, ICMOS03100KPA, HD200, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S24E360H, S24F350FH, P72P), Objective F=250mm & F=400mm, Table mount clamp, Table mount bracket
    images

    Balancing Arm

    2-part arm with universal joints,

    counterweight adjustable and can be locked

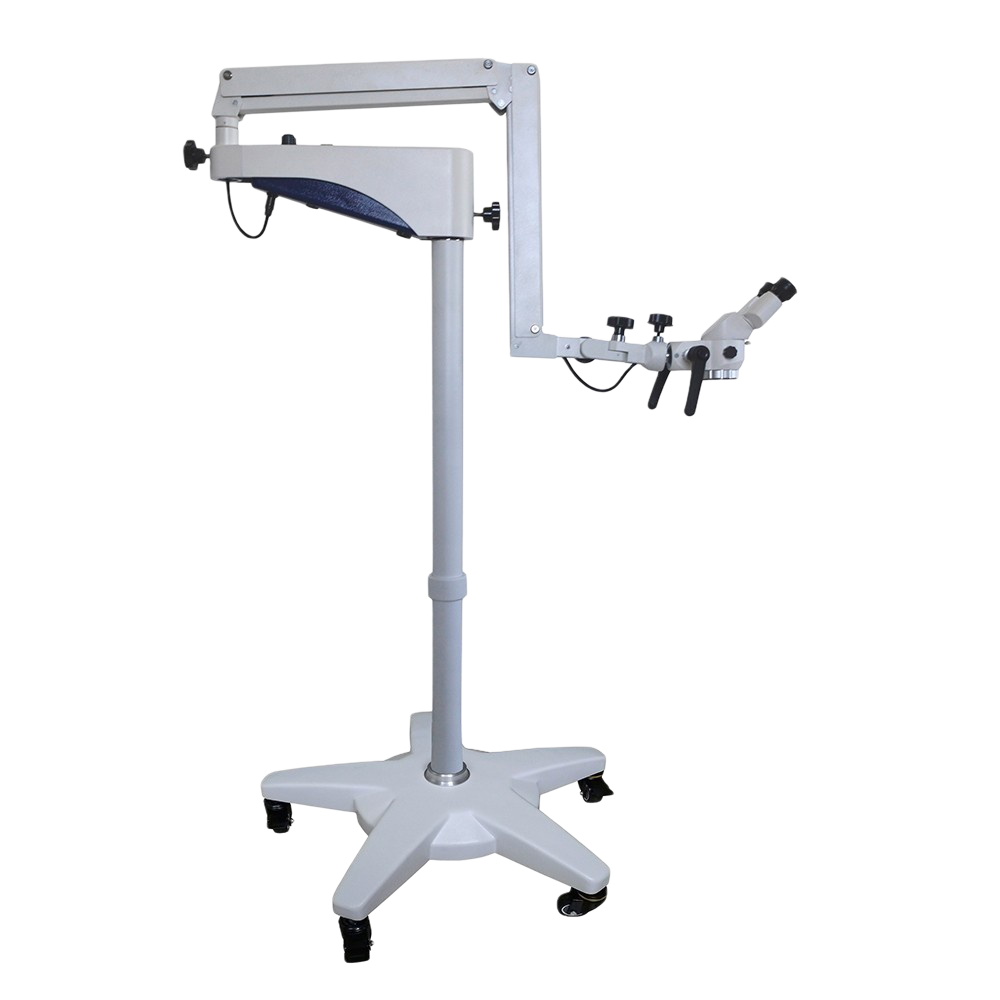

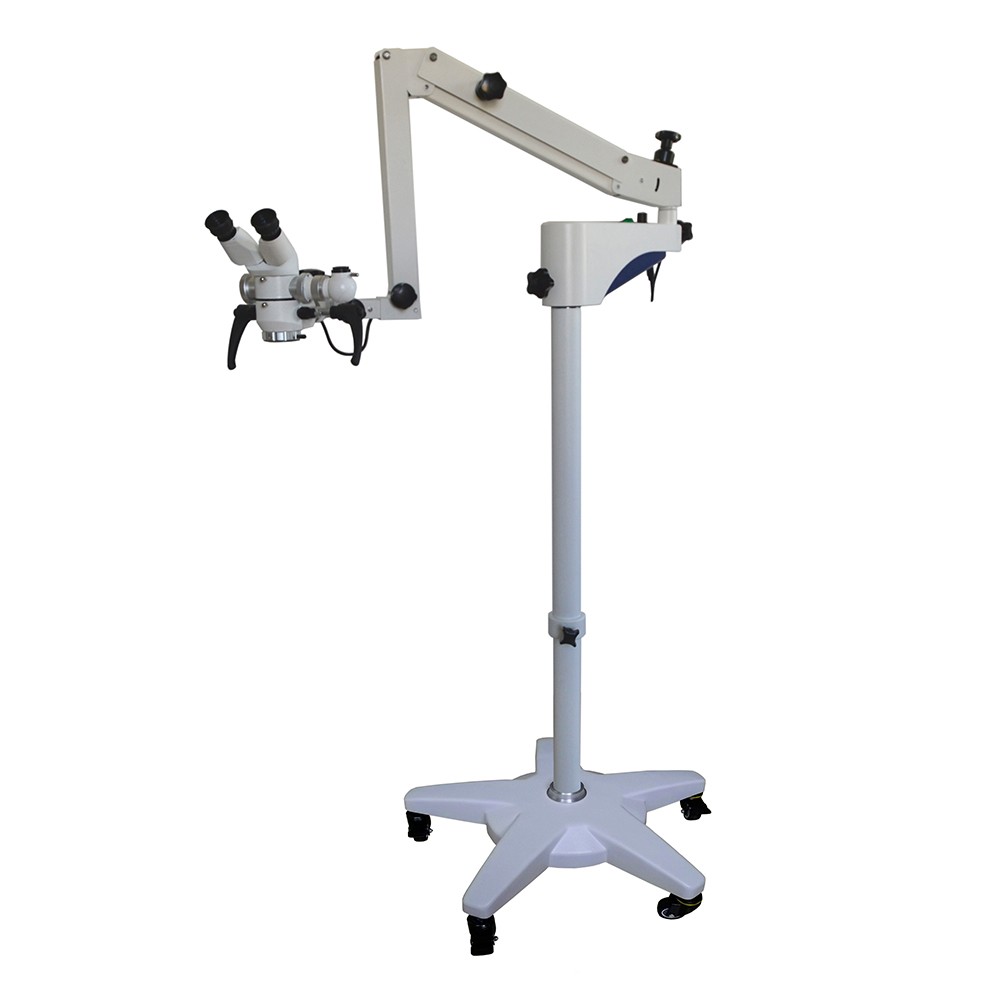

    Floor Stand

    2-part column fitted on the five-star base with casters

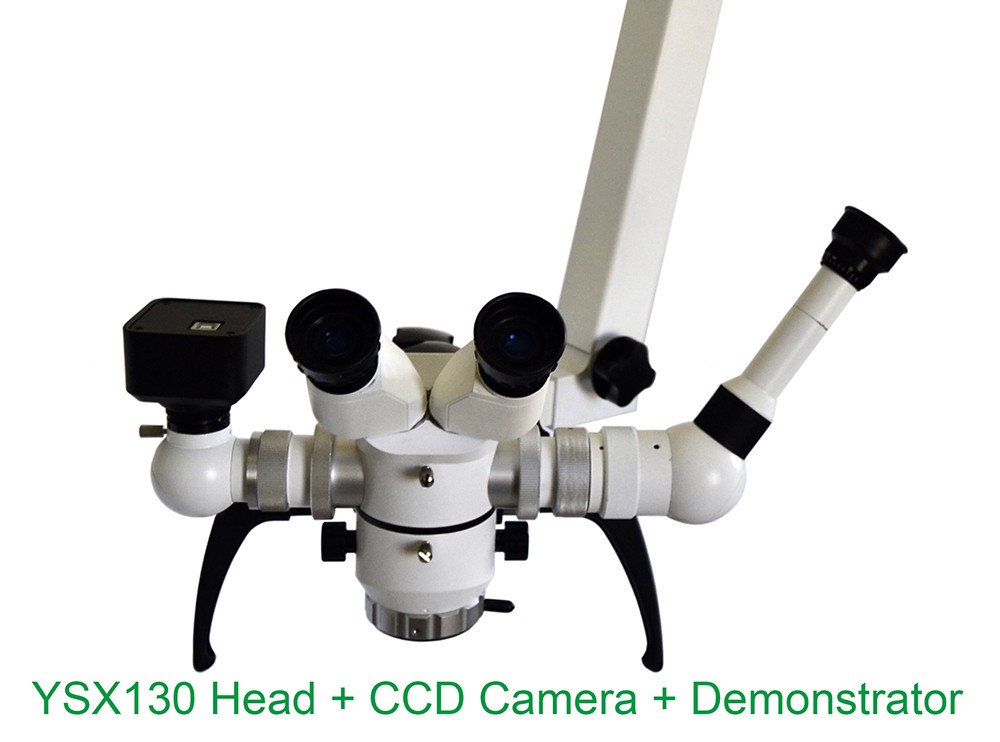

    YSX130 Head

    Observation angle: 45°tilted
    With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable

    Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx

    Packing & Delivery

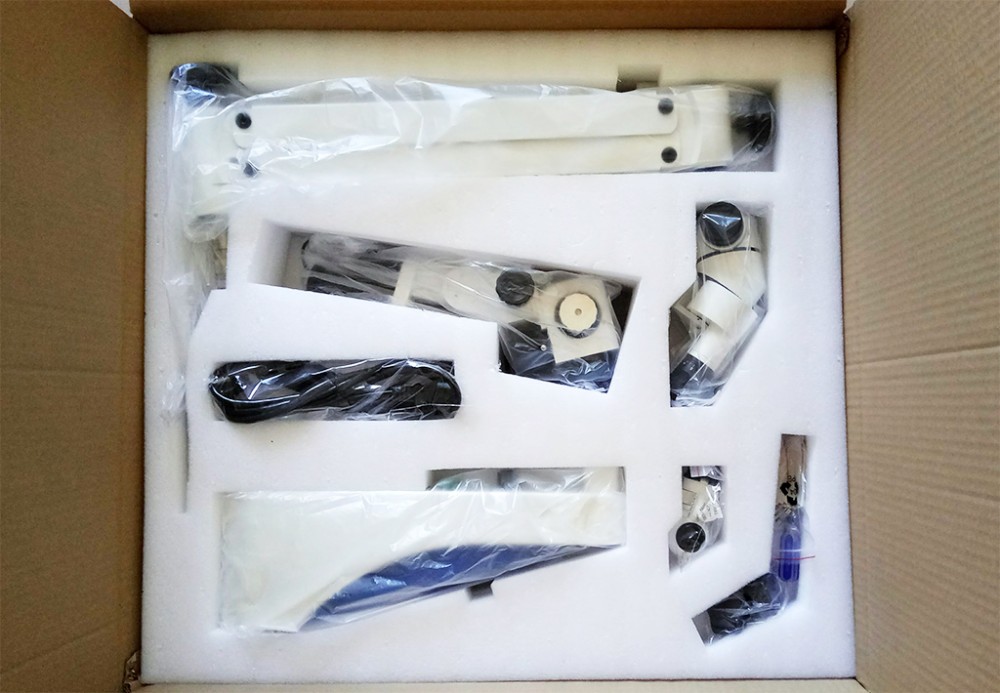

    Main Unit Packaging
    Size
    86cm (L) * 66cm(W) * 25cm (D)
    Weight
    18kg
    Packaging Details
    The normal package is carton wooden ,If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

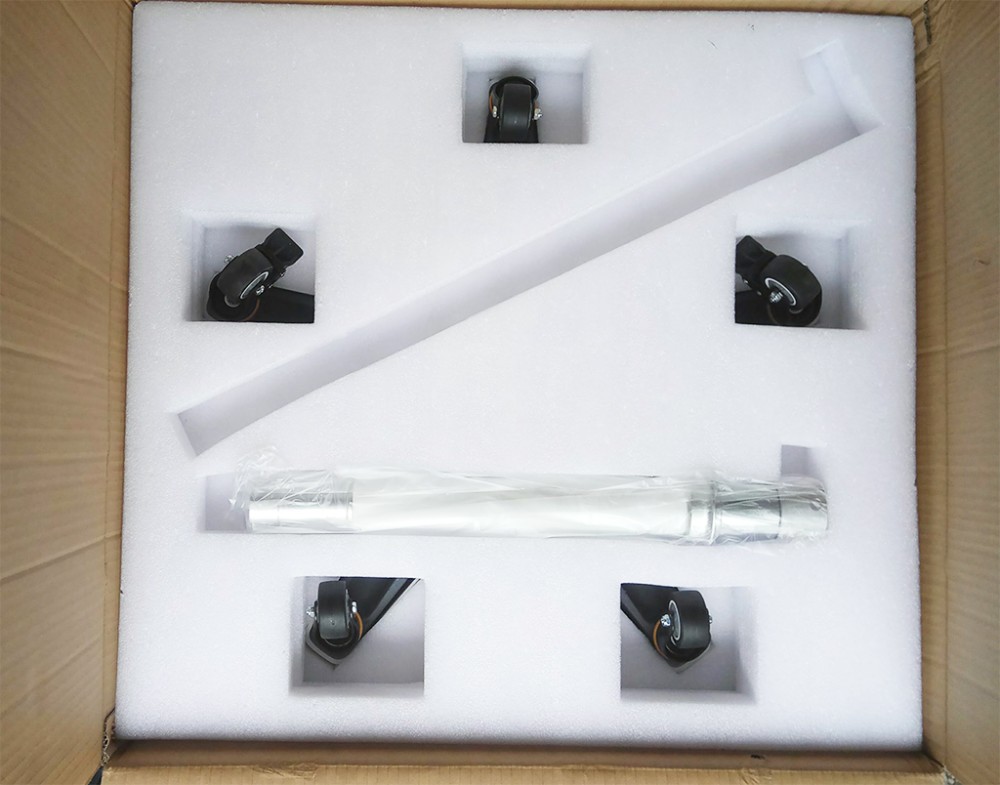

    Bracket Packaging
    Size
    73cm(L) * 68cm (W) * 26cm (D)
    Weight
    26kg
    Packaging Details
    The normal package is carton wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
