SGW-1 LED automatic Polarimeter Lab Polarimeter With LED Lamp

Quantity:
Contact Now
SGW-1
minimum order:
1 piece
Country of Origin:
Ningbo ,Shanghai
  • Warranty:1 year
  • Customized support:OEM, ODM, OBM
  • Place of Origin:zhejiang
  • Brand Name:VANCO
  • Model Number:SGW-1
  • Product name:Disc polarimeter
  • Measurement:-45°~+45°
  • Minimum indicating value:0.001°
  • sample transmittance:1%
  • Operation Wavelength:589.44nm
  • Length of Test Tube (100mm and 200mm):1 each

Product Information

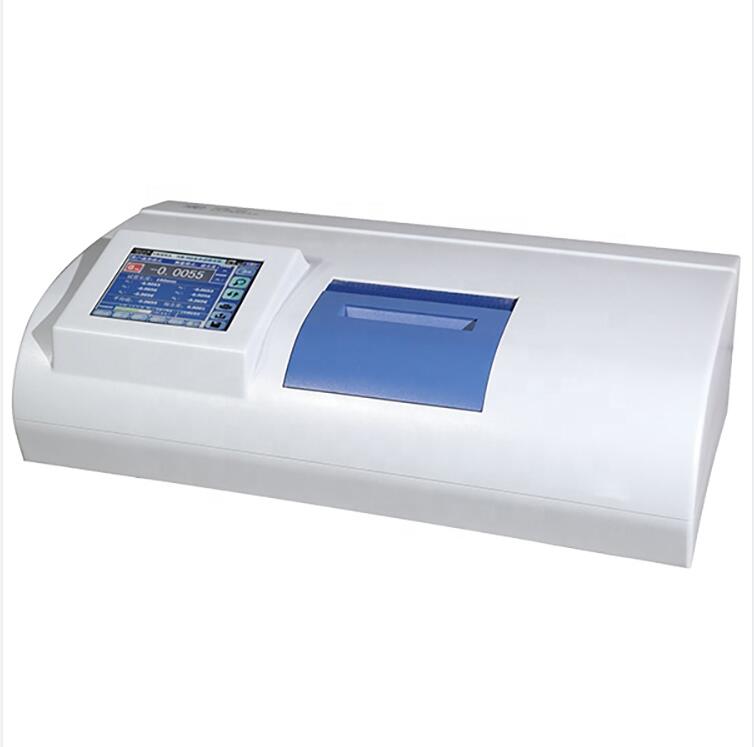

SGW-1 Automatic Polarimeter
Characteristic
Need not prewarm when turning on;
Measuring specific rotation, optical rotation, sugar degree and concentration;
Automatic repetition-measurement for 6 times, and calculation of average value and means square root;
Peltier principle to control the temperature;
Measurement of dark-colored sample;
USB & RS232.


Parameters/Model
SGW-1
Measurement modes:
Optical rotation, specific rotation, sugar degree, concentration
Light source:
LED + interference filter
Measurement range:
±45°（optical rotation）
±120°Z（sugar）
Accuracy:
±0.01° (-15° ≤optical rotation ≤+15°)
±0.02° (optical rotation<-15° or optical rotation>+15°)
Minimum indicating value:
0.001°(optical rotation)
sample transmittance:
1%
Repeatability:
0.002 °( optical rotation)
Display:
7 Inch Colorful Touch LCD
Operation Wavelength:
589.44nm
Temperature control range:
-----
Temperature Accuracy:
-----
Test Tube:
100mm/200mm (regular)
Interface:
RS232/USB
Weight (Gross):
43kg
Overall Dimensions:
820mm 500mm 510mm


Product Show






Product Classification




Company Profile

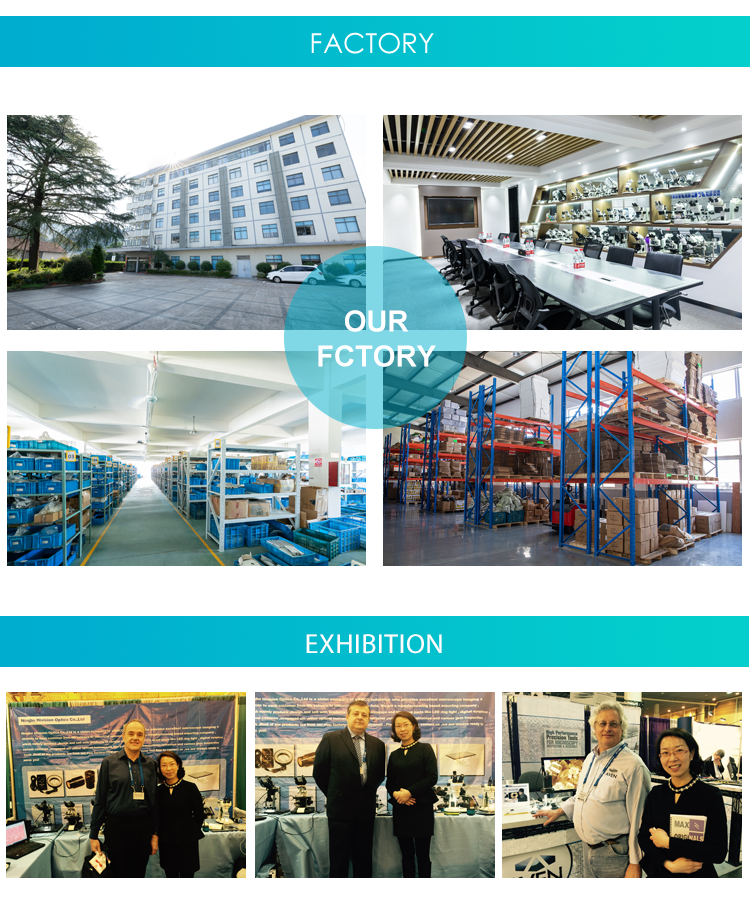

Factory




Our Certificate




Transport&Payment




FAQ


.
FAQ
1. who are we?
We are based in Ningbo Zhejiang, China, start from 2011,sell toNorth America(15.00%),South America(10.00%),MidEast(5%),Africa
（5%）Europe(40%),Eastern Asia(5%),South Asia(15%),Southeast Asia(10%）

how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Microscope,Microscope Accessories,physical instrument ,gem inspection instrument , solar-energy outdoor light etc

4. why should you buy from us not from other suppliers?
our is a company with R&D,Manufacture,quality and Marketing Department; we mainly focus on Microscope&tool for more than 10
years,we also accept OEM/ODM orders, We cooperate with more than 50 reliable partners for years for one-stop shopping .

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,

Accepted Payment Currency:USD,CNY,
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash
Language Spoken:English,Chinese,various language online writing is okay
