BMC303-W 40x -1600x Laboratory Biological Trinocular Thermostat Microscope for Veterinary

    Quantity:
    Contact Now
    BMC303-W
    minimum order:
    1 piece
    Country of Origin:
    shanghai
    • Place of Origin:Zhejiang, China
    • Brand Name:Vanco
    • Model Number:BMC303-W
    • Theory:Biological Microscope
    • Drawtube:Trinocular
    • Magnification:40x-1600x
    • Objective:achromatic -4X, -10X, -40X, -100X
    • Product name:BMC303-W
    • observing tube:30 inclined, interplanetary distance 48-75mm
    • Application:Life Science, Geology, Material Science & Forensics
    • Eyepiece:WF10X/20mm, WF16X/15mm,
    • Illumination:LED Illumination
    • Condenser:Abbe NA=1.25
    • Certificate:ISO 9001
    • Warranty:1 Year
    Product Description

    BMC 303-W digital thermostat microscope is widely used in the baking, drying and other temperature test of the sample. It is an essential tool for biological genetic, medical and health, environmental protection, biochemical laboratory, analysis room and educational research. It is mainly used for animal husbandry Digital thermostat microscope is one of the essential equipment for artificial insemination laboratories . Most of the arificial insemination laboratory operations are not completed instantly, the semen needs stable temperature, 37℃ sperm has the strongest vitality, most of the operation semen need to keep At about35℃-37℃), medical sperm and blood of the breeding.

    Part Name
    Specification
    BMC303-W
    Magnification
    40-1600X
    196 Finite Trinocular
    Viewing head

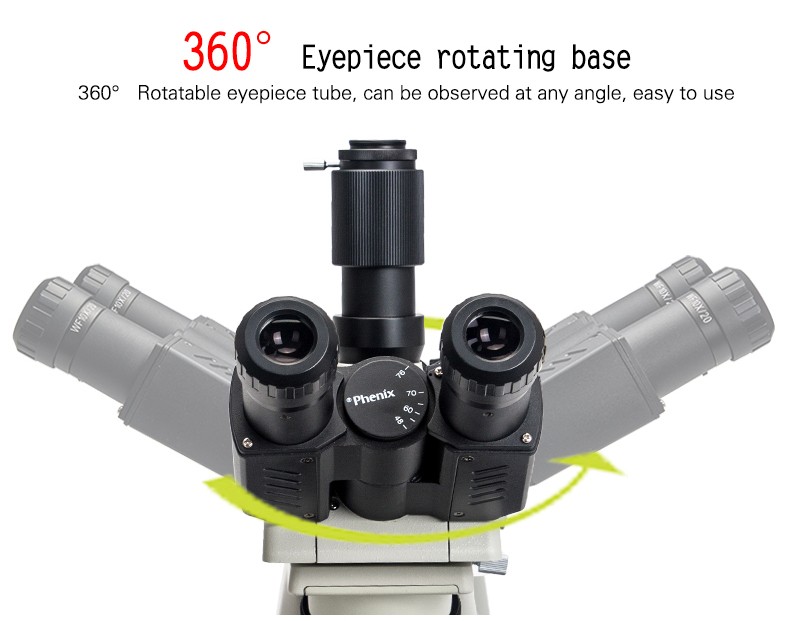

    Compensation binocular head,30° inclined,interpupillary distance 48-75mm
    Compensation trinocular head,30° inclined,interpupillary distance 48-75mm
    √
    Infinity compensation binocular head,30° inclined,interpupillary distance 48-75mm
    Infinity compensation trinocular head,30° inclined,interpupillary distance 48-75mm
    Eyepiece
    WF10X20MM,16X15MM
    √
    Nosepiece
    4 Holes revolving nosepieces,inward
    √
    195N Achromatic Objective
    4X,10X,40X(Spring),100X(Spring,Oil)
    √
    195 Plan Achromatic Objective
    PL4X
    PL10X
    PL40X(Spring)
    PL100XSpring,Oil)
    Focusing System
    Coarse & fine coaxial focusing knob,coarse focusing range 22mm,fine focusing graduation 0.002mm
    √
    Condenser

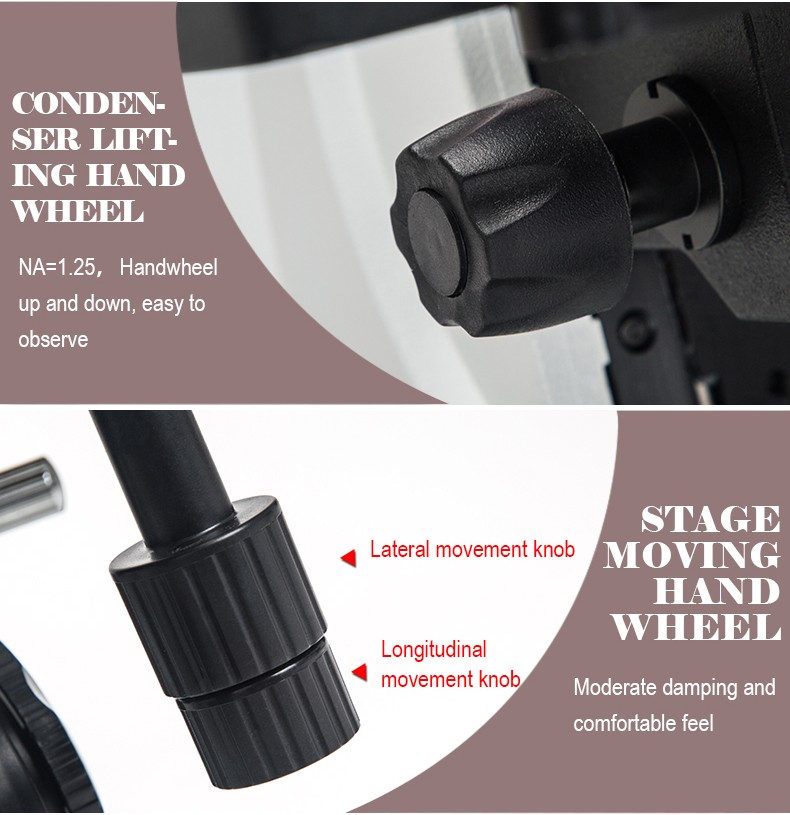

    Abbe condenser N.A.=1.25,with iris diaphragm,center adjustment,and height adjust knob.
    √
    Upper light
    1W LED cool light source with lens(No standard configuration,optional)
    Bottom light
    LED,3W/1A,Stepless adjustment light,no screen flashing
    √
    Power
    Switch power adapter 12V/4A
    √
    Packing
    Foam+carton
    √
    Dimming
    Digital circuits,precision stepless adjustable light,no screen flashing
    √
    Other Optional
    0.5XC mount
    0.65XC mount
    1XC mount
    Homothermal stage
    homothermal range
    room temperature -50℃
    control accuracy
    ≤±1℃
    Heating power
    12V
    power
    36W
