N510 40x-1000x Fiver Person Multi-viewing Penta Microscope teaching microscope
Quantity:
VBN510
minimum order:
1 piece
Country of Origin:
Ningbo
- Warranty:other
- Customized support:ODM, 1, OEM
- Place of Origin:Zhejiang, China
- Brand Name:VANCO
- Model Number:VBN510
- Theory:Biological Microscope
- Drawtube:Other
- Magnification:40X-1000X
- Optical System:lnfinite Optical System
- Eyepiece:Extra Wide Field Eyepiece WF10X/20
- Objective:lnfinite Plan Achromatic Objective
- Nosepiece:Inverse Quintuple Nosepiece
- Stage:Double Layers Mechanical Stage
- Condenser:Condenser swing condenser N.A.0.9/0.25
- Focusing:Coaxial Coarse&Fine Adjustment
- lllumination:External lllumination
- Pointer:Green LED Pointer
Product Description
40x-1000x Fiver Person Multi-viewing Penta Microscope VBN510
Description and Notes
Multi-viewing Microscope allows five people observation at the same time.
With the features of Infinite Optical System, Effective Illumination, LED Pointer and images Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration
Specification
MUL.06.N510 Five-Person Viewing Multi-Viewing Biological Microscope | VBN510 | |
| Optical System | lnfinite Optical System Viewing | |
| Compensation Free trinocular Head,lnclined at 30degree,360degree Ratatable,lnterpupilary 48-75mm | 1pc | |
| Compensation Free binocular Head,lnclined at 30degree,360degree Ratatable,lnterpupilary 48-75mm | 4pc | |
| Eyepiece | Extra Wide Field Eyepiece WF10X/20 | 10pcs |
| lnfinite Plan Achromatic Objective | 4X | |
| 10X | ||
| 40X(S) | ||
| 100X(S,Oil) | ||
| Nosepiece | Inverse Quintuple Nosepiece Objective | |
| Stage | Double Layers Mechanical Stage 185x142mm, Moving Range 75x55mm | |
Condenser | Condenser swing condenser N.A.0.9/0.25 | |
| Focusing | Coaxial Coarse&Fine Adjustment,Fine Division 0.002mm | |
| lllumination | External lllumination,Halongen Lamp 12v50w | |
| Pointer | Green LED Pointer ,Brightness Adjustable | |
Optional Accessory
| Video Adapter | C Mount 1x | |
| C Mount 0.5x |

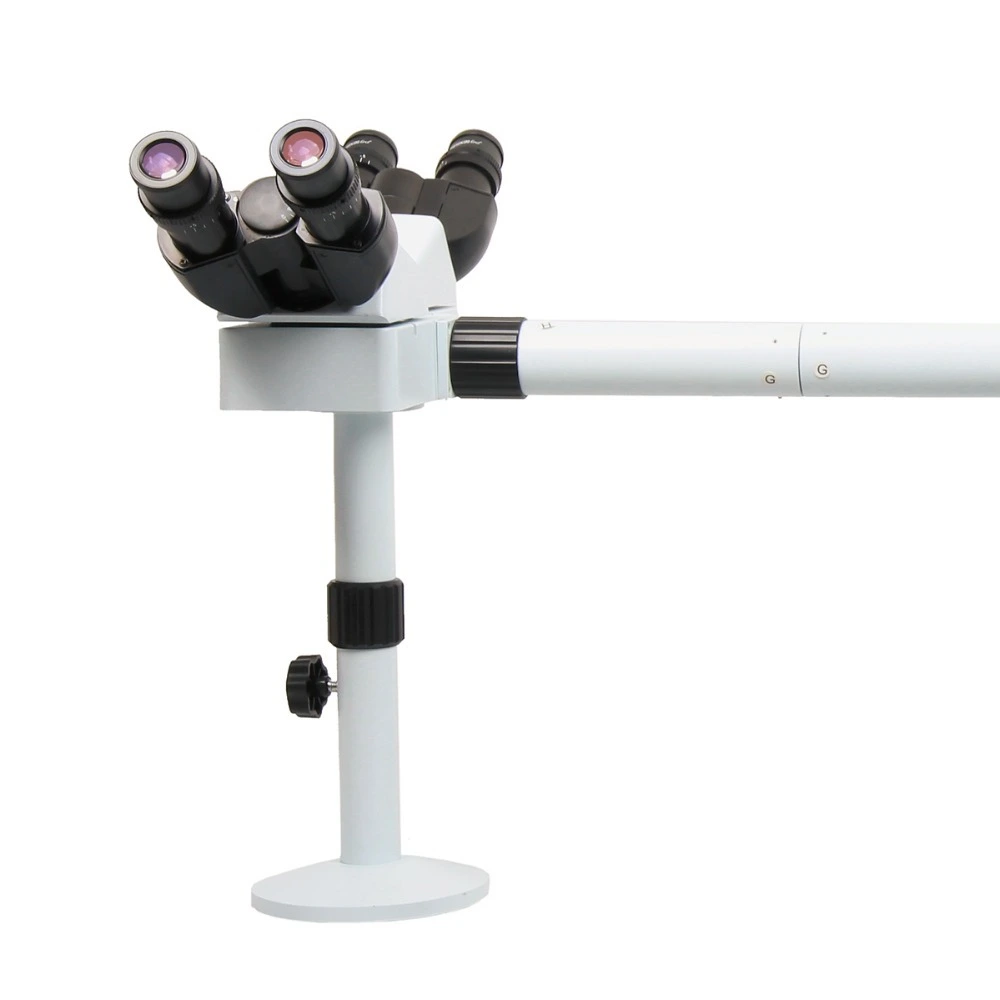

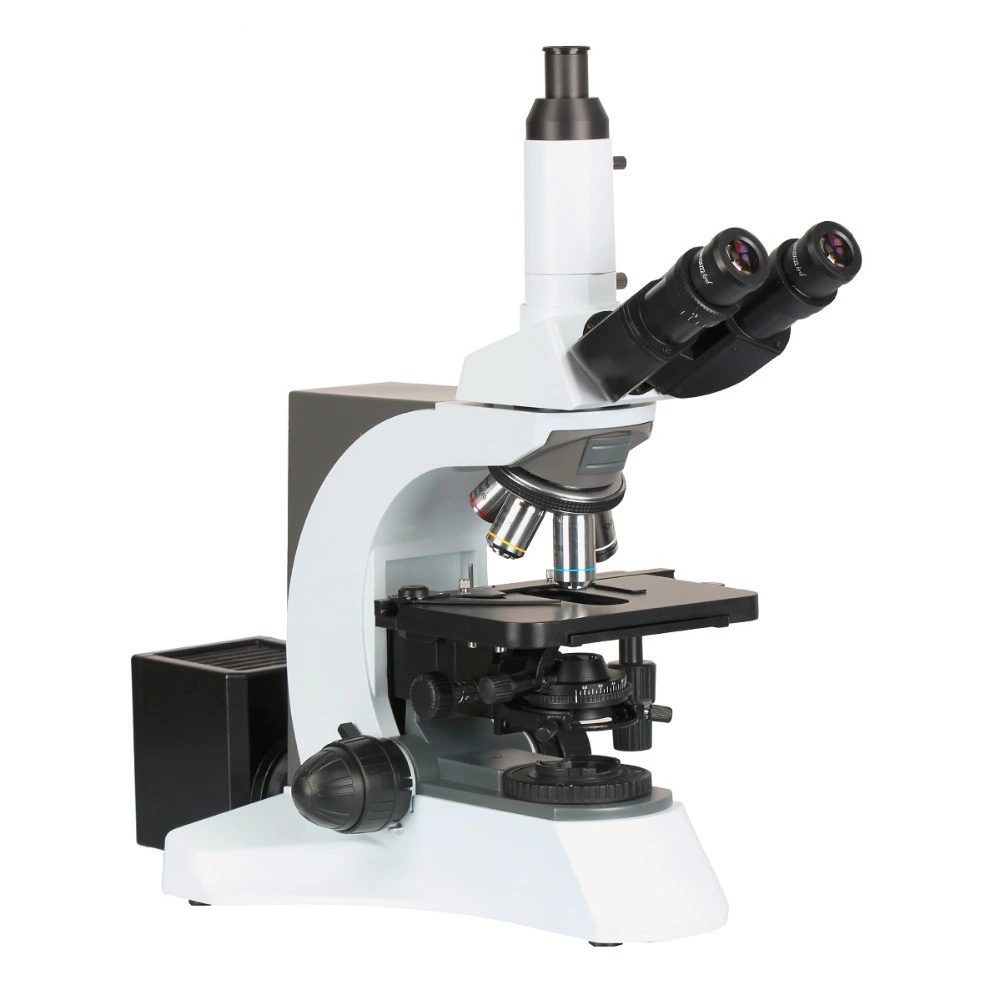

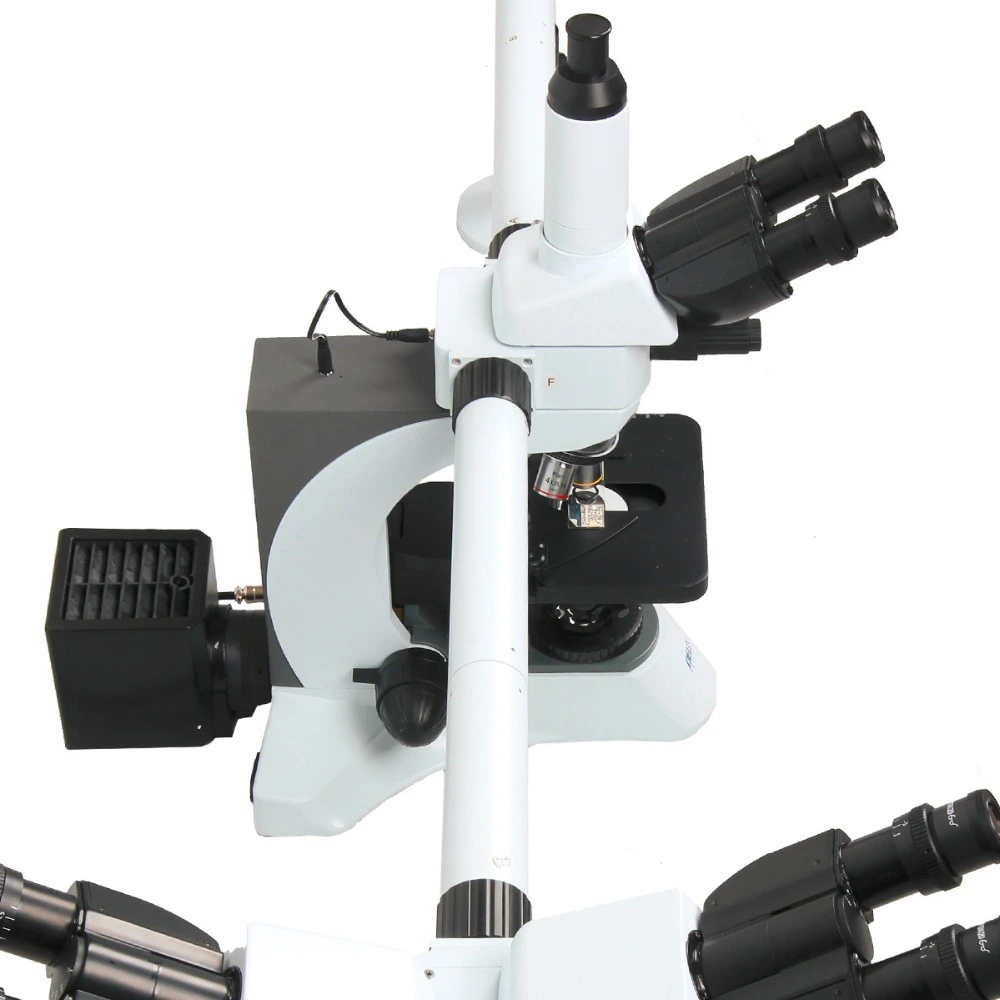

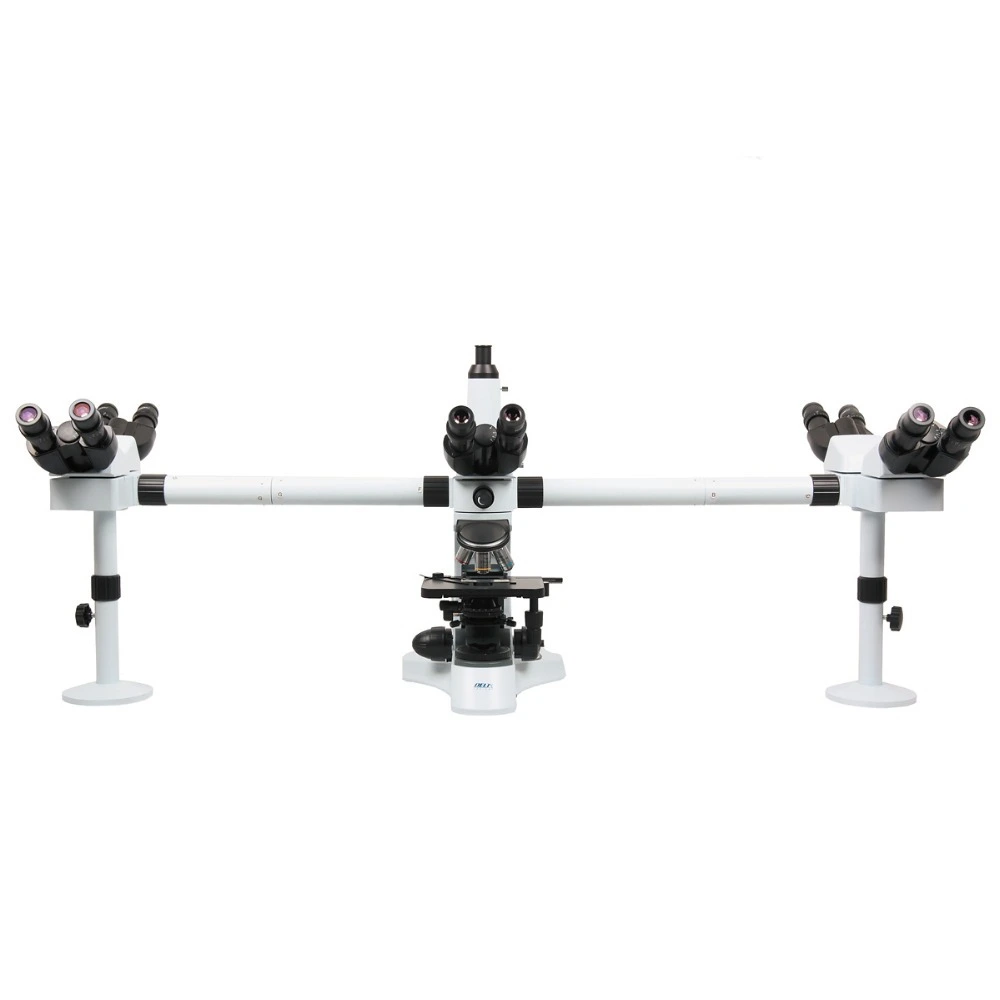

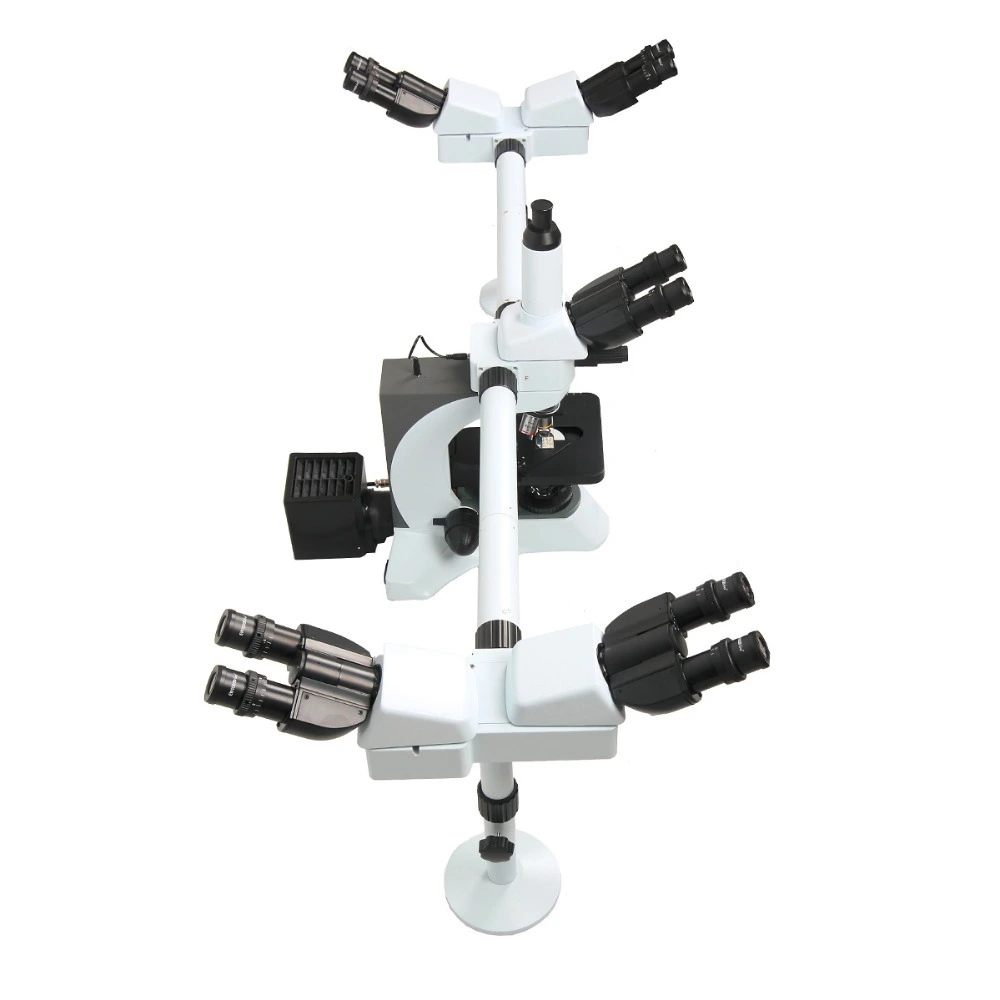

Product Show
