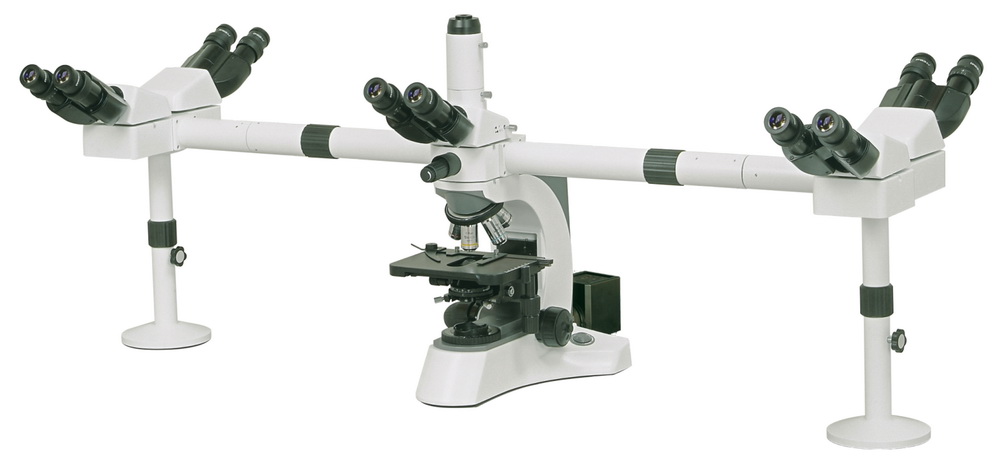

N510 Penta-Head multi View Microscope (for 5 Users) with Infinite Optical System (Anti-Fungus)

Quantity:
Contact Now
N510
Country of Origin:
Ningbo or Shanghai
  • Warranty:other
  • Customized support:OEM
  • Place of Origin:Zhejiang, China
  • Brand Name:Vanco
  • Model Number:N510
  • Theory:Biological Microscope
  • Drawtube:Other
  • Wide Field Eyepiece:EW10X/ 20:10PCS
  • Infinite Plan Achromatic Objective:4X,10X,40X(S) ,100X(S,O)





N510 Teaching Infinite Optical System Multi-viewing Microscope



1.Inclined at 30°, 360° Rotatable, Interpupilary 48-75mm:1PC
2.Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary 48-75mm: 4PCS
3.Eyepiece Extra Wide Field Eyepiece EW10×/ 20:10PCS
4.Nosepiece: Inverse Quintuple Nosepiece
5.Objective: Infinite Plan Achromatic Objective 4×,10×,40×,100×



6.Condenser Swing Condenser N.A.0.9/ 0.25
7.Focusing:Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm
8.Stage:Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm
9.Kohler Illumination: External Illumination, Halogen Lamp 24V/ 100W
10.Pointer Green LED Pointer , Brightness Adjustable
