Metallurgical Microscope
Illumination: External power adapter,input 100V-240V,output 15V13.4A,light intensity adjustable
Specification:
Optical system | Infinity color correct optical system |
Viewing head | 45 degree inclined trinocuar viewing head,360 degree rotatable;interpupllary distance 50-75mm,binocular:trinocular=100:0or 0:100 |
Eyepiece | High eye point wide field plan eyepiece PL10×22mm,with adjustable diopter,reticle attachable |
High eye point wide field plan eyepiece PL15X16mm,with adjustable diopter | |
Objective | Long working distance plan achromatic metallurgical objectives 5X,10×,20X,50X,100X |
Long working distance bright &dark field plan achromatic metallurgical objectives 5X,10X,20X,50X,100X | |
Nosepiece | Inward quintuple bright field nosepiece(DIC slot),with built-in magnification sensor |
Inward quintuple bright &dark field nosepiece(DIC slot),with built-in magnification sensor | |
Frame | Reflected frame low-position coaxial focusing system,coarse range 9mm (up 6.5mm,down 2.5mm),fine precision 0.002mm; with upper limit and tension adjustment;with switch for bright and dark field;with variable field diaphragm and aperture diaphragm,both center adjustable;with slots for filters and polarizing kit;with light intensity indicator;with infrared induction with magnification display |
Ilumination | External power adapter,input 100V-240V,output 15V13.4A,light intensity adjustable |
Stage | Three layers rackless stage,size:240mm(W)×250mm (L),moving range:50X50mm;low-position handle knob |
Camera adapter | 0.35X,0.5X,0.65X,1Xfocusing C-mount |
Others | Polarizer,fixed analyzer,360 degree rotatable analyzer,DIC attachment,filters,high precision micrometer |

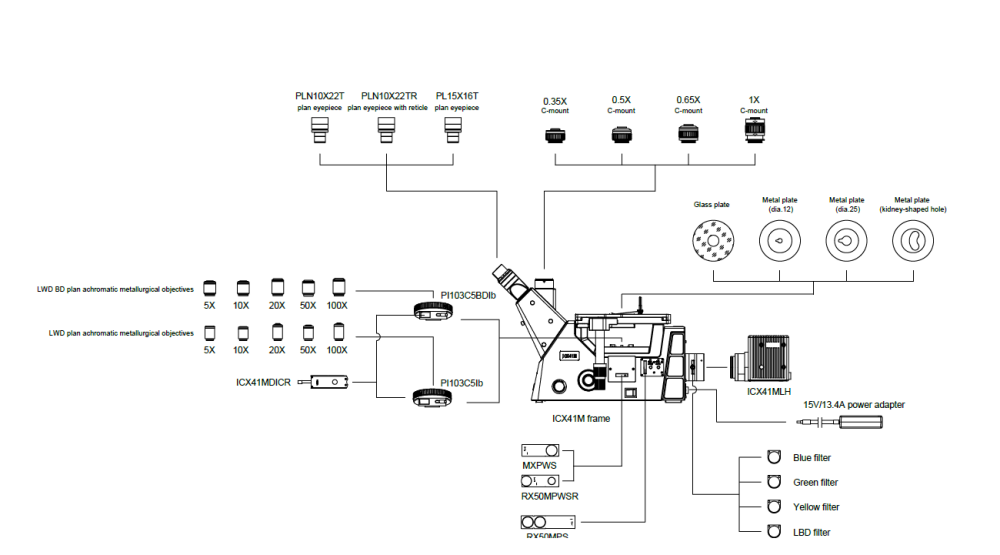

Diagram:

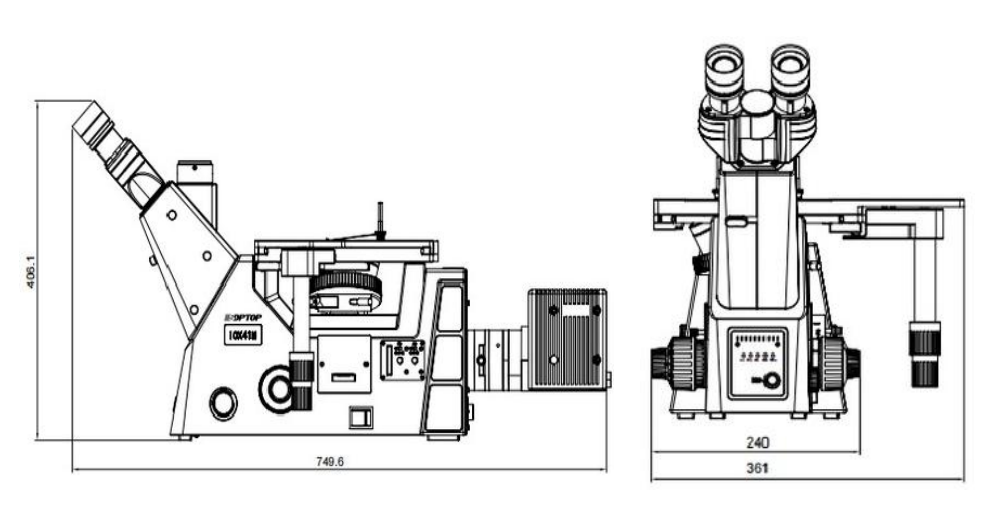

Dimension:
