Metallurgical Microscope
Illumination: wide voltage 100-240v with inclined illumination device, single high-power 5W LED,
warm color (color temperature 2850k-3250k).
Specification:
Optical system | Infinity color correct optical system |
Observation | Bright filed / Dark field / Polarizing / DIC |
Viewing head | Tilting trinocular head (Erect image), 0-35 degree adjustable, interpupillary distance: 50-76mm, splitting ratio: 100:0 or 0:100 |
Eyepiece | High eye point wide field plan eyepiece PL10X/25mm, with adjustable diopter; reticle attachable. |
Objective | BD semi-APO DIC objective 5X/10X/20X/50X/100X |
Long working distance BD semi-APO DIC objective 20X | |
Long working distance BD semi-APO objective 50X/100X | |
Nosepiece | Electronic BD sextuple nosepiece with DIC slot |
Stage | 14 X 12 inches three-layer mechanical stage with low position coaxial adjustment, size: 718mm X 420mm, moving range: 356mm X 305mm; with clutch handle for quick movement; glass plate for reflected use |
495mm X 641mm electronic stage, moving range: 306mm X 306mm; (3+L/50) μm repeated positioning accuracy | |
Frame | Reflected frame with low position coaxial focus mechanism, coarse range: 35mm, fine precision: 0.001mm. With upper limit and tension adjustment. Built-in 100-240V wide voltage system |
Transmitted & Reflected frame with low position coaxial focus mechanism, coarse range: 35mm, fine precision: 0.001mm. With upper limit and tension adjustment. Built-in 100-240V wide voltage system | |
Illumination system | BD reflected illuminator, with electronic variable aperture and field diaphragm, center adjustable; with switch for changing bright and dark field; with slots for filters and polarizing kit |
Camera adapter | 0.5X / 0.65X 1X C-mount adapte |
Others | Polarizing kit; interference filters; high precision micrometer; DIC attachment |

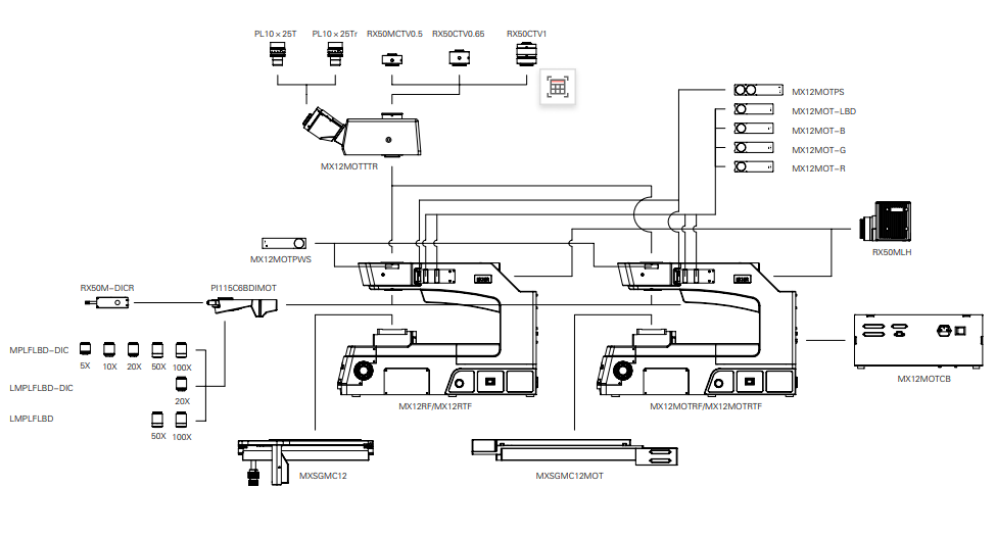

Diagram:
