Metallurgical Microscope
Specification:
Optical System | Infinity color corrected optical system |
Observation | Bright fled/Dark field/Polarizing/DIC |
Viewing Head | Tilting trinocular head(Erect image),5-35°adjustable,interpupillry distance:50-76mm,splitting ratio:100:0 or 0:100 |
Eyepiece | High eye point wide field plan eyepiece PL10X122mm,micrometer attachable |
High eye point wide field plan eyepiece PL10X/23mm,micrometer attachable,diopter adjustable | |
Objective | BD semi-APO metallurgical objective(5X.10X.20X.50X.100X) |
Long working distance BD semi-APO metallurgical objective 50X1100X | |
Nosepiece | Electronic BD sextuple nosepiece with DIC slot |
Frame | Reflected frame with low position coaxial focus mechanism,coarse range:35mm,fine precision:0.001mm.With upper limit and tension adjustment.Built-in 100-240V wide voltage system |
| Transmitted & Reflected frame with low position coaxial focus mechanism, coarse range:35mm, fine precision:0.001mm.With upper limit and tension adjustment.Built-in 100-240V wide voltage system |
Stage | 8 inches three-layer mechanical stage with low position coaxial adjustment,size:525mm×330mm,moving range:210mm×210mm;with clutch handle for quick movement;glass plate for reflected use |
llumination | BD reflected illuminator,with electronic variable aperture and field diaphragm,center adjustable;with switch for changing bright and dark field;with slots for fiters and polarizing kit |
Camera Adapter | 0.5X/0.65X/1XC-mount adapter |
Others | Polarizing kit;interference filters;high precision micrometer;DIC attachment |

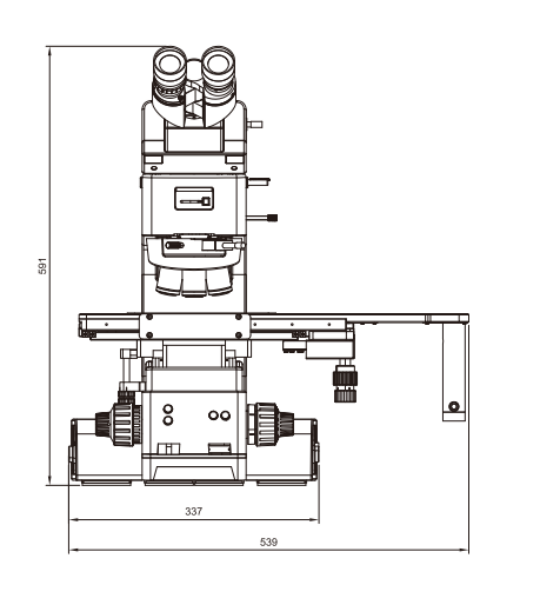

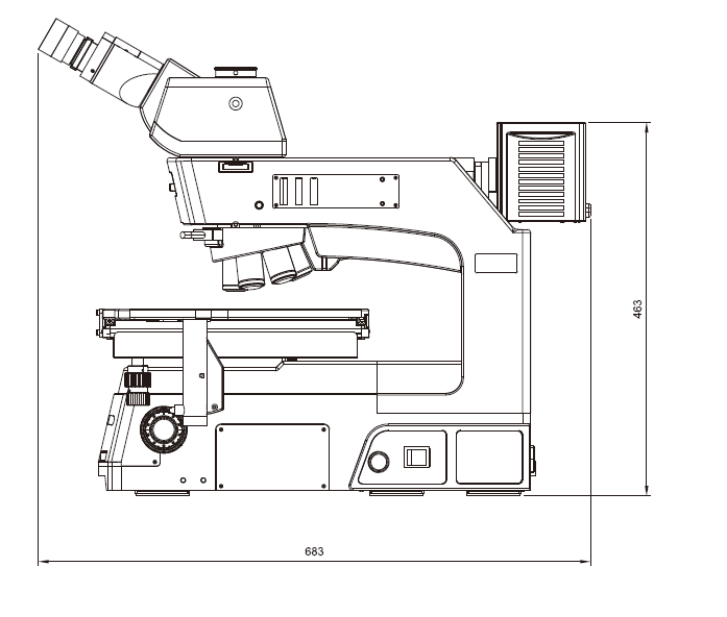

Diagram:
