MDJ Inverted Metallurgical Microscope
● Eyepiece: WF 10×-18 mm
● Metallurgical LWD Infinity Plan Objectives
● Nosepiece: Quadplex
MDJ Metallurgical Microscope Outfits
Items | Specifications | MDJ100 | MDJ200 |
Eyepieces | WF 10×-18 mm | ● | ●● |
WF 10×-18 mm(adjustable,Reticule 0.1 mm) | ○ | ● | |
Metallurgical LWD Infinity Plan Objectives | LPL 5×／0.13 W.D=16.04mm | ● | ● |
LPL 10×／0.25 W.D=18.48mm | ● | ● | |
LPL 20×／0.40 W.D=8.35mm | ○ | ○ | |
LPL 50×／0.70 W.D=1.95mm | ● | ● | |
LPL 80×／0.80 W.D.= 0.85mm | ○ | ○ | |
LMPlan FL 100×／0.85(Dry) W.D=3.0mm | ○ | ○ | |
Binocular Head | Inclined 45º | ● | |
Monocular Head | Inclined 45º | ● | |
Nosepiece | Quadplex | ● | ● |
Mechanical Stage | Size: 180×180mm，Travel Range: 30×30mm， Round slide size：φ110mm | ● | ● |
3W-LED llumination | Input voltage：100V～240V | ● | ● |
Filters | Blue, Green, Grey | ● | ● |
Micrometer | Division 0.01mm | ○ | ○ |
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.
Packing Size: 437mm×268mm×522mm Gross Weight: 8 kgs Net Weight: 7 kgs

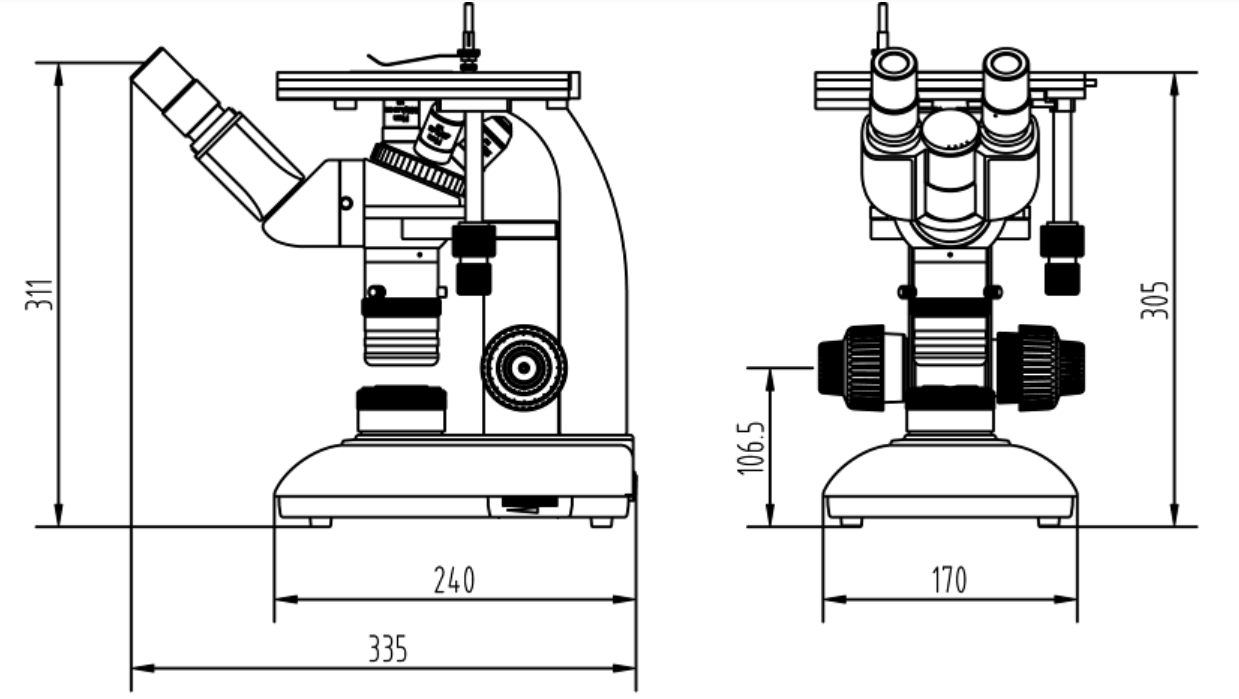

● MDJ Inverted Metallurgical Microscope Size（mm）
