MDS300 Inverted Metallurgical Microscope

Item

Specification

MDS300T

Eyepiece

WF10X/20mm (High eye-point)

●

WF10X/20mm (High eye-point, adjustable Focus,Reticule 0.1mm)

●

Metallurgical LWD Infinity

Plan Objectives

LPL    5×／0.15

W.D=15.0mm

●

LPL  10×／0.25

W.D.= 18.17mm

●

LPL  20×／0.40

W.D.= 8.7mm

●

LPL 50×／0.75

W.D.= 2.55mm

●

LPL 80×／0.80

W.D.= 0.85mm

○

LMPlan FL 100×／0.85(Dry)

W.D.= 3.00mm

○

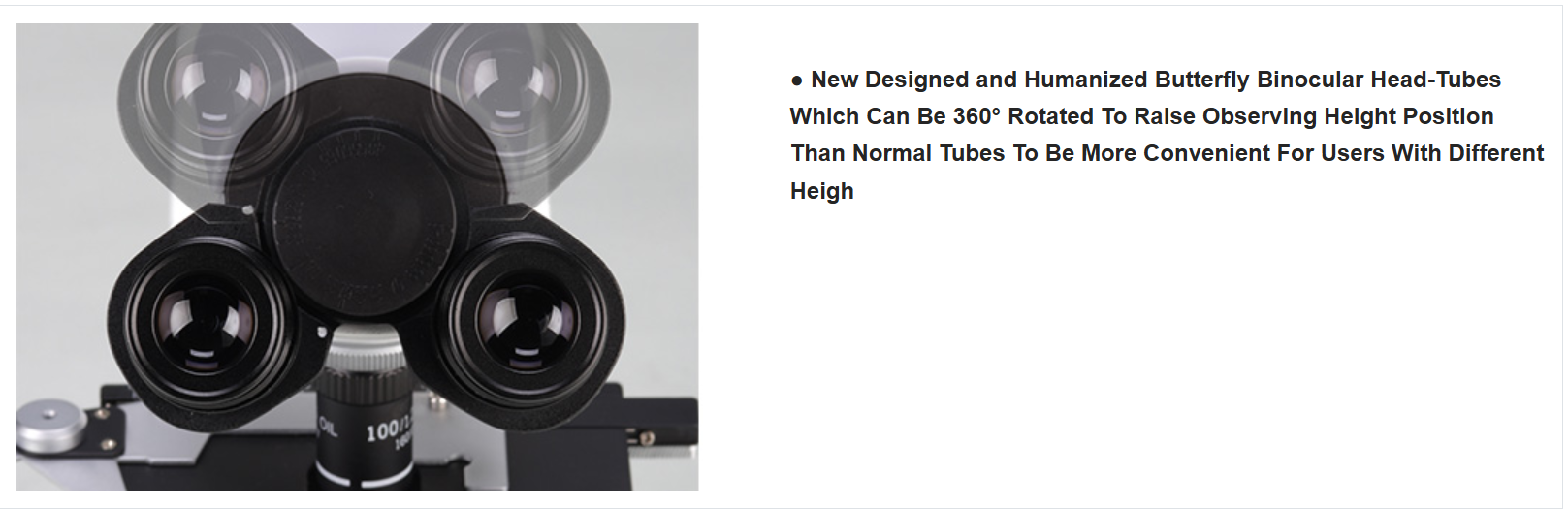

ButterflySiedentopf Head

Eyepiece tube 360°rotated,

Inclined45°,

IPD: 48-75mm,

Light distribution: 70:30（70% for eyepiece,and 30% for camera tube）

●

Nosepiece

Quadplex

●

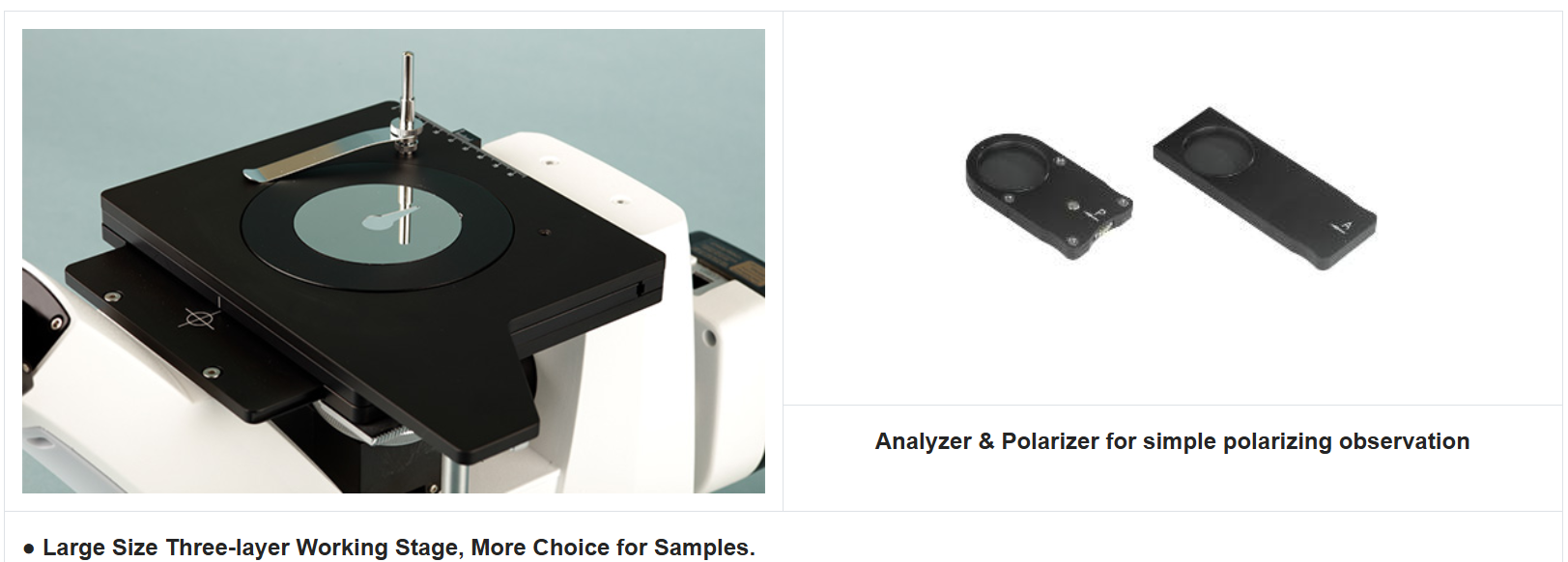

Mechanical Stage

Stage size: 180 mm×155mm,

Moving range:75×40mm , Scale : 0.1mm,

Round slide size：φ110mm

●

Coaxial Coarse and Fine Focusing unit

Coarse stroke: 10mm,

Fine stroke per rotation: 0.2mm, fine division 2 μm.

●

Polarizing Unit

Polarizer /Analyzer

●

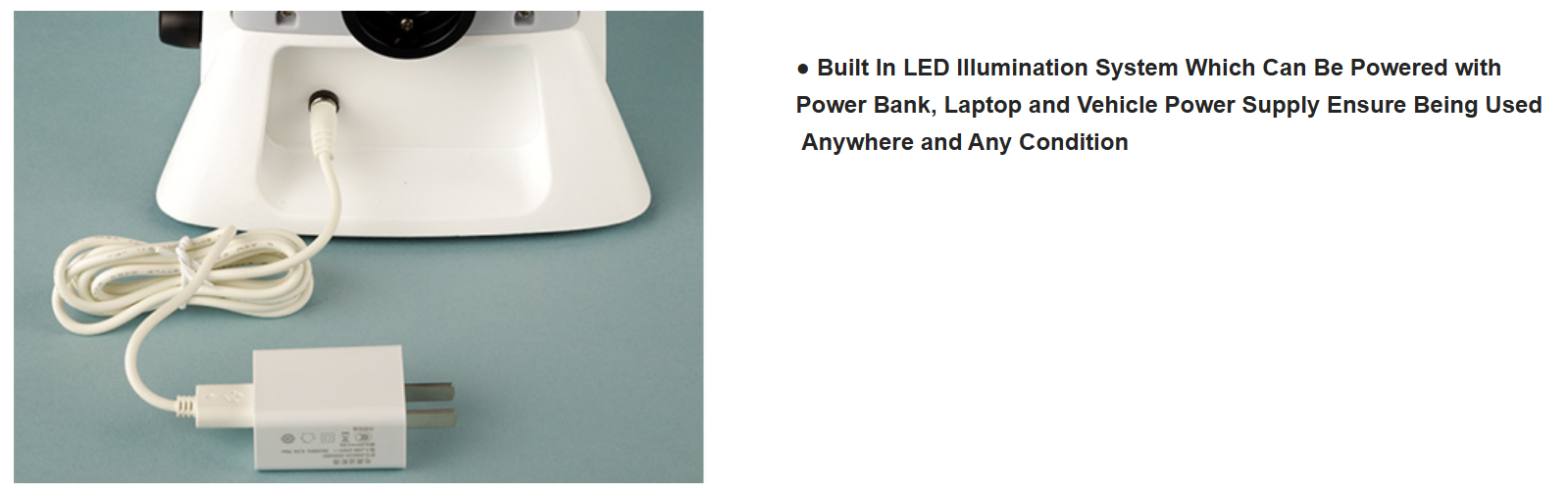

llumination

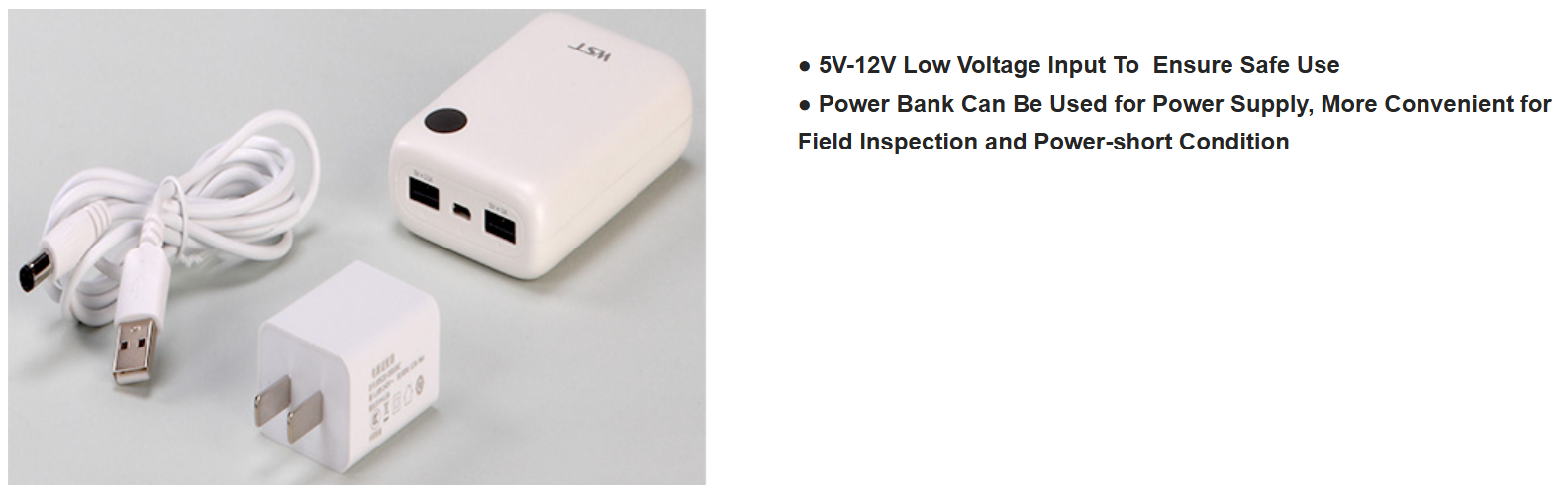

5WLED Warmlamp (Input voltage：100V～240V)

●

Filter

Grey

●

C-mount

0.65×C-Mount (built-in)

●

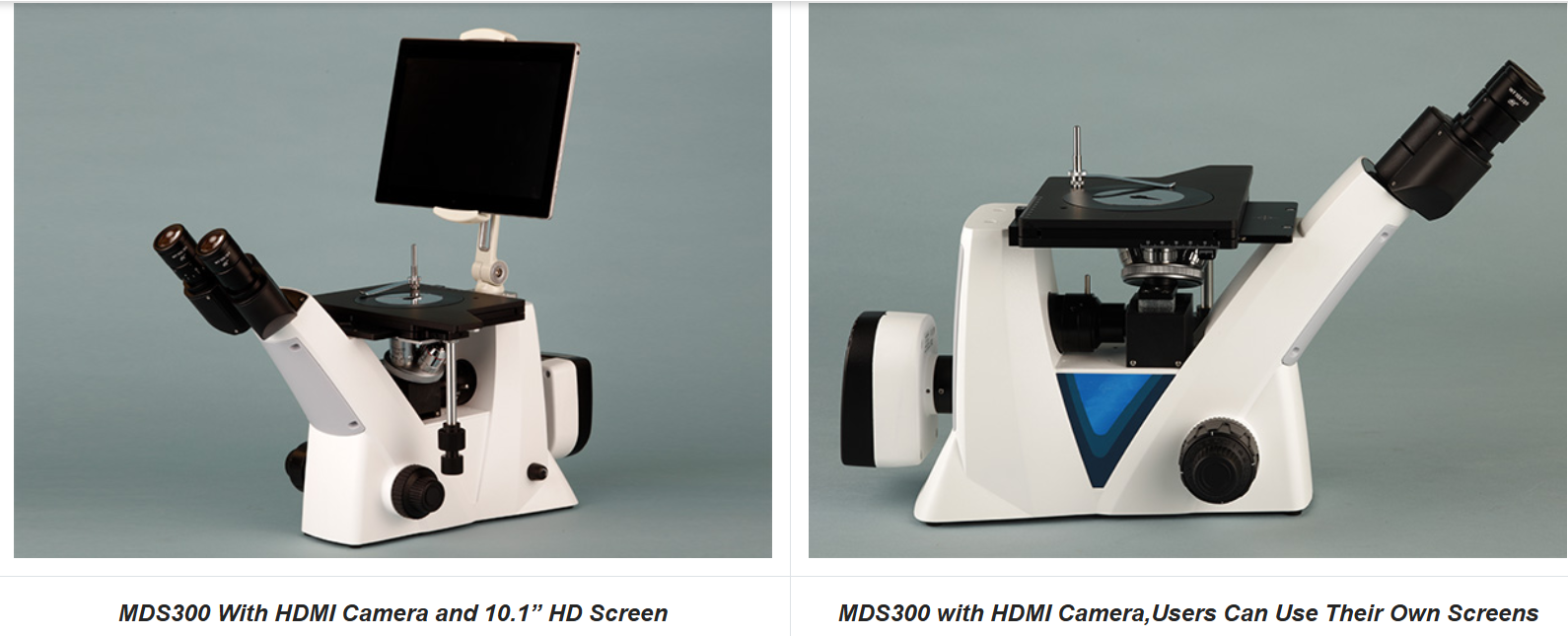

Universal Holder for HD Screen

○
