MDS400 Inverted Metallurgical Microscope

Item

Specification

MDS400

MDS400D

Eyepiece

WF10×／22mm（adjustable）

●

●

WF10×／22mm（adjustable，reticule 0.1mm）

●

●

Metallurgical LWD Infinity

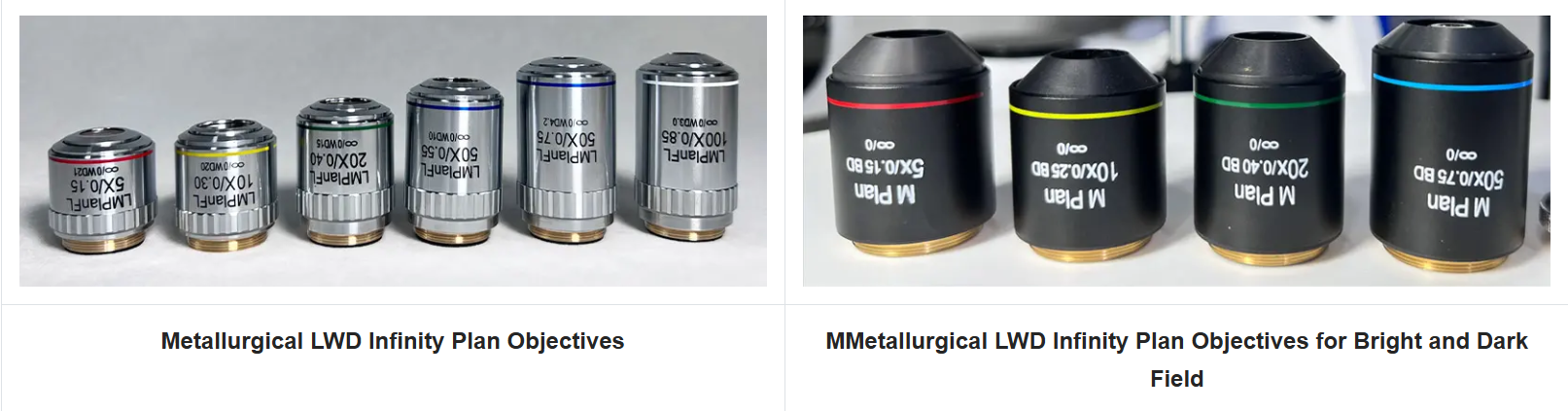

Plan Objectives

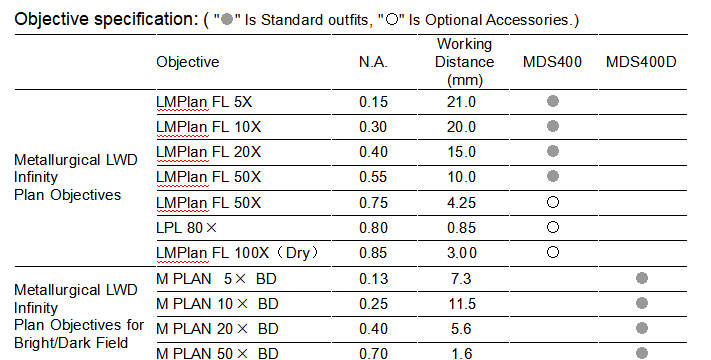

LMPlan FL   5×／0.15

W.D=21.0mm

●

○

LMPlan FL  10×／0.30

W.D.=20.0mm

●

○

LMPlan FL  20×／0.40

W.D.=15.0mm

●

○

LMPlan FL  50×／0.55

W.D.= 10.0mm

●

○

LMPlan FL  50×／0.75

W.D.= 4.25mm

○

○

LPL 80×／0.80

W.D.= 0.85mm

○

○

LMPlan FL 100×／0.85(Dry)

W.D.= 3.00mm

○

○

MetallurgicalLWD Infinity

Plan Objectives for  Bright & Dark Field

M PLAN  5×／0.13 BD

W.D=7.3mm

●

M PLAN 10×／0.25 BD

W.D.= 11.5mm

●

M PLAN 20×／0.40 BD

W.D.= 5.6mm

●

M PLAN 50×／0.70 BD

W.D.= 1.6mm

●

Seidentopf Trinocular Head

Inclined45°, interpupilary distance: 48-76mm

Light distribution (both):100: 0（100% for eyepiece）

80:20（80% for trinocular head,and 20% for eyepiece）

●

●

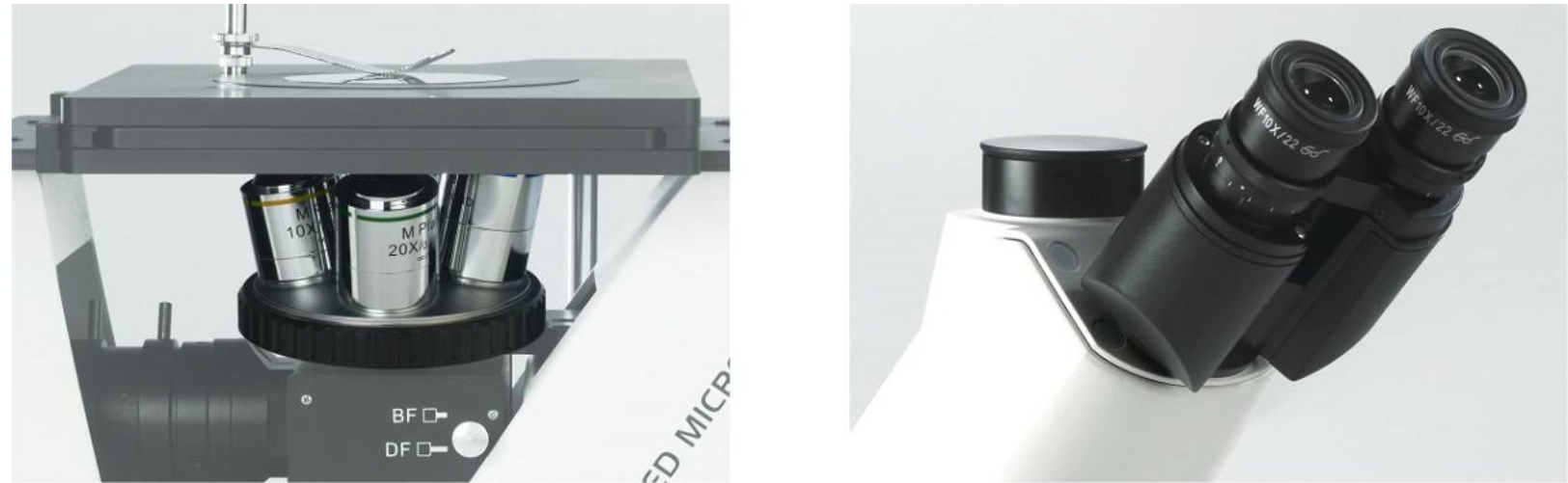

Nosepiece

Quintuple

●

Quintuple

（specially for bright /dark field objectives M26x1/36"）

●

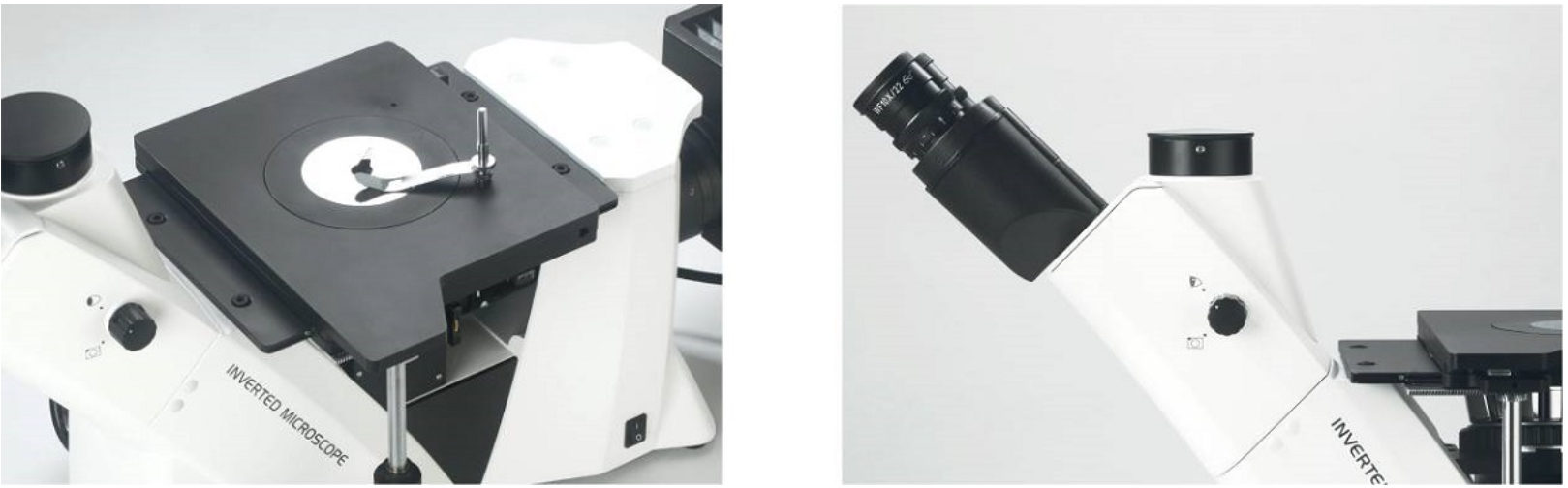

Mechanical Stage

Stage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm

●

●

Coaxial Coarse and Fine Focusing unit

Coarse stroke: 10mm,

Fine stroke per rotation: 0.2mm, fine division 2 μm.

●

●

Polarizing Unit

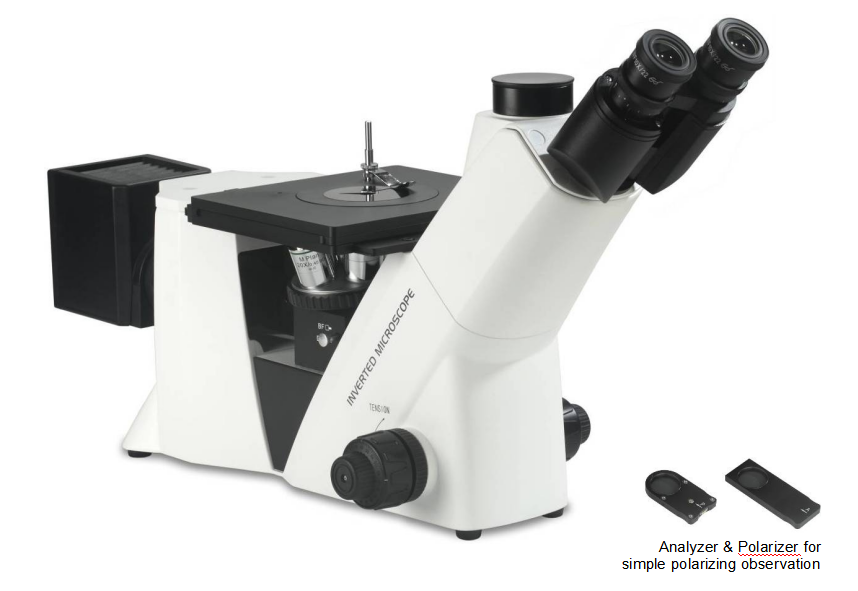

Polarizer /Analyzer

●

●

llumination

12V/50W Halogen（Input voltage：100V～240V）

●

●

5WLED lamp (Input voltage：100V～240V)

○

○

Auto power on-off system

Power off automatically upon user leaving 10 minutes, power on automatically upon user approaching

○

○

Filter

Blue

●

●

Green/ Amber/ Grey

○

○

C-mount

1×/0.75×/0.5×/0.35×C-Mount (focus adjustable)

○

○

Adaptor for Digital Photograph

Use for CANON／NIKON／OLYMPUS etc.

○

○
