SCOPEPAD-B Android Touch Screen Camera 5.0MP Tablet Digital Microscope Camera with 9.7 inch IPS LCD Screen Android Tablet Pad

    Quantity:
    Contact Now
    Scopepad-B
    minimum order:
    1 piece
    Country of Origin:
    NINGBO ,SHANGHAI
    • Warranty:1years
    • Customized support:OEM, ODM, OBM
    • Place of Origin:Zhejiang, China
    • Brand Name:Vanco
    • Model Number:Scopepad-B
    • Theory:Video Microscope
    • Sensor:1/2.5"
    • Effective pixel:5M
    • screen size:9.7"
    • Resolution:2048*1536@15Fps
    Product Information

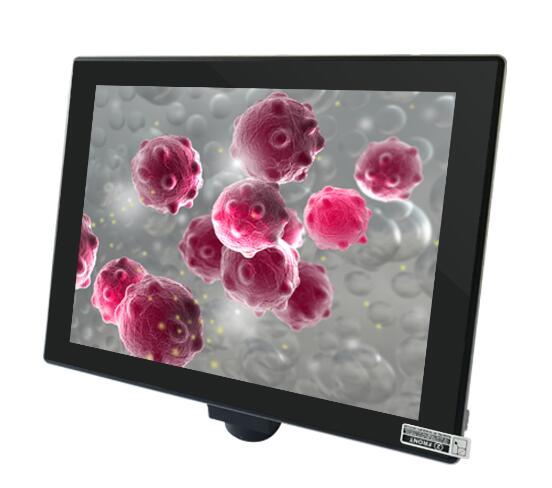

    Scopepad-B 5MP 9.7"microscope touch screen pad

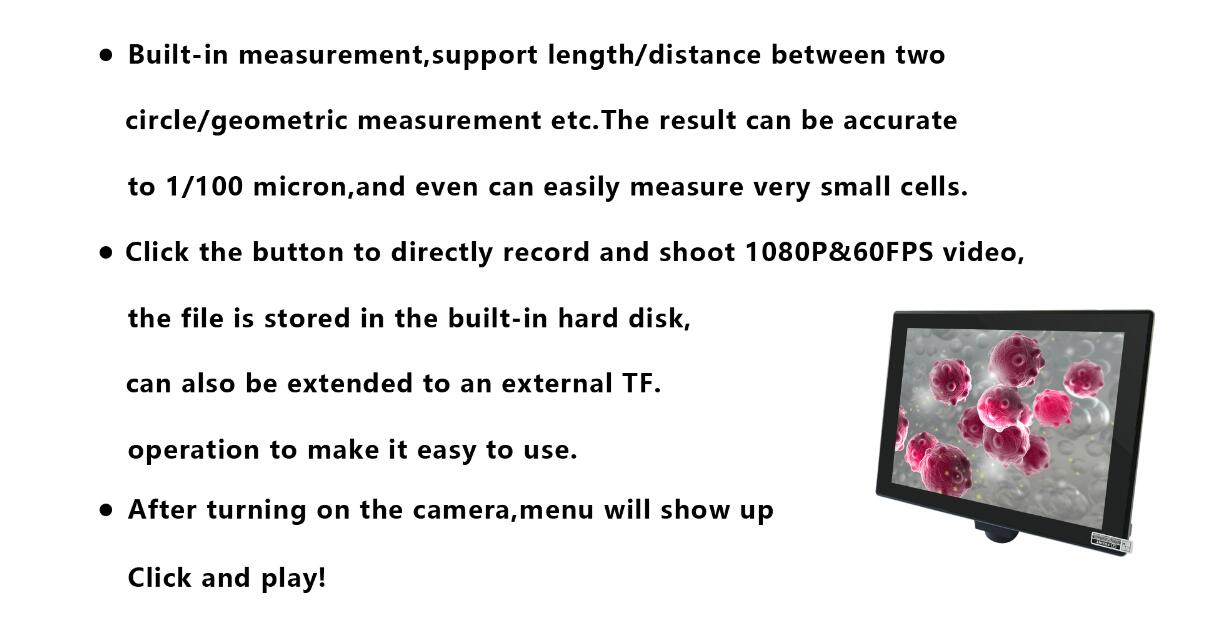

    -Built-in measurement,support length/distance between two circle/geometric measurement etc.The result can be accurate to 1/100
    micro and even can easily measure very small cells
    -Click the button to directly record and shoot 1080P&60 fps video,the file is stored in the built-in hard disk,can also be
    extended to an external TF.
    -After turning on the camera,menu will show up Click and Play .

    Spec.
    Model
    SCOPEPAD-B
    Category
    All in one Android5.1 table camera
    Sensor
    1/2.5”
    Effective pixel
    5M
    Screen
    9.7”, Resolution 2048*1536@15Fps retina screen
    Operation system
    Android 5.1.1 version
    Wifi
    2.4GHz/5GHz dual bands WIFI support 802.11a/b/g/n/ac protocol
    Bluetooth
    Bluetooth 4.0
    Output
    USB2.0, HDMI, WIFI, TF card
    Pixel size
    2.2um*2.2um
    Power
    DC-12V/2A
    Function
    Basic function
    Brightness, Contrast, Saturation, White balance
    Image adjustment
    Exposure, Sharpness, Gamma, Color temperature
    Camera function
    Mirror, Flip
    UI interface
    Support mouse and touch control
    Image/Video
    Support 16M image capture, support 1080P video
    Storage function
    Image capture, Video, Preview, SD card formatting
    Labeling function
    Point coordinates, cross lines, coordinate systems, text annotations
    Length measurement
    Line length, Broken line length, Curve length, Parallel lines distance, Point line distance.
    Geometric measurement
    Line length, radius defining circle, two point defining circle, three point defining circle, concentric circles
    The geometric area
    Polygon, square
    Measurement system
    Built in S-EYE
    Package

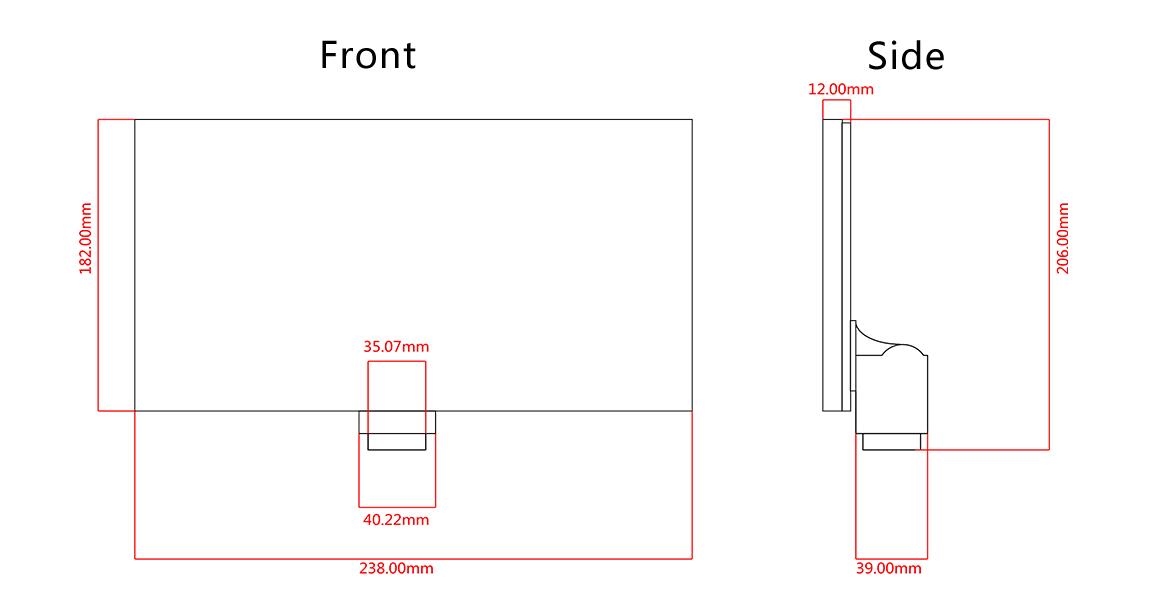

    Size
    238.00*51.00*206.00mm
    Weight
    0.6kg
    Accessory
    DC-12V/2A POWER

    Product Show



    Product Classification


    Company Profile

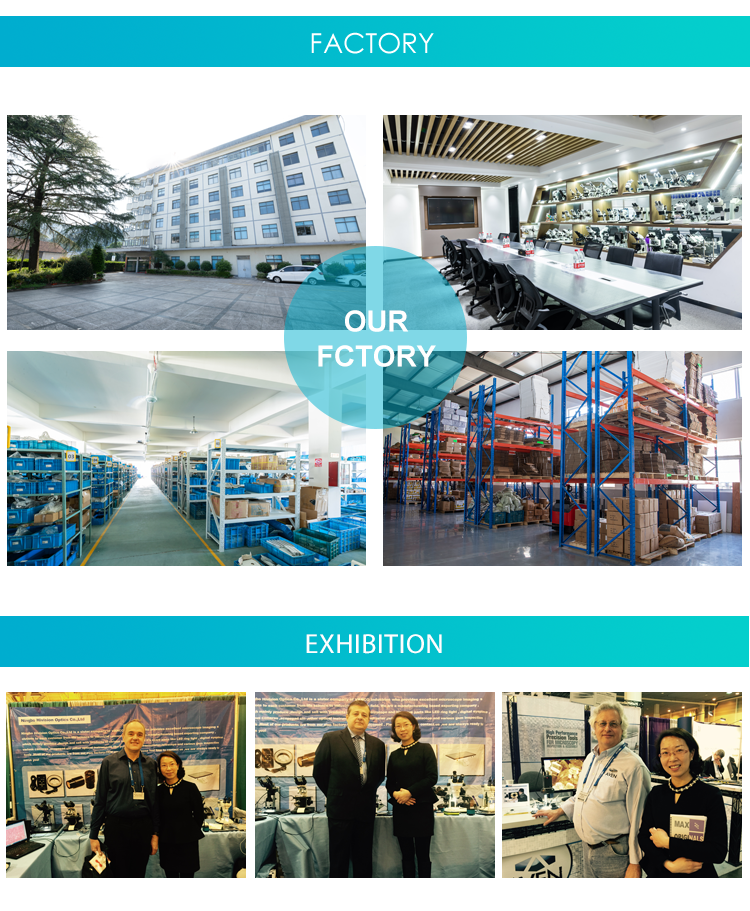

    Factory


    Our Certificate


    Transport&Payment


    FAQ

    .
    FAQ
    1. who are we?
    We are based in Ningbo Zhejiang, China, start from 2011,sell toNorth America(15.00%),South America(10.00%),MidEast(5%),Africa
    （5%）Europe(40%),Eastern Asia(5%),South Asia(15%),Southeast Asia(10%）

    how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Microscope,Microscope Accessories,physical instrument ,gem inspection instrument , solar-energy outdoor light etc

    4. why should you buy from us not from other suppliers?
    our is a company with R&D,Manufacture,quality and Marketing Department; we mainly focus on Microscope&tool for more than 10
    years,we also accept OEM/ODM orders, We cooperate with more than 50 reliable partners for years for one-stop shopping .

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,

    Accepted Payment Currency:USD,CNY,
    Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash
    Language Spoken:English,Chinese,various language online writing is okay
