Smart Series Biological Microscope

Quantity:
Contact Now
Smart
● Excellent OTICS infinity optical system, outstanding resolution and definition.

● Original integrated stand for excellent stability.

● Unique aspheric illumination system, provide bright and comfortable lighting.


Performance characteristics:

● Excellent OTICS infinity optical system, outstanding resolution and definition.

● Original integrated stand for excellent stability.

● Unique aspheric illumination system, provide bright and comfortable lighting.

● Various colorful matching looking can provide lively environment and happy mood.

● Various accessories for upgrading.

● Back handle and observing hole convenient for carry and operation.

● Alternative color for main body.



SMART Series Biological Microscope Outfits

Items

Specification

SMART

-1

SMART

-2

SMART

-3

SMART

-4

Eyepiece

WF 10X-18mm

●●

WF 10X- 20mm

●●

●●

●●

Finity Achromatic

Objective

4X

●

10X

●

40X(S)

●

100X/1.25 (Oil) (S)

●

Finity  Plan

Objective

4X

●

10X

●

40X/0.65 (S)

●

100X/1.25 (Oil) (S)

●

Infinity E-Plan

Objectives

4X

●

10X

●

40X (S)

●

100X (Oil) (S)

●

Infinity Plan

Objectives

4X

●

10X

●

40X (S)

●

100X (Oil) (S)

●

Plan 20X

○

○

Plan 60X (S)

○

○

Seidentopf Binocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance 48-75mm

●

●

●

●

Seidentopf

Trinocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance 48-75mm,

Light Distribution 20:80

○

○

○

○

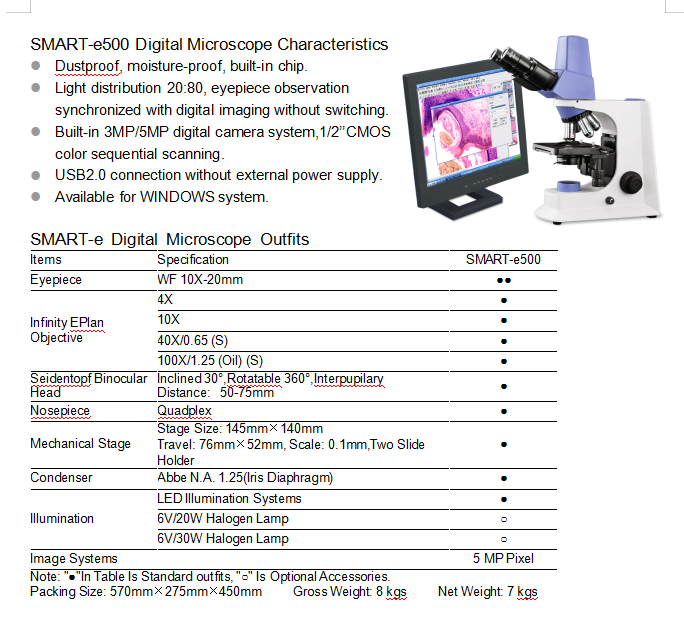

5 MP Pixel DigitalHead

1/2’’CMOS color sequential scanning. SB2.0

Light Distribution: 20:80

○

○

○

○

Nosepiece

Quadplex , Quintuple (Optional)

●

●

●

●

Mechanical Stage

Stage Size: 145 mm×140mm

Travel: 76mmX52mm, Scale: 0.1mm

Coaxial Coarse and Fine Focusing Knobs

Travel Range: 26mm, Scale: 2um

Two Slide Holder

●

●

●

●

Rackless(Integrated) stage,

size:140×135mm,Travel range: 75×35mm,
Two-slide holder

○

○

○

○

Condenser

Abbe N.A. 1.25(Iris Diaphragm)

●

●

●

●

Illumination

3W-LED Illumination Systems

●

●

●

●

12V/20W Halogen Lamp

○

○

○

○

6V/30W Halogen Lamp

○

○

○

○

Field Diaphragm

○

○

○

○

Dark Field Condenser

Dry, apply to 4X - 40X objective

○

○

○

○

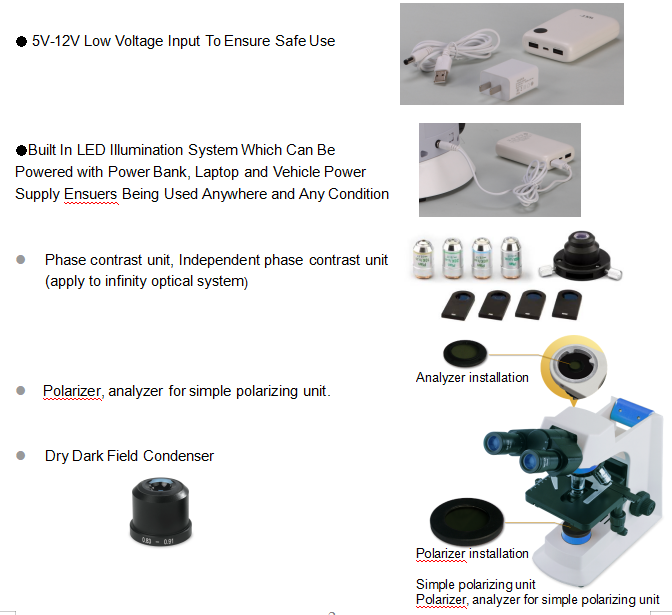

Polarizing Attachment

Analyzer/Polarizer

○

○

○

○

Independent

phase contrast unit

10X /20X /40X /100X

○

○

Fluorescence

Attachment

Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.

○

○

Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp.

○

○

Filter

Blue/Green/Yellow

○

○

○

○

C-Mount

1X/ 0.5X/0.75X （Focus adjustable）

○

○

○

○

Mirror

○

○

○

○

Wire winding device

○

○

○

○

Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.

Packing Size: 390mm×280mm×450mm     Gross Weight: 7.5 kgs     Net Weight: 6.5 kgs
