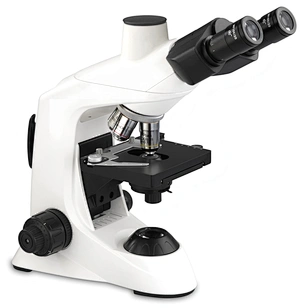

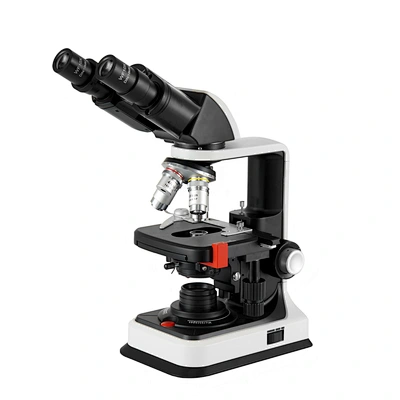

New Generation Biological Microscope with viewing Head for Education and Clinic

Viewing Head

Seidentopf Binocular Head，Inclined at 30º,pupil   distance 50mm-75mm

Eyepiece

WF10X/22mm

Objective

Infinite plan objective 4X10X40X100X

Stage

Platform size:140MMX120MM    Moving range:80MMX50MM

Condenser

N.A.1.25 Swinging Abbe condenser with variable light bar

Focusing

Coarse and micro coaxial focusing,using rack and pinion drive
mechanism micro grid value 0.002mm

Light Source

Up/down lighting:LED light 5W,DC12V2A brightness can be adjusted

lluminatoi

High brightness fixed lighting with dimmer bar

Filter

Insert plate filter(green,blue,neutral)polarizer

Checking Tool

0.01mm micrometer

1.3 million,3 million,5 million,10 million pixel CMOS electronic
eyepieces

Trinocular head

photography device and CCD interface 0.3X,0.4X
