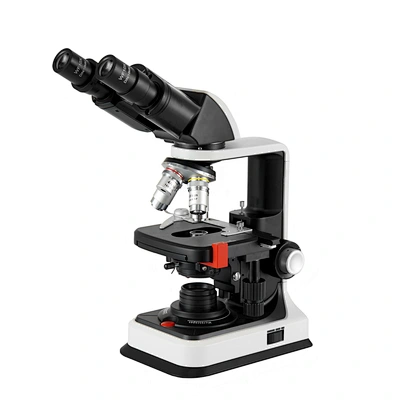

New Generation Biological Microscope with viewing Head for Education

Quantity:

Contact Now

VBM200

Viewing Head: Binocular Head or Trinocular Head
Eyepiece: WF10X/18mm. Other for option
Objective: Finite plan objective 4X10X40X100X

Specification:

Biological Microscope		VBM200
Head	Binocular Head,45° inclined,360° Rotatable, Interpupillary Distance 48-75mm	●
Head	TrinocularHead,45° inclined,360° Rotatable, Interpupillary Distance 48-75mm	Optional
Eyepiece	WF10X/18mm,Insert Diam23.2mm	●
	WF10X/20mm,Insert Diam23.2mm	Optional
	WF16X/13mm,Insert Diam23.2mm	Optional
	WF25X/8mm,Insert Diam23.2mm	Optional
Objective	Achromatic 4X	●
	Achromatic 10X	●
	Achromatic 40X, Spring	●
	Achromatic 100X, Spring,Oil	●
Nosepiece	Quadruple Revolving Nosepiece	●
Stage	Double Layer Mechanical Stage,Size110mmx120mm,Moving Range :70mmx30mm	●
	Rackless Stage 125mmx115mm,Moving Range :70mmx30mm	Optional
Focusing	Coaxial Coarse and Fine Focusing	●
Condenser	ABBE N.A.1.25Condenser with Iris Diaphragm & Filter	●
Filter	Light Blue Filter	●
Light source	1W LED, with Rechargeable Battery, Type C USB cable Note: if shipped by air, Battery not be offered with goods	●
